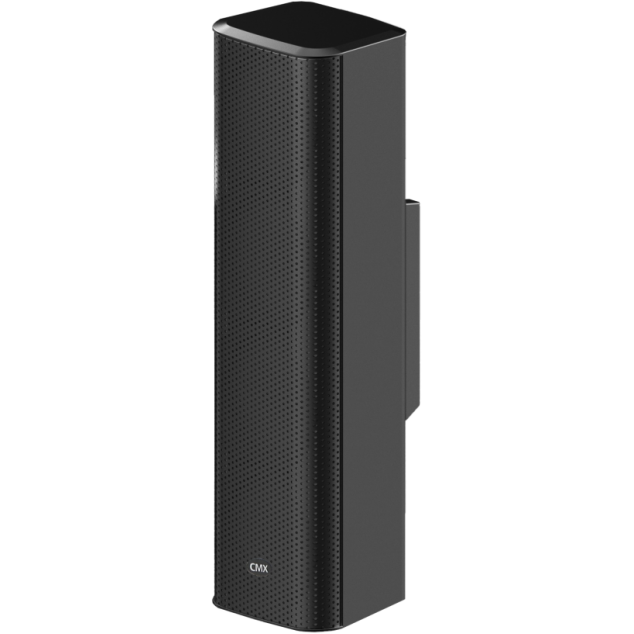

LAS-504C – 4x5" Passive Line Array Column Speaker
The LAS-504C is a premium passive line array column speaker designed for professional audio in both live and fixed installations. Compact and weatherproof with a sleek design, it delivers powerful, focused sound where traditional systems fall short.
-
High Clarity Audio: 4 x 5" full-range drivers with 80Hz–20kHz frequency response.
-
Power Handling: 100W @ 8Ω, 80W @ 100V; 150W (600W peak) for 2-hour usage.
-
Wide Coverage: Horizontal 150° x Vertical 20° dispersion for uniform sound distribution.
-
Durable Build: Fiberglass-reinforced ABS cabinet with painted aluminum grille, IP55 rated for indoor/outdoor use.
-

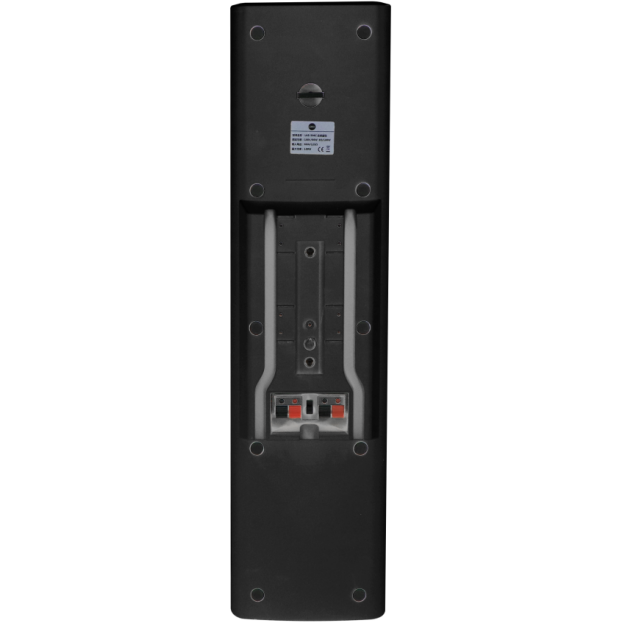

Mounting Included: Swivel pan/tilt wall bracket for flexible installation.
Specifications:
-
Model: LAS-504C | Drivers: 4 x 5" Full-Range
-
Input: 80W (100V), 100W (8Ω) | Max SPL: 115dB speech, 111dB music
-
Sensitivity: 95±1dB | Frequency Response: 80Hz–20kHz
-
Enclosure: IP55 ABS cabinet, aluminum grille
-
Dimensions: 160 x 180 x 600 mm | Weight: 5.7 kg
Package Includes: LAS-504C Speaker, Wall Mount Bracket, User Manual
