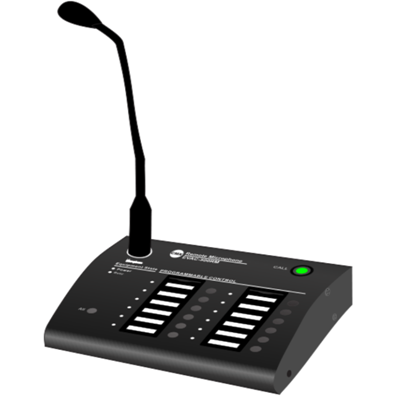

CMX EVAC-500RM EN54-16 Remote Paging Microphone, 12-Zone Control, Expandable to 120 Zones, CAT6 Connection, 24V DC, EVAC-500 Compatible

Description

The CMX EVAC-500RM is a professional remote paging microphone designed for the CMX EVAC-500 voice evacuation and public address system. It provides clear live announcements to individual zones, selected groups, or all zones, making it ideal for commercial buildings, hospitals, airports, hotels, and emergency communication installations. Featuring 12-zone control, expandable operation up to 120 zones, redundant CAT6 connectivity, and real-time system monitoring, it delivers reliable and flexible paging management.

Key Features

• Brand: CMX Audio.
• Model: EVAC-500RM.
• Product Type: Remote Paging Microphone / Call Station.
• Standard: EN54-16 Voice Alarm Control and Indicating Equipment.
• Compatibility: CMX EVAC-500 Voice Evacuation System.
• Zone Capacity: 12 zones with individual selection buttons.
• Expandable Zones: Up to 120 zones using EVAC-12KD expansion keypads.
• System Capacity: Supports up to 32 remote microphones.
• Paging Modes: Individual zone, group zone, and all-zone announcements.
• Microphone Operation: Push-to-Talk (PTT) and locking talk modes.
• Status Indicators: LED indicators for microphone operation and zone activity.
• System Monitoring: Real-time microphone supervision.
• Connectivity: Shielded CAT6 cable with RJ45 connectors.
• Connection Type: Redundant communication loop.
• Communication Distance: Up to 600 meters.
• Power Supply: DC 24V ±20%, supplied by the EVAC-500 controller.
• Power Consumption: 3W.
• Line Input: 350mV, 10kΩ.
• Microphone Input: 5mV, 600Ω.
• Frequency Response: 80Hz–16kHz.
• Signal-to-Noise Ratio: Greater than 70dB.
• Total Harmonic Distortion: Less than 1% at 1kHz.
• Operating Temperature: -20°C to +70°C.
• Operating Humidity: Below 95%, non-condensing.
• Dimensions: 153 × 52 × 195mm.
• Weight: 0.9kg.
• Applications: Public address systems, voice evacuation systems, airports, hospitals, shopping malls, hotels, schools, and commercial buildings.
