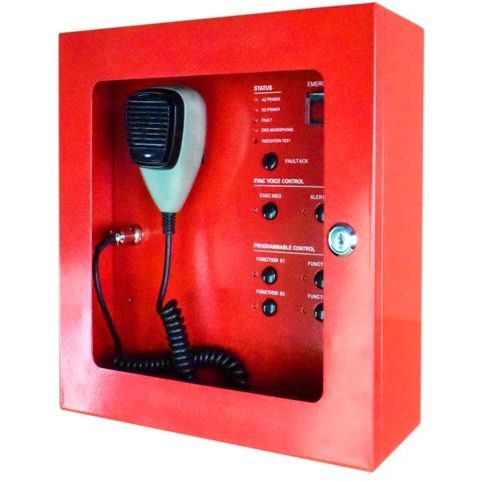

CMX EVAC-500FM EN54-16 Fireman Emergency Microphone, IP55 Weatherproof, 24V DC, CAT6 Redundant Connection, Wall Mount, EVAC-500 Compatible

Description

The CMX EVAC-500FM is a professional EN54-16 certified fireman's emergency microphone designed for the CMX EVAC-500 public address and voice evacuation system. It provides priority emergency announcements, prerecorded evacuation messages, and remote emergency control during fire alarms and other critical situations. Featuring programmable emergency buttons, real-time fault monitoring, redundant CAT6 connectivity, and an IP55-rated enclosure, it delivers reliable communication for emergency evacuation applications.

Key Features

• Brand: CMX Audio.
• Model: EVAC-500FM.
• Product Type: Fireman's Emergency Microphone.
• Certification: EN54-16 Voice Alarm Control and Indicating Equipment.
• Compatibility: CMX EVAC-500 Voice Evacuation System.
• Emergency Operation: Priority live announcements and prerecorded evacuation messages.
• Control Buttons: 4 programmable buttons with evacuation and alert controls.
• Emergency Activation: Dedicated button for all-zone evacuation.
• System Monitoring: Real-time microphone supervision and fault indication.
• Status Indicators: AC, DC, fault, microphone, and system status indications.
• Connection: Shielded CAT6 cable with RJ45 connectors.
• Network Redundancy: Redundant communication loop.
• Communication Distance: Up to 600 meters.
• System Capacity: Supports up to 32 fireman microphones per compatible system.
• Power Supply: 20–27.5V phantom power from the controller.
• Power Consumption: 3W.
• Frequency Response: 80Hz–16kHz.
• Signal-to-Noise Ratio: Greater than 70dB.
• Total Harmonic Distortion: Less than 1% at 1kHz.
• Protection Rating: IP55.
• Operating Temperature: -20°C to +50°C.
• Operating Humidity: Below 95%, non-condensing.
• Enclosure: Red stainless steel cabinet with ABS cover.
• Security: Lockable enclosure with key access.
• Installation: Wall-mounted design.
• Dimensions: 300 × 300 × 107mm.
• Weight: 3.85kg.
• Applications: Fire evacuation systems, hospitals, airports, hotels, shopping malls, schools, and commercial buildings.
