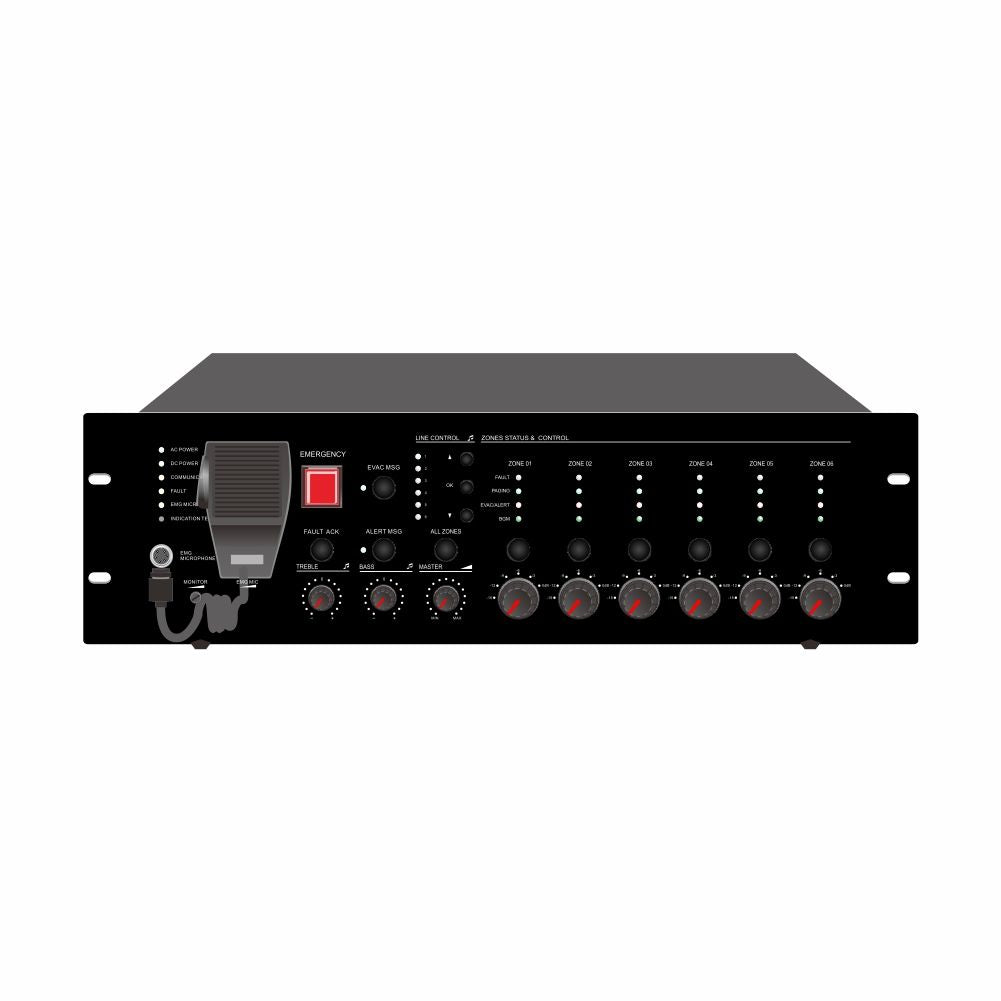

CMX EVAC-500 6-Zone Voice Evacuation Controller, 500W Amplifier, EN54-16 Certified, 100V Speaker Outputs, Fire Alarm Interface, DSP

Description

The CMX EVAC-500 is a professional 6-zone voice evacuation controller designed for public address, emergency broadcasting, and fire evacuation systems. Certified to EN54-16, it features a built-in 500W power amplifier, 6-zone 100V speaker outputs, DSP audio processing, and automatic emergency message broadcasting. With speaker line supervision, amplifier backup management, fire alarm integration, and remote monitoring capabilities, it provides reliable emergency communication for commercial buildings, hospitals, airports, and public facilities.

Key Features

• Brand: CMX Audio.
• Model: EVAC-500.
• Product Type: Digital Voice Evacuation Controller.
• Certification: EN54-16:2008 Voice Alarm Control and Indicating Equipment.
• Speaker Zones: 6 independent evacuation and paging zones.
• Built-in Amplifier: 500W rated output power.

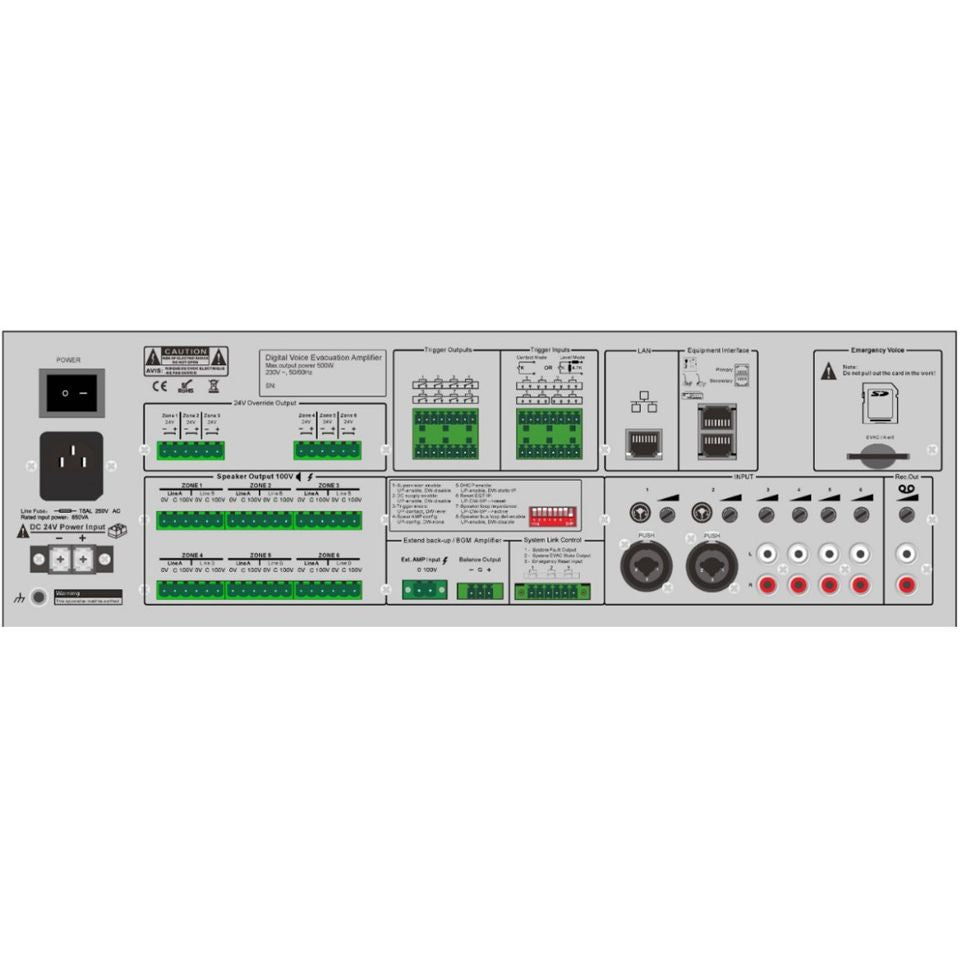

• Speaker Outputs: 6-zone 100V A/B speaker line outputs.
• Audio Processing: Integrated DSP for digital audio processing.
• Emergency Broadcasting: Automatic evacuation and alert messages to predefined zones.
• Voice Messages: Up to 256 programmable messages in MP3 or WMA format.
• Message Storage: SD card storage for evacuation alerts and business announcements.
• Audio Inputs: 2 balanced Combo XLR inputs and 4 RCA line inputs.
• Fire Alarm Integration: 8 supervised control inputs and 8 control outputs.
• Relay Outputs: Dedicated fault, reset, and evacuation relay outputs.
• Speaker Monitoring: A/B speaker line supervision for fault detection.
• Amplifier Backup: Automatic amplifier changeover and standby amplifier management.
• System Expansion: Supports up to 120 zones using compatible EVAC-500RT routers.
• Remote Microphones: Supports up to 32 EVAC-500RM paging microphones.
• Emergency Microphone: Compatible with EVAC-500FM fireman microphones.
• Touchscreen Paging: Supports compatible EVAC-500TM touchscreen microphones.
• Network Redundancy: Redundant CAT6 network loop connections.
• PC Management: Remote configuration, monitoring, and system programming software.
• Event Logging: Stores up to 1,000 system events and fault records.
• Frequency Response: 80Hz–20kHz.
• Signal-to-Noise Ratio: Greater than 70dB.
• Total Harmonic Distortion: Less than 1% at rated output, 1kHz.
• Power Supply: AC 115V/230V, 50/60Hz, with 24V DC input.
• Power Consumption: 650W.
• Operating Temperature: +5°C to +40°C.
• Dimensions: 484 × 132 × 405mm.
• Weight: 11.2kg.
• Applications: Airports, hospitals, hotels, shopping malls, schools, commercial buildings, and emergency evacuation systems.
