CMX DC-500Z 6-Zone Mixer Power Amplifier, 500W, USB/SD/FM & Bluetooth, 100V & 4–16Ω, 1U Rack-Mount
CMX DC-500Z 6-Zone Mixer Power Amplifier, 500W, USB/SD/FM & Bluetooth, 100V & 4–16Ω, 1U Rack-Mount
Regular price
380,000 IQD
Sale price
380,000 IQD
Regular price
Shipping calculated at checkout.
Available in stock

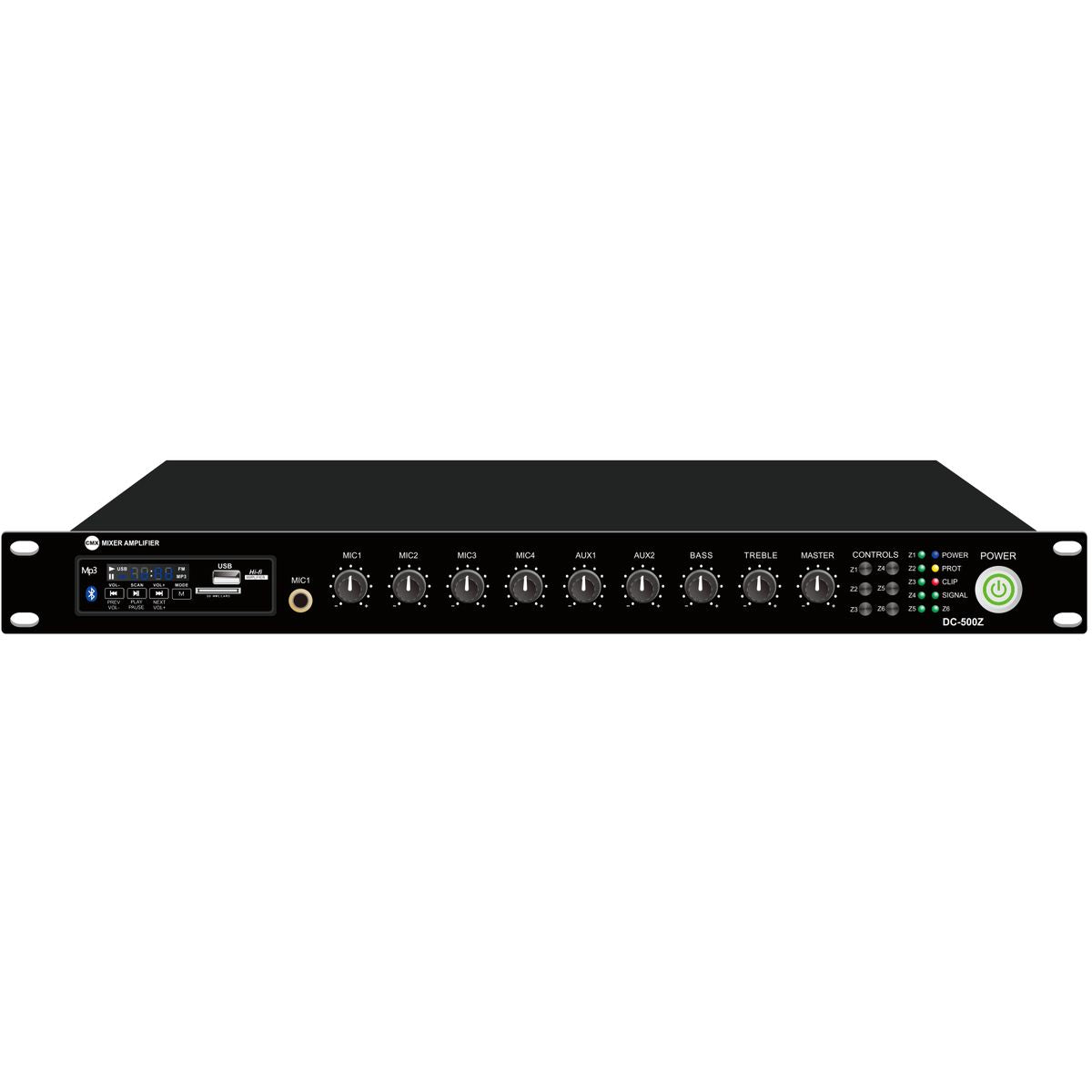

The CMX DC-500Z is a compact 1U, 500-watt commercial mixer amplifier built for multi-zone paging and background music. It combines USB/SD MP3, FM tuner and Bluetooth sources with six 100V speaker zones—each with its own volume—plus installer-friendly mic/line I/O and protection circuitry for dependable daily use.
- Six zones — Independent 100V zone volume control for flexible area coverage.
- Built-in sources — USB/SD MP3 player, FM tuner and Bluetooth streaming.

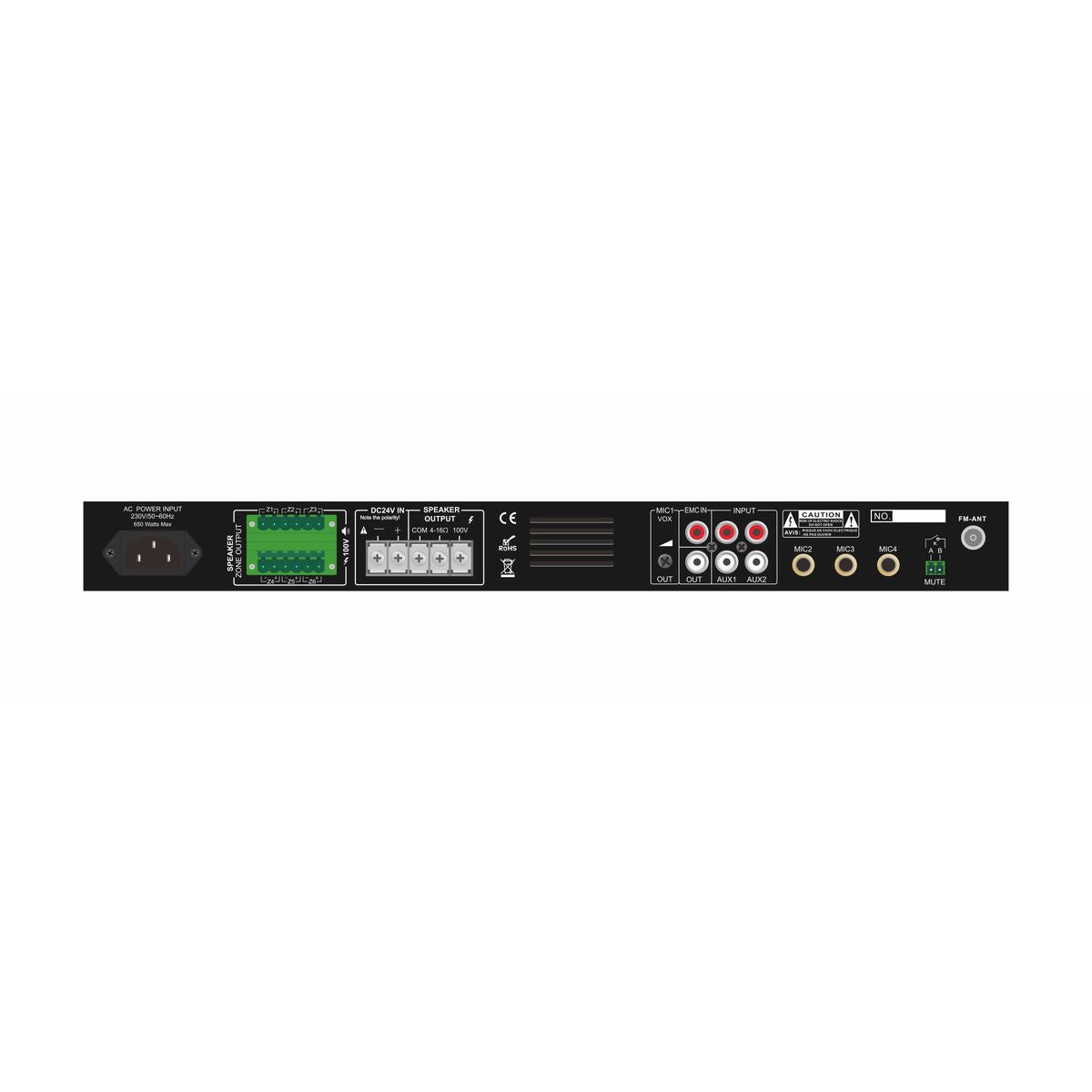

- Pro I/O — 4× mic inputs (Mic1 6.3 mm; Mic/Line 2–4 XLR) and 2× line inputs (RCA), plus EMC input.
- Versatile outputs — 100V constant-voltage and 4–16 Ω low-impedance speaker taps.
- Installer-ready — 1U 19″ rack design with overload/short/over-temp protections.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand / Model | CMX Audio / DC-500Z |
| Product Type | 6-Zone Commercial Mixer Power Amplifier |
| Rack Size | 19″, 1U |
| Rated Output Power | 500 W |
| Zones | 6 zones (independent volume control) |
| Speaker Outputs | 100 V line; 4–16 Ω |
| Built-in Sources | USB/SD MP3 player, FM tuner, Bluetooth |
| Microphone Inputs | 4 total — Mic1 (6.3 mm), Mic/Line 2–4 (XLR) |
| Line Inputs | Line 1–2 (RCA, rear) |
| EMC Input | RCA (rear), priority emergency input |
| Protections | Overload, short circuit, high temperature |
| Power | AC 230 V, 50–60 Hz |
