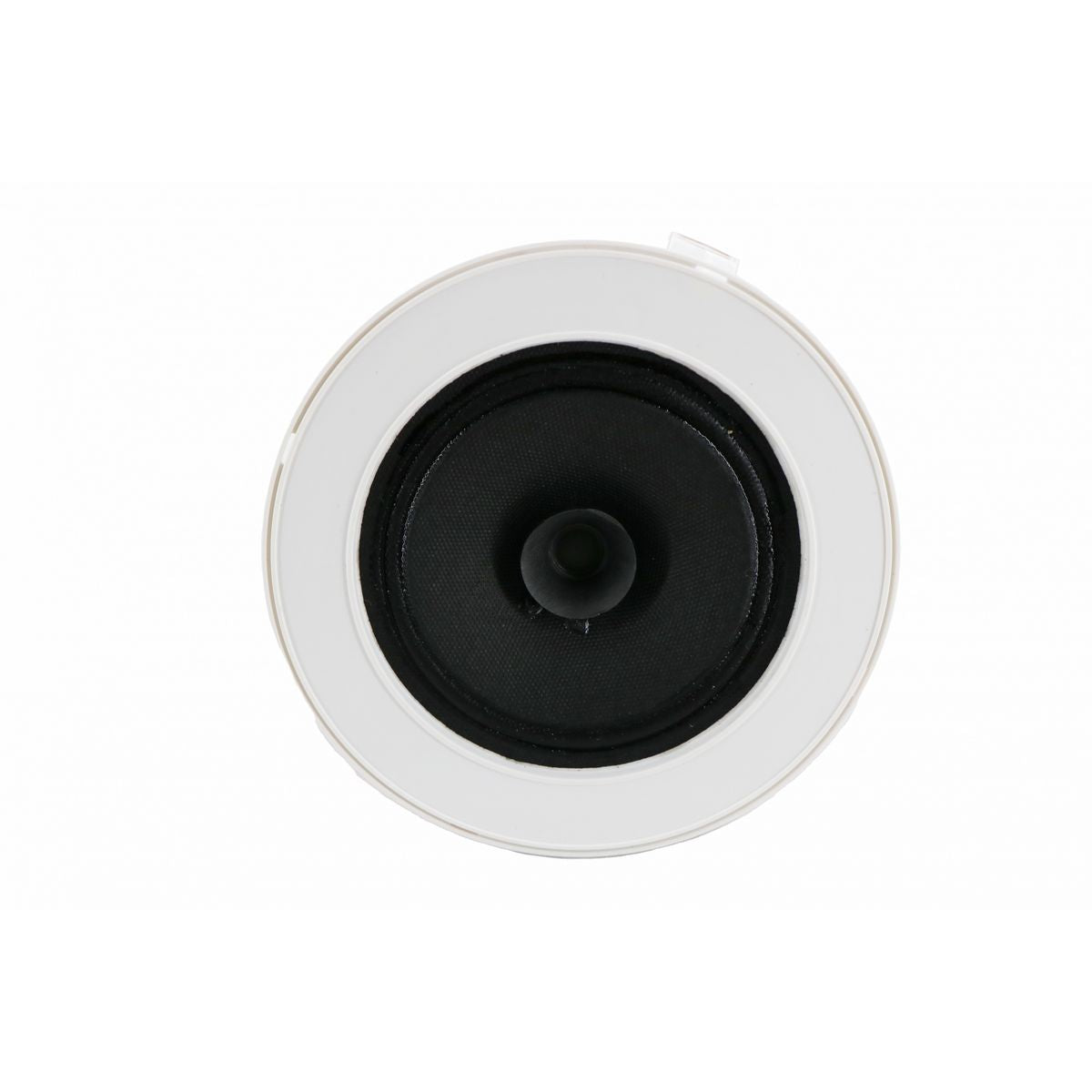

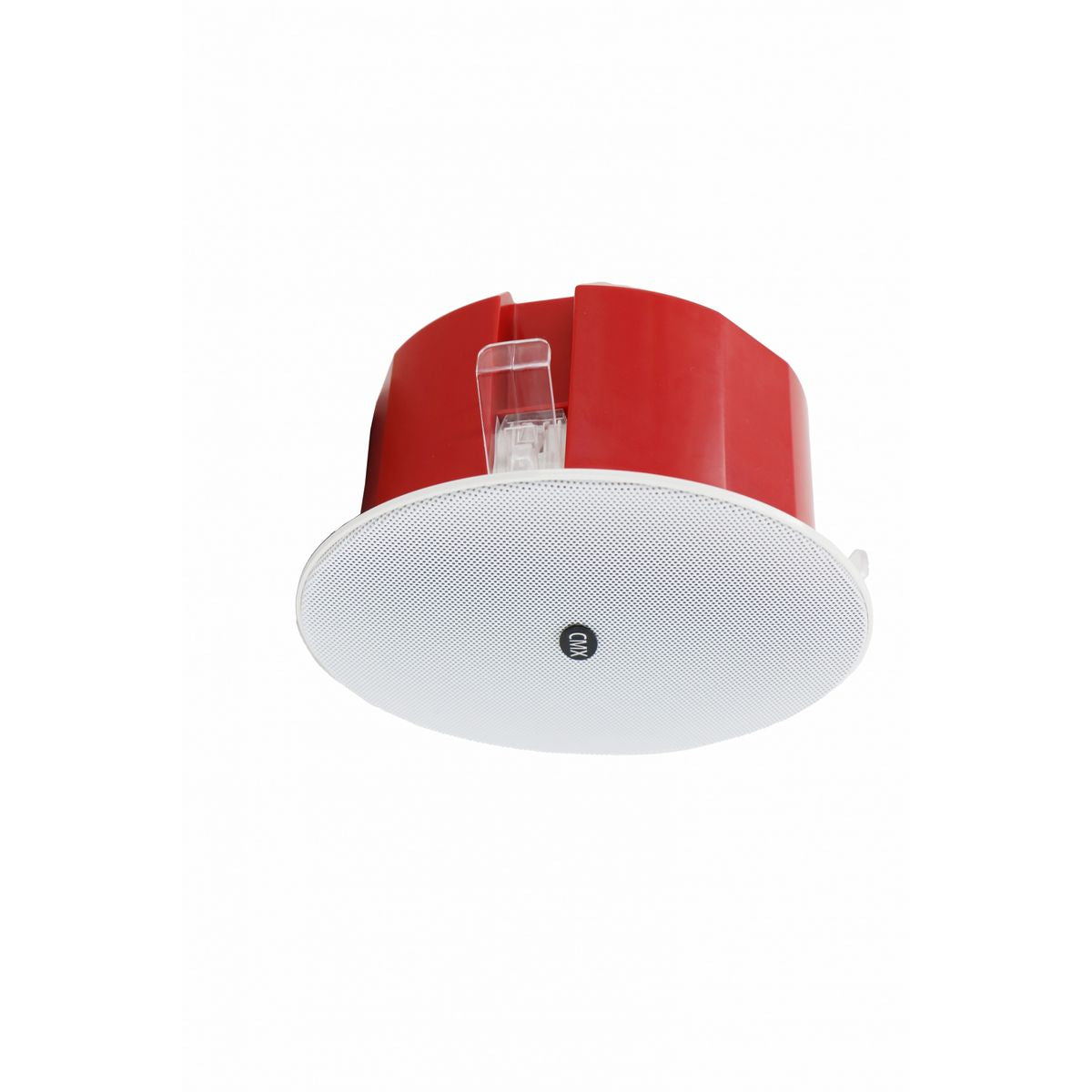

CMX CSK-56PC 5″ Ceiling Speaker with Back Box, 100V/70V, 6W/3W Taps, Dual-Cone
CMX CSK-56PC 5″ Ceiling Speaker with Back Box, 100V/70V, 6W/3W Taps, Dual-Cone
Available in stock
The CSK-56PC is a compact 5″ commercial ceiling speaker with an integrated back box and 100V/70V transformer—ideal for paging and background music in offices, retail, schools, and hospitals. Its dual-cone driver, efficient power taps, and quick spring-clip mounting make installs fast and consistent.
- Built-in 100V/70V transformer with 6W/3W taps for PA/BGM systems.
- Dual-cone 5″ driver tuned for clear voice and ambient music.

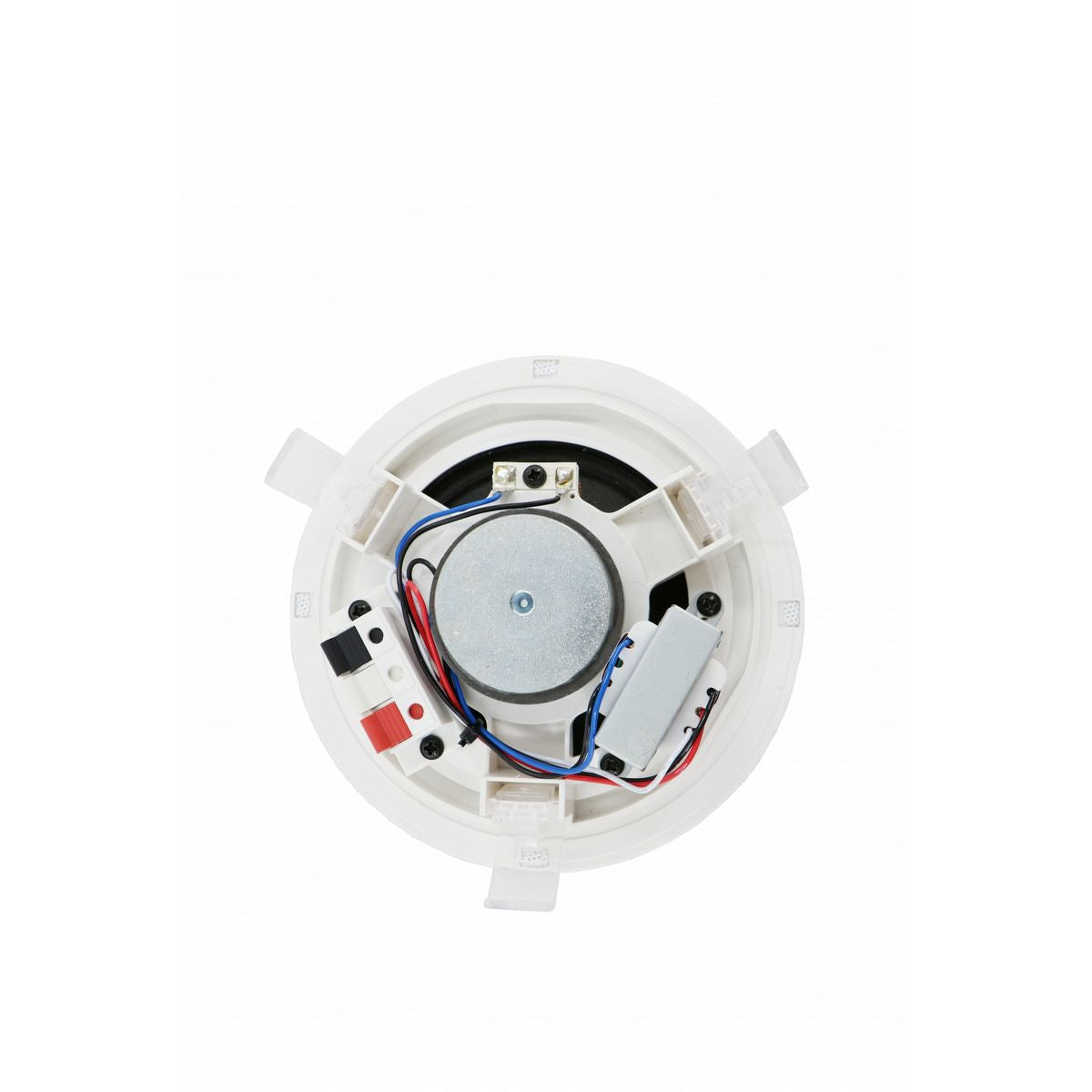

- Back box included for consistent acoustic performance and tidy wiring.
- Durable build: ABS enclosure with white metal grille for discrete installs.
- Quick install: Spring-clip mounting saves time across large projects.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand / Model | CMX Audio / CSK-56PC |
| Type | 5″ ceiling speaker with back box & built-in 100V/70V transformer |
| Power Taps (100V) | 6 W / 3 W |
| Driver | 5″ dual-cone speaker unit |
| Sensitivity (1W/1m) | 92 ± 2 dB |
| Frequency Response | 150 Hz – 15 kHz |
| Enclosure / Grille | ABS enclosure with back box; metal grille (white) |
| Mounting | In-ceiling spring-clip |
| Dimensions | Ø165 × 89 mm |
| Weight | ≈ 0.5 kg |
| Applications | Paging & BGM for offices, retail, schools, hospitals |
