A7G – 7" Android-Based In-Wall Touchscreen Amplifier for Smart Home Audio
The A7G is a powerful all-in-one in-wall amplifier featuring a 7" IPS touchscreen, Android 11 OS, and 8x30W stereo output with 2-zone audio control. Perfect for smart homes, hotels, offices, and commercial spaces, it combines Bluetooth, Wi-Fi, USB, FM, HDMI, and multi-room support in a sleek, flush-mount design. With support for AirPlay, DLNA, app control, and microphone input, the A7G is a premium audio hub for modern living spaces.
-
All-in-One Audio Hub: 8 x 30W stereo amplifier (8Ω) with 2-zone volume control—connect up to 8 speakers.
-
Android OS + App Control: Android 11.0 system with support for EShare and WiseLink apps for remote or multi-room control.
-

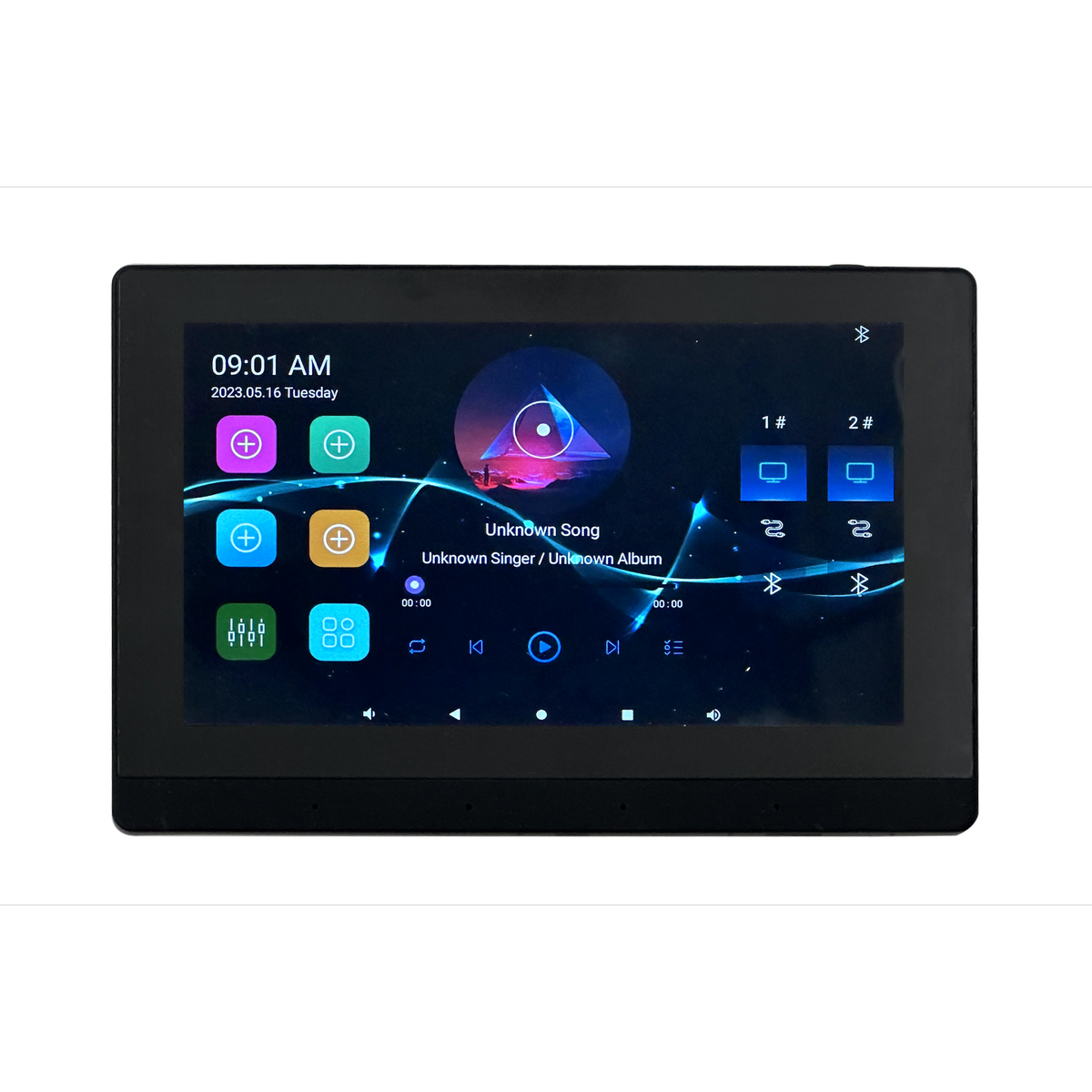

7” HD Touchscreen: 1024x600 IPS capacitive display for direct control and media playback (music, video, photos).
-
Wireless Connectivity: Built-in Wi-Fi and Bluetooth 5.0 for streaming and wireless device pairing.
-
Flexible Media Options: USB & TF card support, FM radio, HDMI output, and wired line input/output.
-
Multilingual UI: Supports English, Russian, German, and more languages for global compatibility.
-
Advanced Features: Scheduled power on/off, active subwoofer connector, firmware updates, and time display.
Technical Specifications:
-
Model: A7G | Type: In-Wall Smart Music Amplifier
-
Display: 7" IPS Touchscreen (1024x600)
-
CPU: Cortex-A7 Quad-Core 1.3GHz | RAM: 2GB | Storage: 32GB
-
Power Output: 8 x 30W @ 8Ω | Zones: 2 Audio Zones
-
Frequency Response: 20Hz–20kHz (±3dB) | THD: 0.03% (1W, 1kHz)
-
Wired I/O: 1 x Line Input, 1 x Line Output, 1 x Subwoofer Output
-
Connectivity: Wi-Fi (2.4G, up to 20m), Bluetooth 5.0, USB, TF (up to 32GB)
-
Power Supply: AC 100–240V, 50–60Hz
-
Product Size: 186.5 x 122 x 50 mm
-
Optional Accessories: Handheld mic, headset mic, metal mic, TF memory card
Package Includes: A7G Amplifier, In-line Power Supply, Mounting Accessories, User Manual
