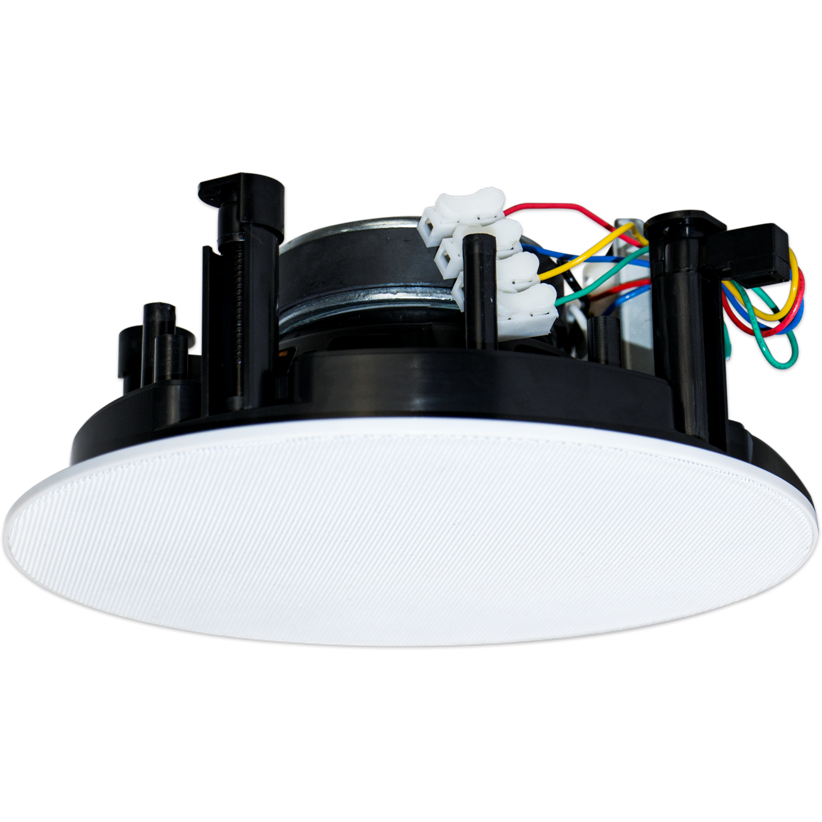

CMX 6.5" 2-Way Frameless Ceiling Speaker 30W 100V – Magnetic Grille, Coaxial Design, Ideal for Commercial Audio & Public Address

 Description

The CSK-613HT 6.5-Inch 2-Way Ceiling Speaker is a professional commercial audio solution designed for public address systems, background music, and modern ceiling installations. Featuring a 6.5-inch bass driver and 1-inch tweeter in a 2-way coaxial configuration, it delivers clear and balanced sound reproduction across a 80Hz–20kHz frequency range. Equipped with a built-in 100V transformer and selectable 30W/15W/7.5W power taps, it offers flexible audio distribution for commercial speaker systems. Its elegant frameless magnetic grille, durable ABS baffle, and convenient spring-clip mounting system make it ideal for retail stores, hotels, offices, and hospitality environments.

Key Features

• 6.5-Inch Ceiling Speaker: Premium slim-line speaker designed for professional commercial audio installations.
• 2-Way Coaxial Design: Combines a 6.5-inch bass driver and 1-inch tweeter for balanced sound reproduction.
• High-Flex Polypropylene Cone: Features a flexible polypropylene cone designed for clear audio and improved bass response.
• 30W RMS Power: Provides 30W rated output power for compatible 100V speaker systems.
• Built-in 100V Transformer: Compatible with constant-voltage public address and background music systems.
• Selectable Power Taps: Offers 30W, 15W, and 7.5W settings for flexible speaker system configuration.
• Wide Frequency Response: Supports a frequency range of 80Hz–20kHz for voice and music reproduction.
• High Sensitivity: Features a sensitivity rating of 90dB at 1W/1m.
• Maximum Sound Pressure Level: Supports a maximum SPL of 103dB for effective sound coverage.
• Frameless Magnetic Grille: Features a white magnetic steel grille for a clean and modern ceiling appearance.
• Durable ABS Baffle: Equipped with a black ABS baffle for reliable speaker construction.
• Slim-Line Design: Offers a discreet appearance that integrates with modern interior spaces.
• Spring-Clip Mounting: Allows quick and secure flush-mount installation in compatible ceilings.
• 205mm Ceiling Cutout: Requires a ceiling opening of approximately Ø205mm for installation.
• Compact Dimensions: Measures Ø235 × 110mm for convenient integration into ceiling spaces.
• Lightweight Design: Weighs approximately 1.7kg for convenient handling and installation.
• Public Address Applications: Suitable for paging, voice announcements, and commercial PA systems.
• Background Music Support: Designed for music distribution in professional commercial environments.
• Commercial Applications: Ideal for offices, hotels, restaurants, retail stores, shopping centers, and other indoor audio installations.
