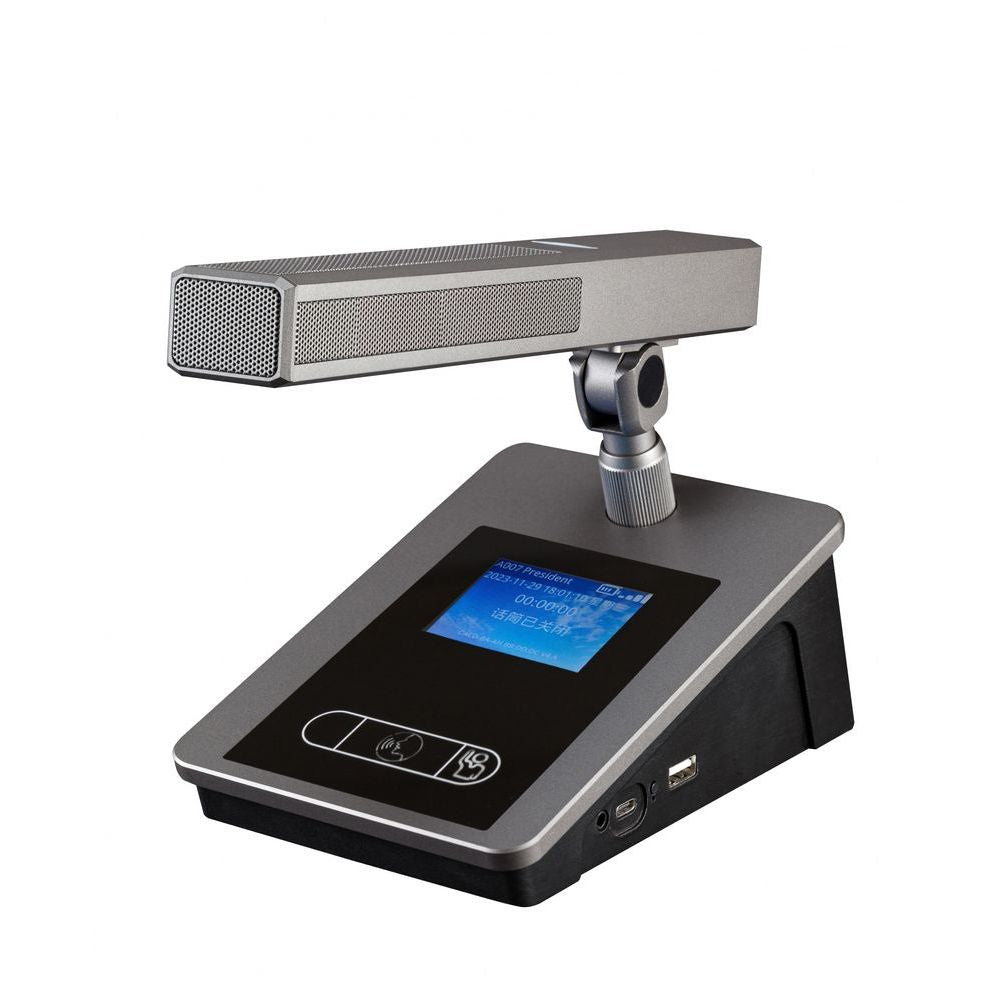

5G-122 – 5G Wireless Conference Delegate Microphone Unit

The 5G-122 is a secure and versatile wireless delegate microphone system designed for modern digital conferencing environments. Operating over encrypted 5G Wi-Fi, it features a 2.4” LCD display, 3.5mm earphone jack, and full compatibility with camera tracking systems. With long battery life and high-quality audio performance, it is ideal for conference rooms, educational institutions, and government meetings.

• Interactive Display: 2.4” LCD shows mic status, ID, check-in, and supports English/Chinese/French/Russian display.
• Secure 5G Wi-Fi: Digital transmission over 5.1–5.8GHz with anti-interference and eavesdropping protection.
• Superior Audio: 48KHz sampling rate, 80Hz–16kHz range, built-in feedback suppression, and 5-band EQ settings.
• Capacitive Touch Mic: Cardioid directional mic with dual-color ring (red for speak, green for apply).
• USB-C Interface: Fast charging, parameter configuration, and firmware updates via USB-C port.
• Extended Operation: 8–10 hours of talk time or up to 16 hours with two battery sets.
• Auto Tracking Support: Compatible with HD camera auto-tracking systems for seamless video integration.
• Audio Monitoring: Includes 3.5mm earphone jack with volume control; optional built-in speaker.

Technical Specifications:

• Model: 5G-122 | Type: Delegate Unit
• Wireless Band: 5.1–5.8GHz (802.11a/an/ac/Wave2)
• Frequency Response: 80Hz–16kHz | S/N Ratio: >80dB(A)
• Battery: 5200mAh, 3.7V | Charging Time: 3 hours
• Mic Impedance: 1kΩ | Max Power Consumption: 1.5W
• Display: 2.4” LCD | Audio Jack: 3.5mm Stereo
• Dimensions: Base: 170 x 115 x 70 mm | Mic Pole: 235 x 28 x 28 mm
• Color: Black & Silver Gray

Package Includes: 5G-122 Delegate Mic Unit, USB-C Charging Cable, User Manual
