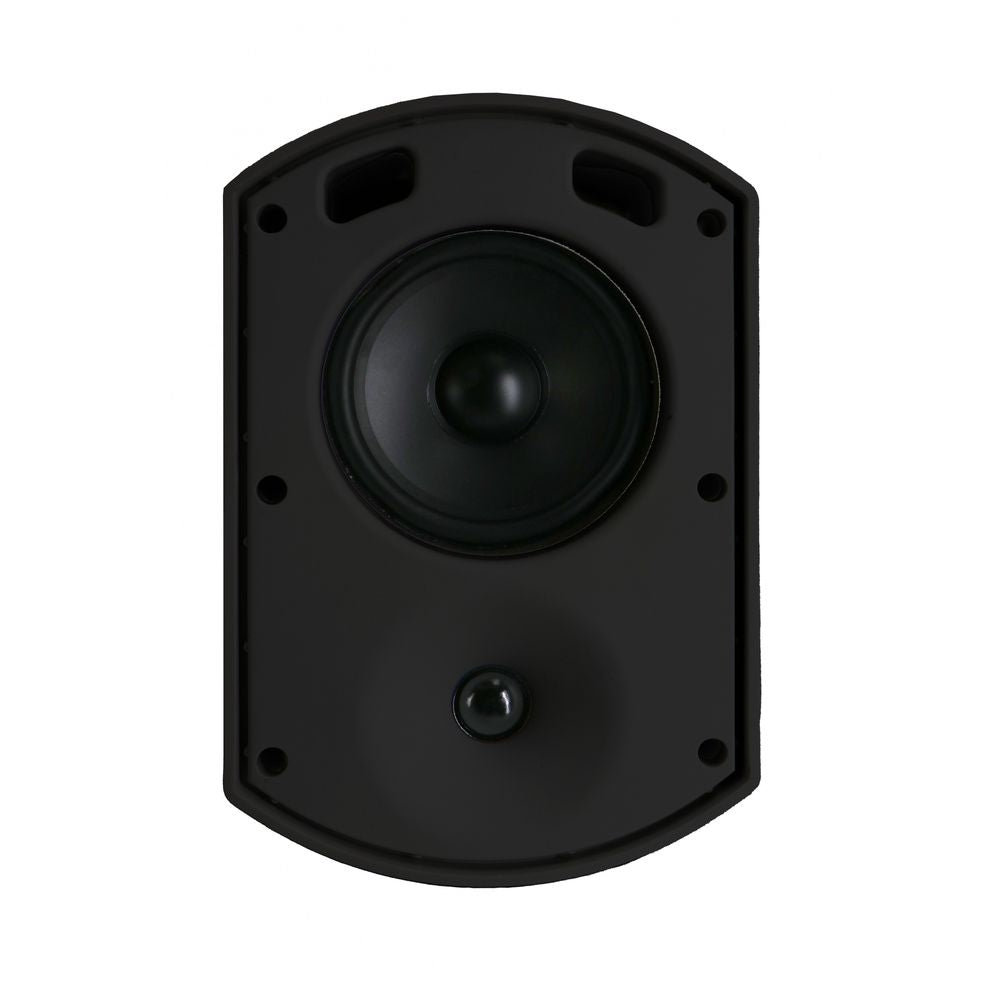

WSK-R30B – 5.25” Wall Mount 100V/70V Public Address Speaker

The WSK-R30B is a commercial-grade 5.25” 2-way wall mount speaker designed for background music and paging systems in public environments. Featuring a waterproof metal grille, high-efficiency transformer, and robust ABS enclosure, it’s ideal for schools, offices, hotels, airports, and other commercial installations. This speaker supports both 100V and 70V line input and includes an 8Ω option for flexible system configuration.

• Dual Line Support: Compatible with 100V/70V public address systems and 8Ω low impedance setups.
• Selectable Power Taps: Choose between 30W, 15W, 7.5W, or 3.75W based on zone or room size.
• 2-Way Speaker System: Equipped with a 5.25” woofer and 1” silk dome tweeter for clear, full-range sound.
• Durable Construction: ABS enclosure with IP65-rated waterproof black metal grille for indoor/outdoor use.

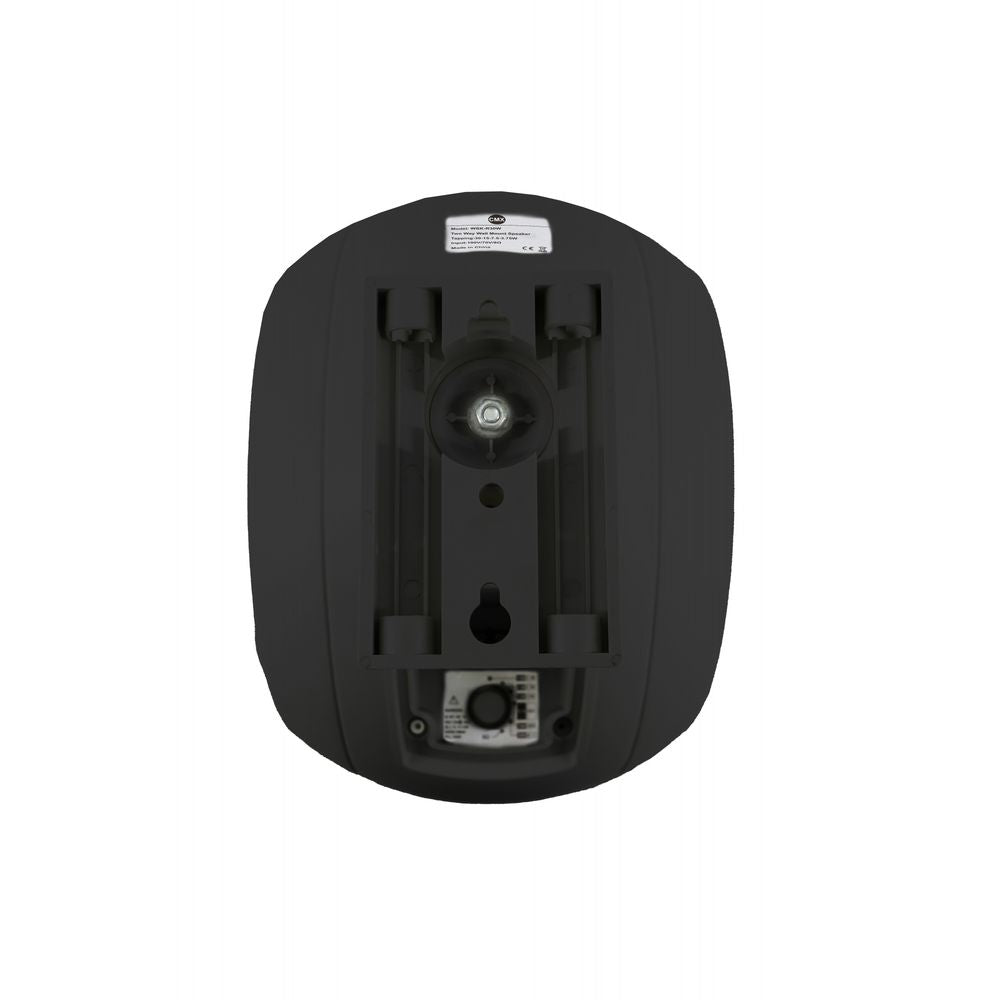

• Easy Installation: Comes with an ABS quick-mount bracket for fast and secure wall mounting.

Technical Specifications:

• Model: WSK-R30B | Description: 5.25” 2-Way Wall Mount Speaker
• Rated Power: 30W | Power Taps: 30W / 15W / 7.5W / 3.75W & 8Ω
• Line Input: 100V / 70V
• Frequency Response: 85Hz–20kHz | SPL (@1W/1m): 89±3dB
• Speaker Drivers: 5.25” Woofer + 1” Silk Tweeter
• Material: ABS Enclosure, Waterproof Black Metal Grille
• IP Rating: IP65 | Mounting: Quick Installation with ABS Bracket
• Dimensions: 290 x 186 x 190 mm | Weight: 3.1 kg

Package Includes: 1 x WSK-R30B Speaker, 1 x Wall Mount Bracket
