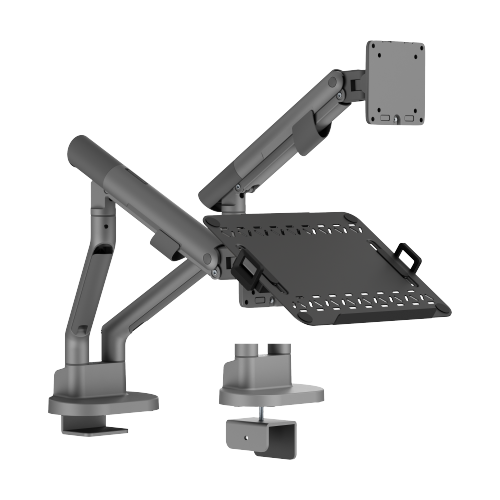

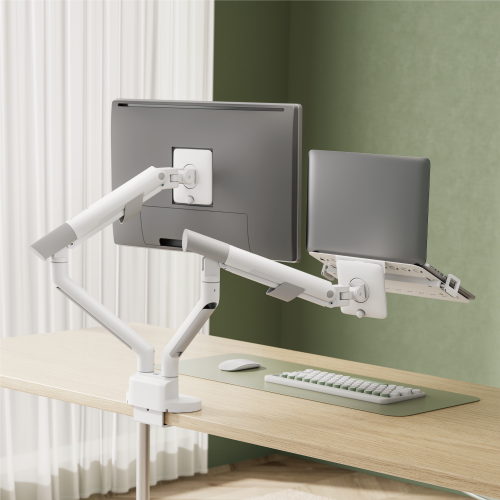

Model: “Nova Slim” mechanical spring monitor arm with integrated laptop tray
-
Material & Finish: Aluminum, steel & plastic construction with powder coating surface
-

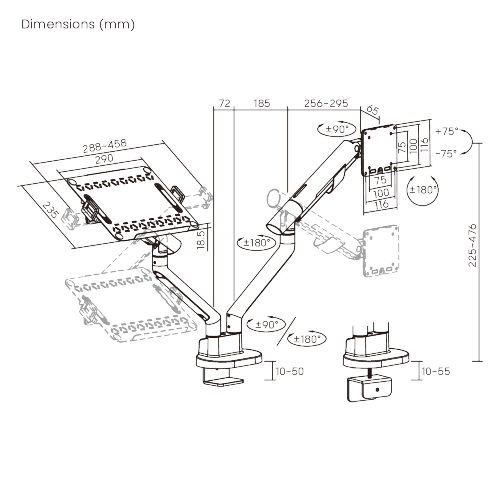

Overall Dimensions (max extension): 1,165 × 306 × 553 mm (45.9″ × 12.0″ × 21.8″)
-
Compatible Screen Sizes: 17″ to 35″ monitors (including curved)
-
Weight / Load Capacity:
- Monitors: 2 – 11 kg (4.4 – 24.2 lbs) per screen
- Curved monitors: up to 10 kg (22 lbs)

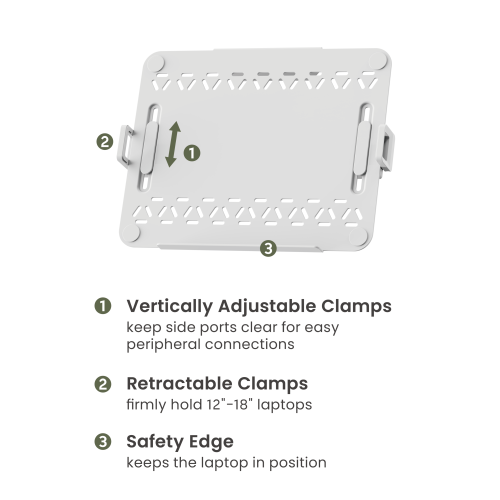

- Laptop tray: supports laptops sized 12″ to 18″, up to 9 kg (19.8 lbs)
-
VESA Mount Compatibility: 75 × 75 mm and 100 × 100 mm
-
Adjustment Ranges / Movements:
- Tilt: +75° to –75°
- Swivel: +90° to –90°
- Rotation (Landscape / Portrait): +180° to –180°
- Arm Full Horizontal Extension: 480 mm (18.9″)
-
Mount Type / Installation: Supports both clamp and grommet mounting
-
Desk Thickness Compatibility:
- Clamp: 10 mm to 50 mm (0.39″ – 2.0″)
- Grommet: 10 mm to 55 mm (0.39″ – 2.2″)
-
Features & Highlights:

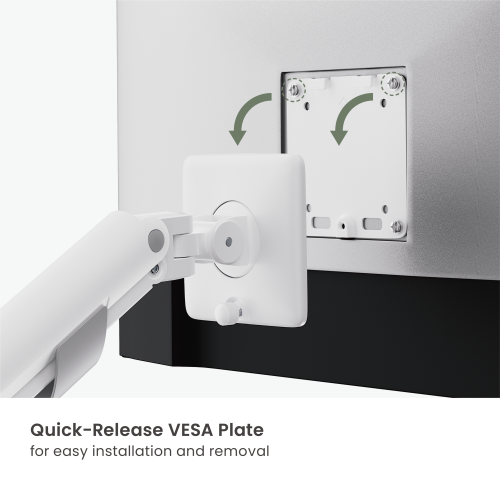

- Quick-release VESA plate for easy monitor mounting / removal

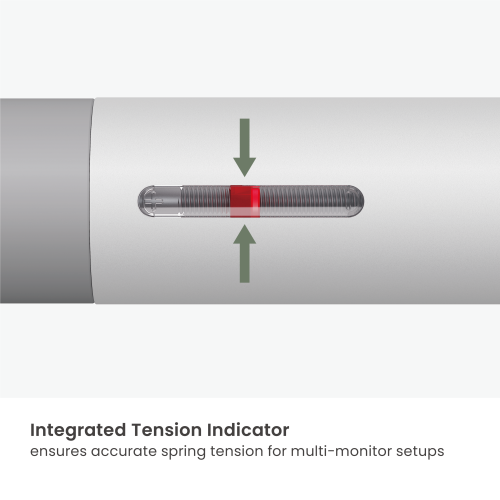

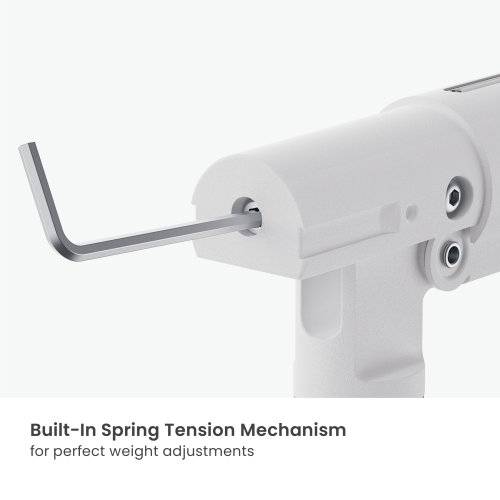

- Tension indicator to help align spring tension (great for balanced setups)

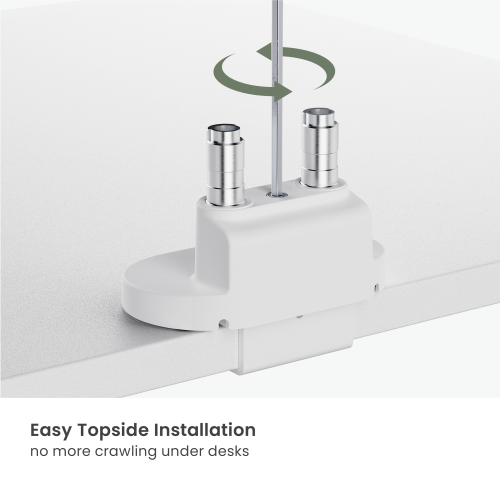

- Top-side mounting design—can be installed from above desk surface, no need to access underside
- Rotation stops to prevent arm from swinging into walls / neighboring monitors
- Built-in cable management channels along arms for clean routing
