Professional Control for Every Scenario

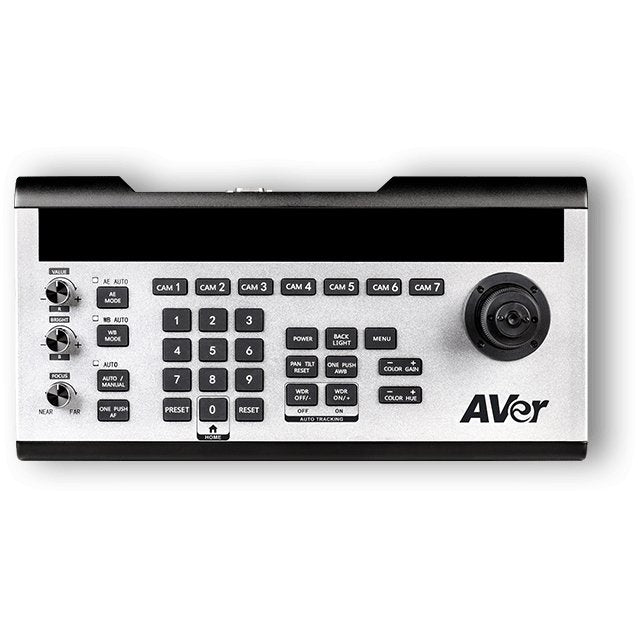

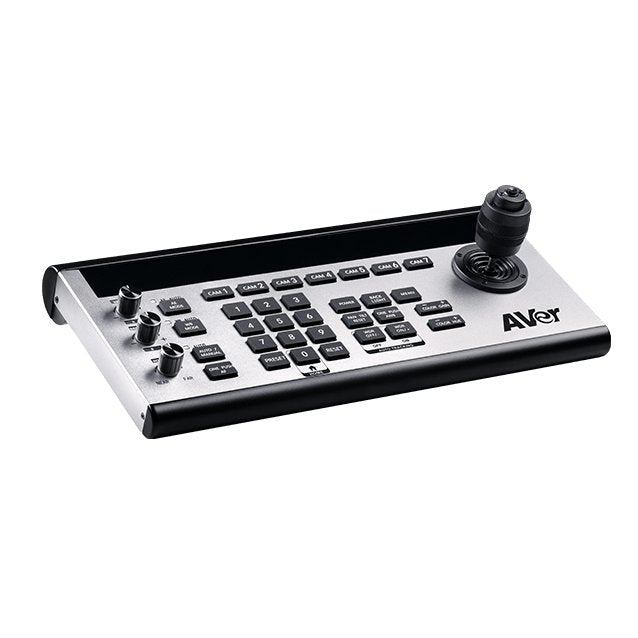

The AVer CL01 is a versatile PTZ camera controller designed for seamless operation in education, conferencing, telemedicine, livestreaming, and broadcasting environments. With wide protocol support and intuitive controls, it empowers users to manage multiple PTZ cameras with precision.
Key Features:
✔️ Supports VISCA, Sony VISCA, Pelco-D/P & IP control protocols
✔️ Multiple interfaces: RS-232, RS-422, RS-485, IP, Micro USB
✔️ Controls up to 255 PTZ cameras
✔️ 7 shortcut camera channels
✔️ 3 infinite rotation knobs for focus, zoom, and speed
✔️ Built-in joystick for smooth pan, tilt, and zoom control
✔️ OLED display for clear, intuitive navigation
✔️ Ideal for professional AV environments
Specifications:
• Control Protocols: VISCA, Sony VISCA, Pelco-D/P, UDP, IP (VISCA over IP)

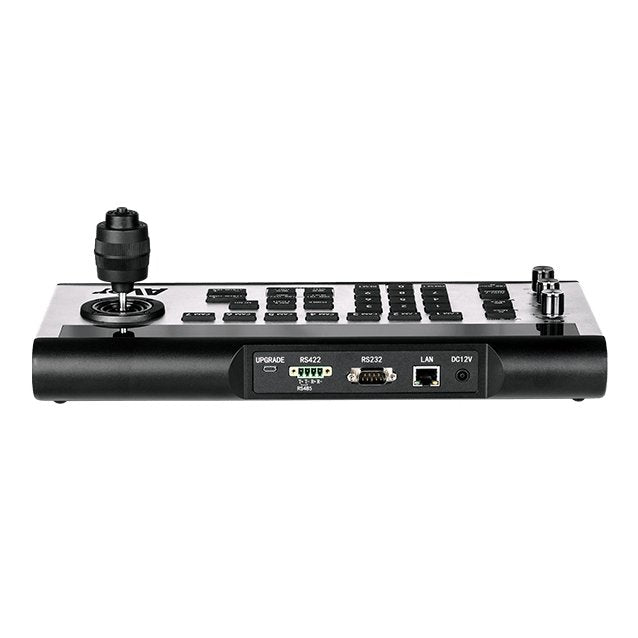

• Interfaces: RS-232, RS-422, RS-485, IP (RJ45), Micro USB
• Camera Control: 1–255 cameras, 7 quick-access preset buttons
• Display: OLED screen
• Rotation Knobs: 3 (focus, zoom, speed)
• Joystick: 3-axis for pan/tilt/zoom
• Baud Rates: 2400/4800/9600/19200/38400 bps
• IP Address (Default): 192.168.1.162–168
• UDP Port: 08090
• Power Supply: DC 12V/2A, AC 100–240V
• Power Consumption: 24W
• Dimensions: 173 x 99 x 350 mm
• Weight: 2.5 kg
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Warranty: 3 years
Package Includes:
• AVer CL01 PTZ Camera Controller
• Power Adapter
• RS485 4-pin Terminal
• User Manual
Compatible With:
AVer PTZ cameras and most third-party PTZ cameras supporting VISCA or Pelco protocols.
Perfect For:
🎓 Classrooms 💼 Business Meetings 🏥 Telemedicine 📺 Livestreaming & Broadcasting
