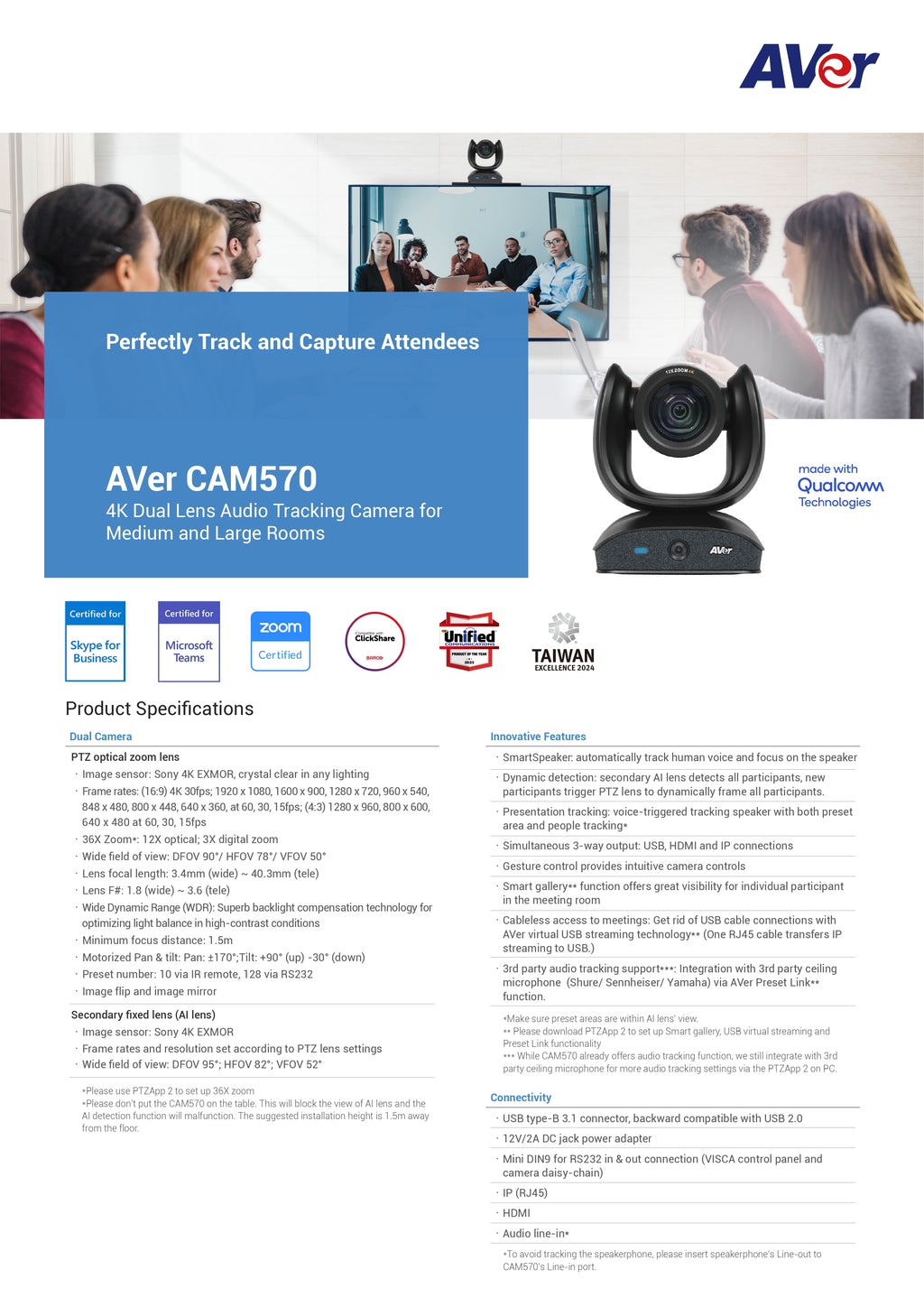

AVer CAM570 – Dual Lens 4K PTZ Camera with Audio & AI Tracking
The AVer CAM570 is a cutting-edge 4K dual lens PTZ camera designed for medium to large conference rooms. Featuring SmartSpeaker voice tracking, dynamic framing, and Smart Gallery AI, this camera ensures everyone in the room is seen and heard with crystal clarity. Simultaneous USB, IP, and HDMI output supports any meeting setup with seamless integration.
-
Dual-Lens Design: 4K PTZ lens with 12X optical zoom + secondary AI lens with 95° DFOV for full-room visibility and tracking.
-
36X Zoom: Combines 12X optical and 3X digital zoom for a total 36X detail capture (via PTZApp 2).
-
SmartSpeaker Tracking: Built-in audio detection locks onto active speakers for dynamic voice-based framing.
-
Dynamic Framing: AI lens detects participants and adjusts PTZ framing in real time as people enter or move around.
-
Smart Gallery: Automatically frames individual headshots or half-body views for improved visibility (set via PTZApp 2).
-
Gesture Control: Enables intuitive control without touching remotes or interfaces.
-
3-Way Output: Stream simultaneously via USB 3.1, HDMI, and IP (RTSP/RTMP H.264).
-
Third-Party Mic Integration: Compatible with Shure, Yamaha, and Sennheiser ceiling mics via Preset Link (PTZApp 2 required).
-
AVer Virtual USB Streaming: Converts IP streaming to USB using one RJ45 cable—no physical USB connection needed.

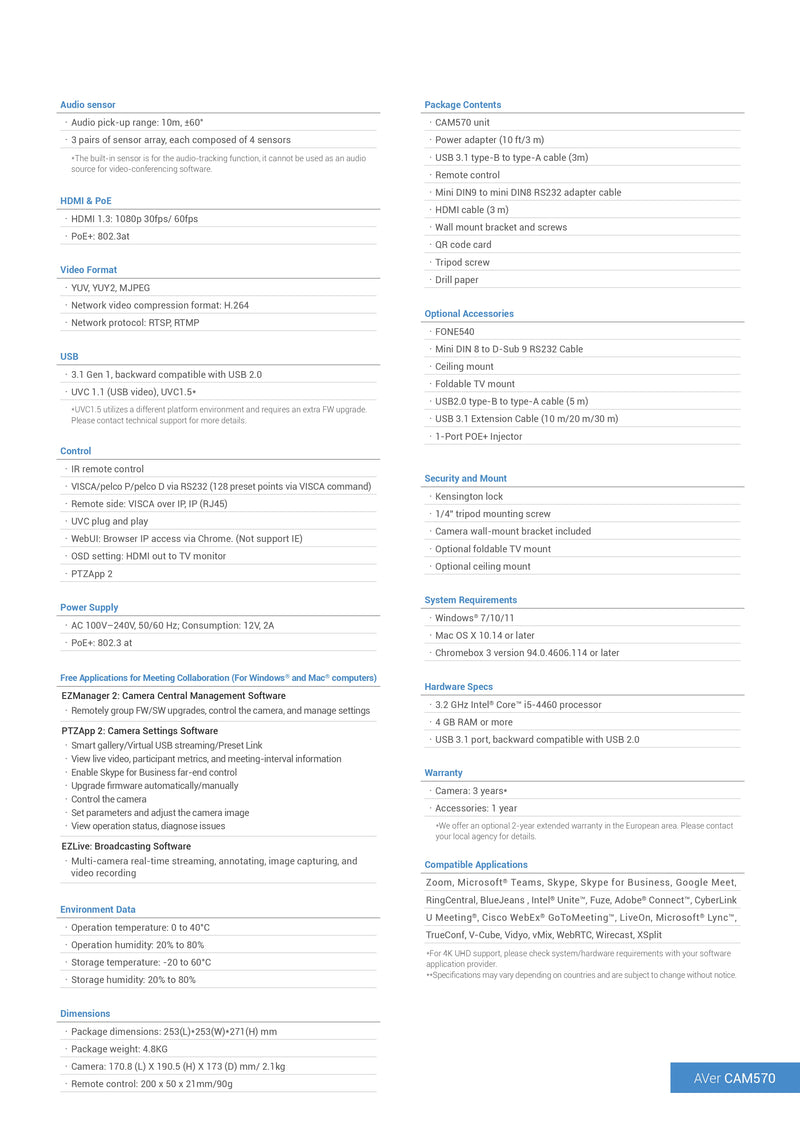

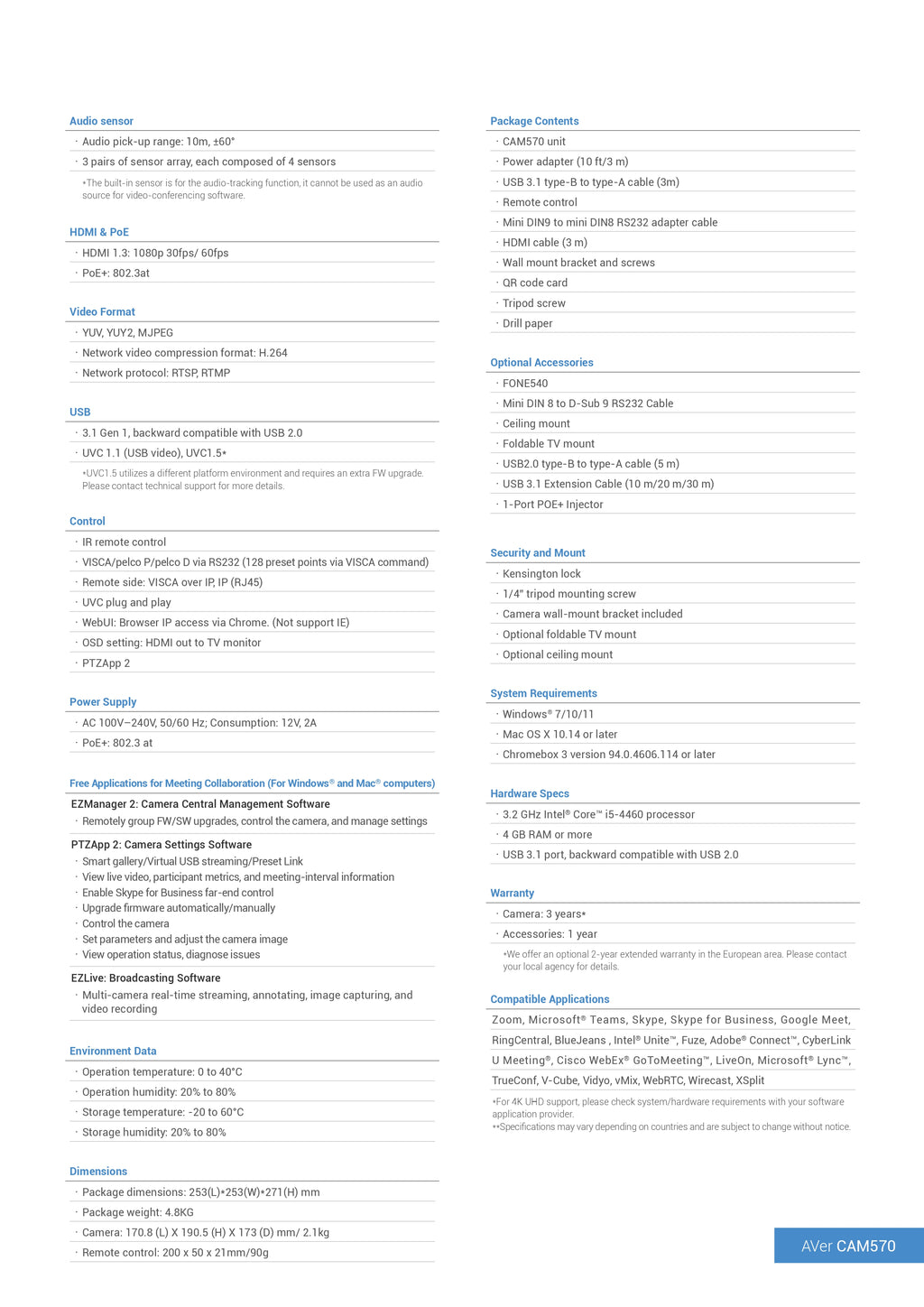

Technical Specifications:
-
Sensor: Dual Sony 4K EXMOR CMOS | Resolution: Up to 4K @ 30fps, 1080p @ 60fps
-
Zoom: 12X Optical + 3X Digital | Total Zoom: 36X
-
FOV: PTZ Lens: DFOV 90° / AI Lens: DFOV 95°
-
Pan/Tilt: ±170° / +90° to -30° | Presets: 10 IR, 128 via RS232
-
Audio Sensors: 3-mic array | Pick-up Range: 10m, ±60°
-

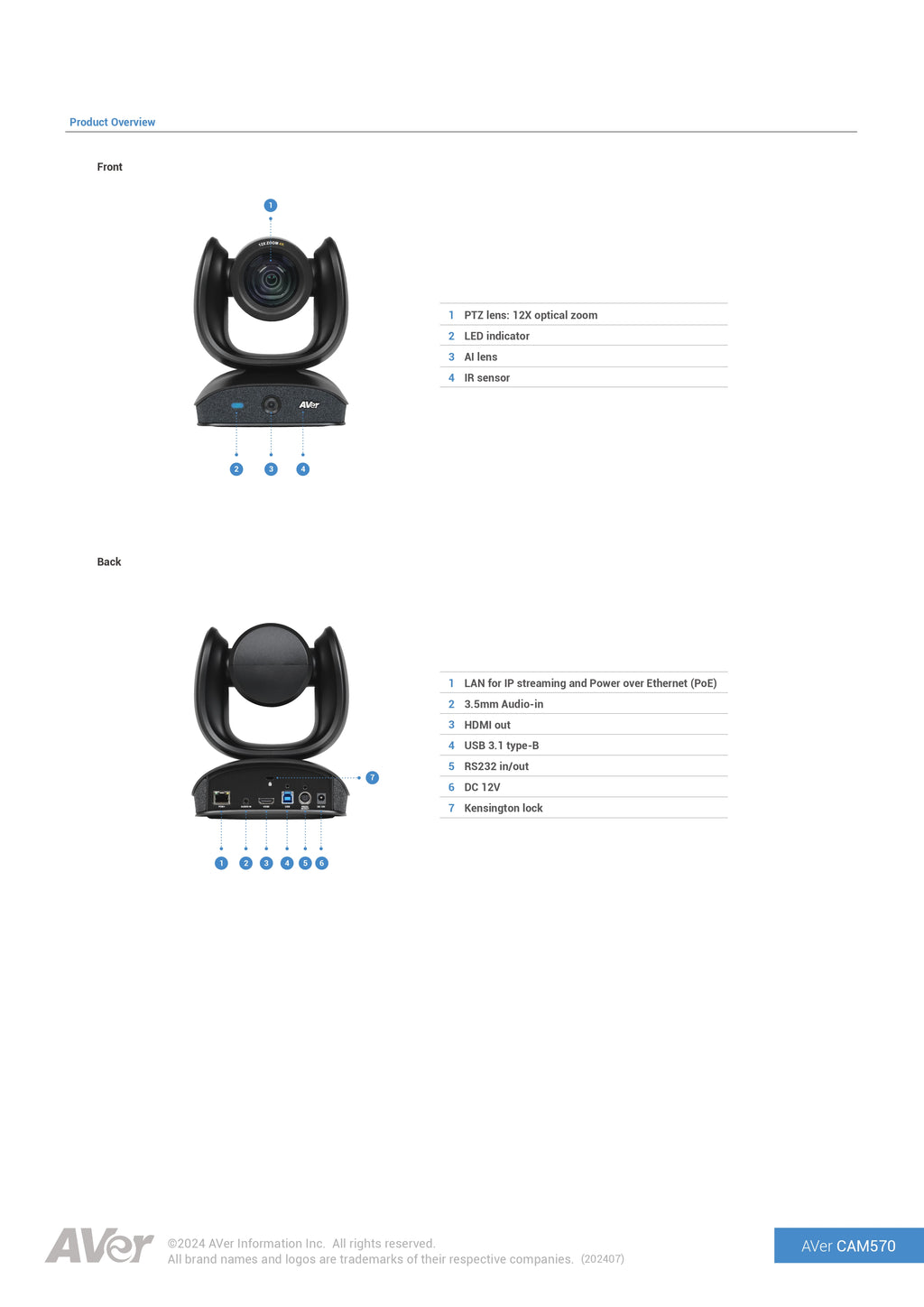

Outputs: USB 3.1 Type-B, HDMI, IP (RJ45)
-
Video Formats: YUV, YUY2, MJPEG | Streaming: H.264 via RTSP/RTMP
-
Control: IR Remote, VISCA, RS232, Web UI, PTZApp 2
-
Mount: Wall mount included, optional ceiling and TV mounts
-
Dimensions: 170.8 x 190.5 x 173 mm | Weight: 2.1 kg
-
Power: 12V DC or PoE+ | Consumption: 12V/2A
-
System Compatibility: Windows®, macOS®, ChromeOS® (UVC/UAC supported)
Package Includes: CAM570 unit, Power Adapter, USB & HDMI Cables, Remote Control, RS232 Adapter, Wall Mount Kit, QR Code Card, Tripod Screw
