Atlantic Indoor Fiber Optic Patch Cord 3M, Single Mode OS2 Duplex, LC/LC SC/SC SC/LC UPC
Atlantic Indoor Fiber Optic Patch Cord 3M, Single Mode OS2 Duplex, LC/LC SC/SC SC/LC UPC
Available in stock
The Atlantic Indoor Fiber Optic Patch Cord 3M is a single mode OS2 duplex cable designed for stable signal transmission in data centers, telecom environments, and high-speed network links. It is available with LC/UPC to LC/UPC, SC/UPC to SC/UPC, and SC/UPC to LC/UPC connector options.
- 3 meter length for indoor fiber connections
- Single mode OS2 duplex fiber for long-distance and high-speed transmission
- Low insertion loss up to ≤ 0.3 dB
- UPC return loss ≥ 50 dB

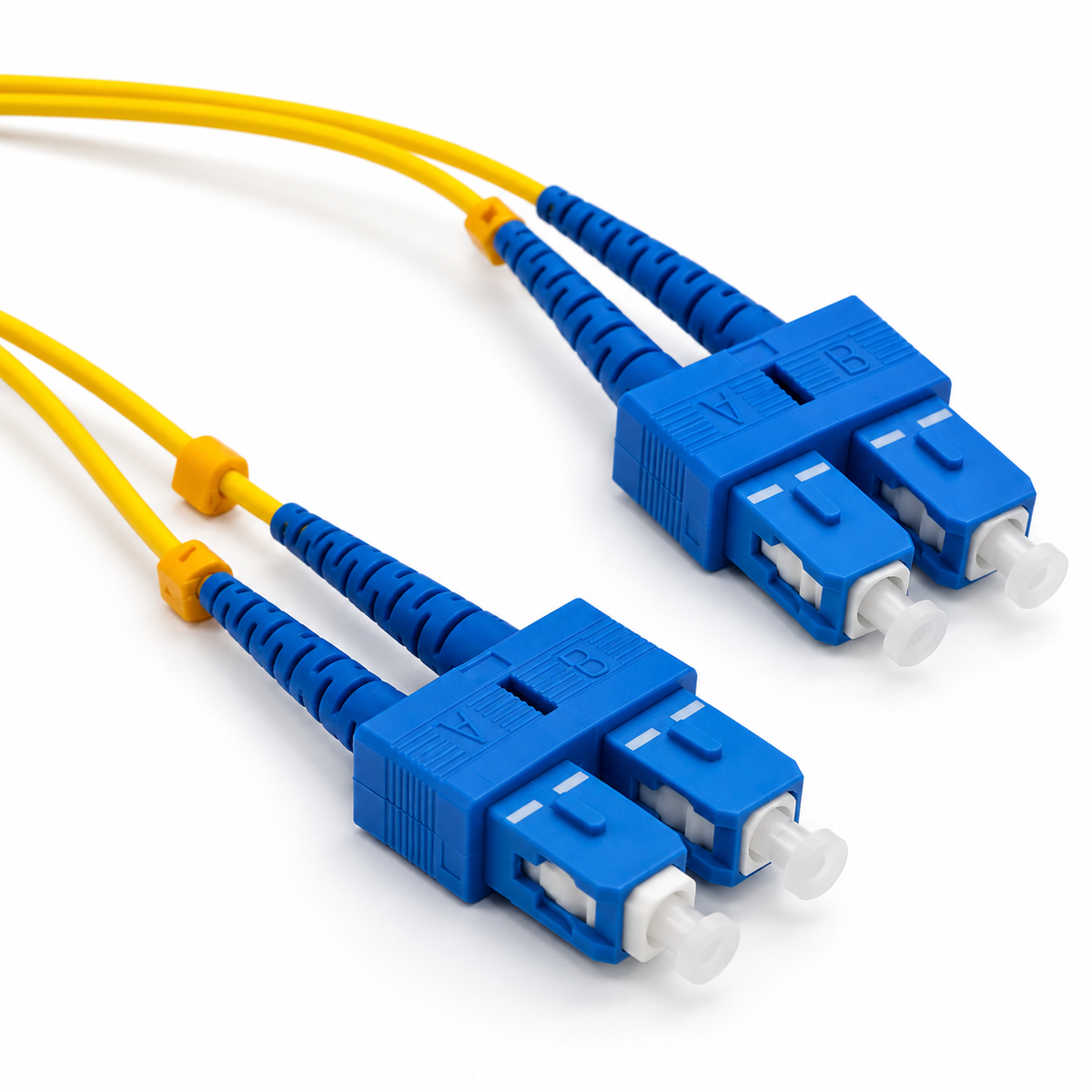

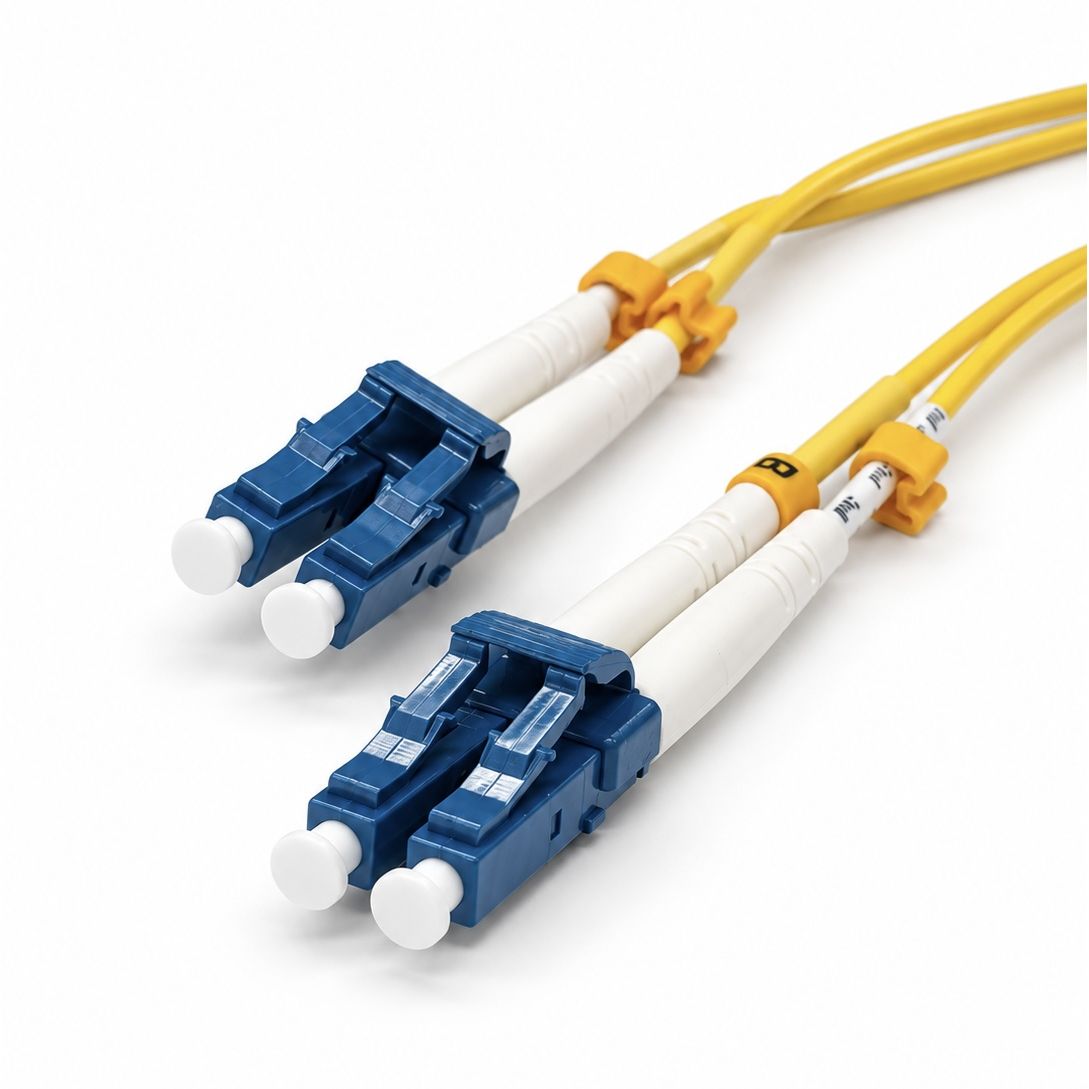

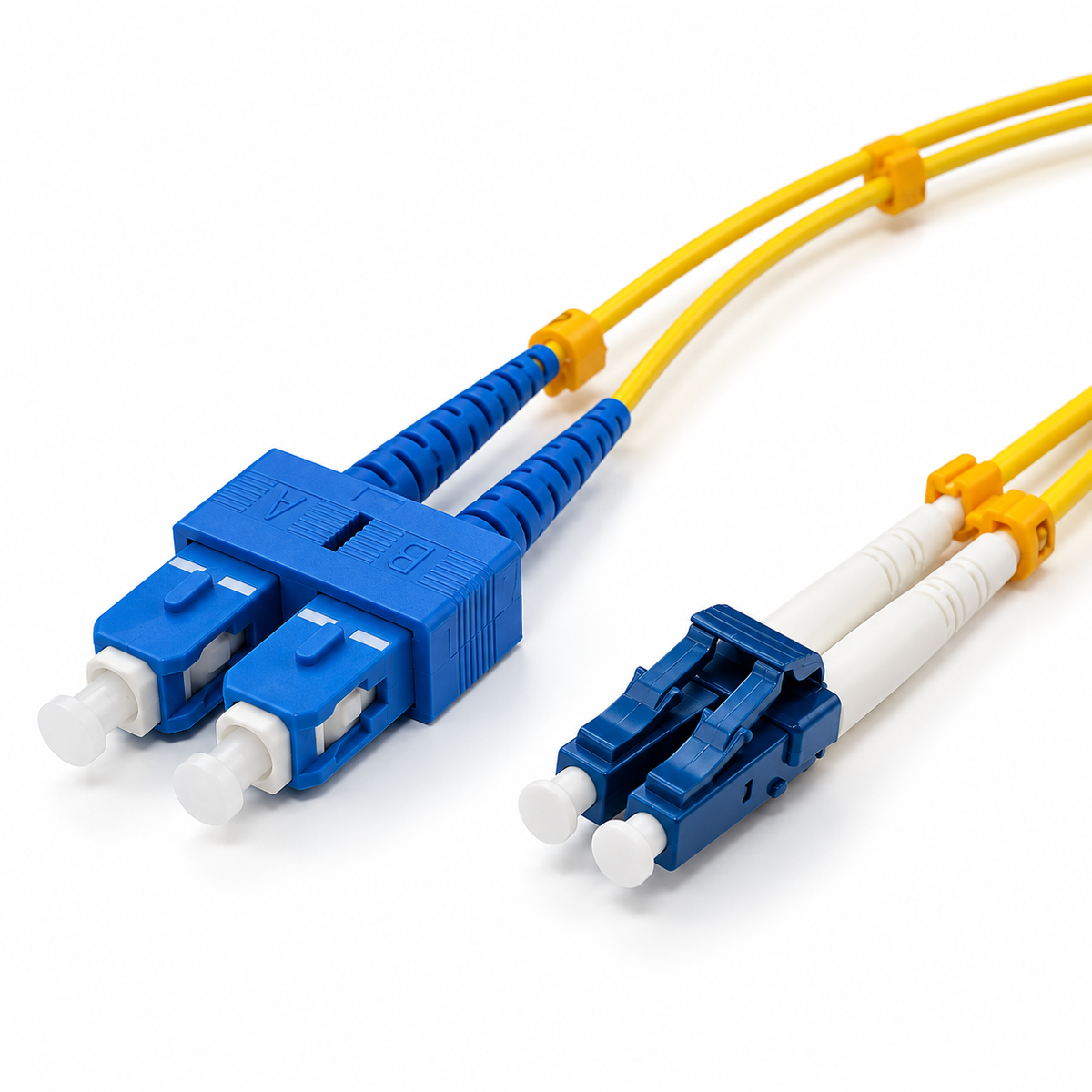

- Connector options LC/UPC to LC/UPC, SC/UPC to SC/UPC, SC/UPC to LC/UPC
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Atlantic |
| Product Type | Indoor Fiber Optic Patch Cord |
| Part Number | ATP-LC-LC-UPC-3M |
| Length | 3 Meters |
| Fiber Type | Single Mode OS2 |
| Configuration | Duplex |
| Connector Options | LC/UPC to LC/UPC, SC/UPC to SC/UPC, SC/UPC to LC/UPC |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss (UPC) | ≥ 50 dB |
| Core Diameter | ~9 µm |
| Cladding Diameter | 125 µm |
| Outer Jacket | PVC |
| Application | Data Centers, Telecom, High-Speed Network Connections |
