Atlantic GYXTW Outdoor Fiber Optic Cable 4 Core 1KM – Single Mode G.652/G.652D – Steel Reinforced, Water-Blocking, Black PE Jacket – AT-04C-GYXTW-AC

Atlantic GYXTW Outdoor Single Mode Fiber Optic Cable 4 Core – 1KM

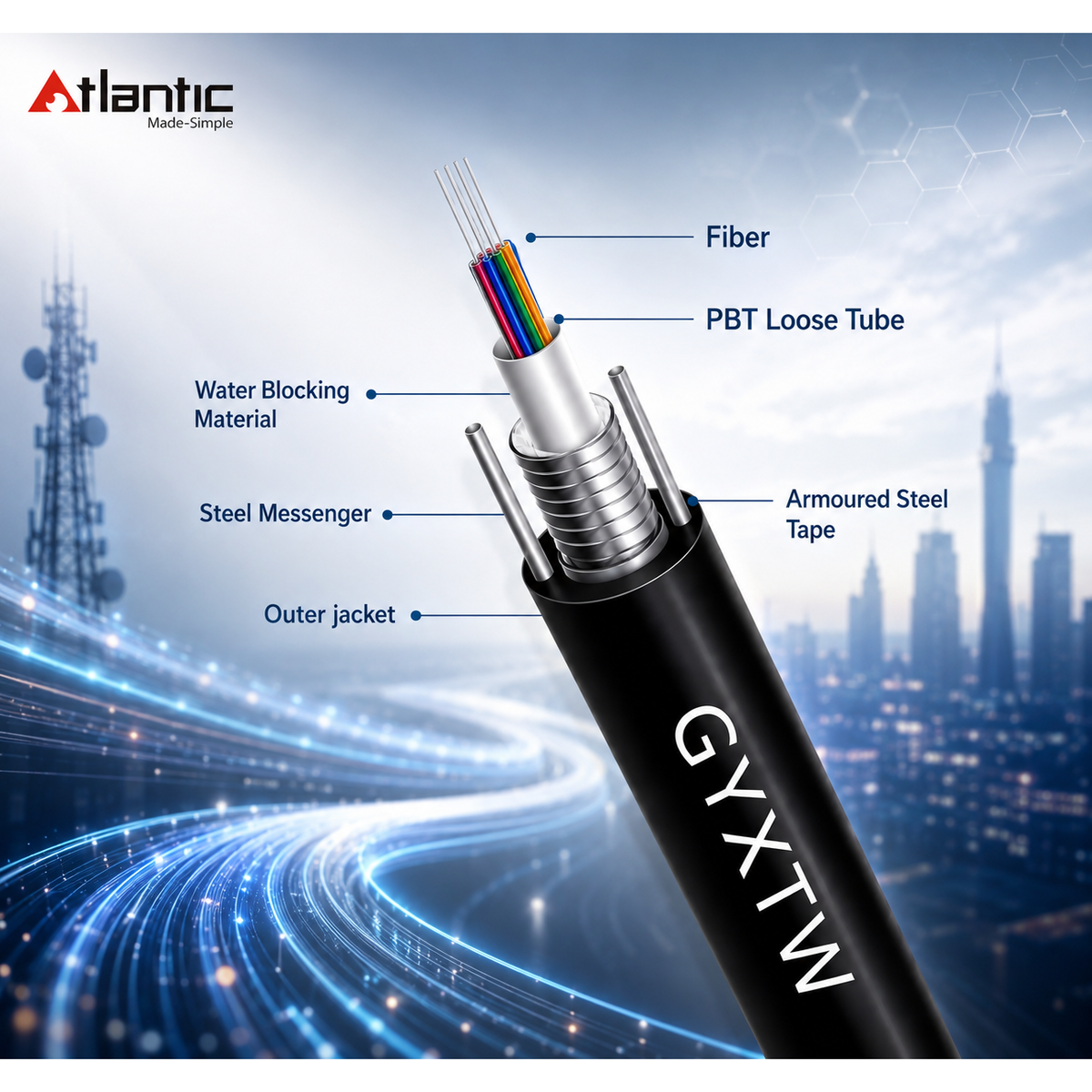

The Atlantic GYXTW Outdoor Fiber Optic Cable is a durable 4 Core single mode fiber cable designed for outdoor optical communication networks. Featuring Single Mode G.652/G.652D fiber, a gel-filled PBT loose tube, water-blocking protection, corrugated steel tape, and an integrated steel wire, it provides reliable performance and strong mechanical protection for demanding outdoor installations.

Key Features

• 4 Core outdoor fiber optic cable
• Part Number: AT-04C-GYXTW-AC
• Single Mode G.652 / G.652D optical fiber
• Designed for outdoor fiber optic communication networks
• Gel-filled PBT loose tube for enhanced fiber protection
• Water-blocking tape helps reduce water penetration and migration
• Corrugated steel tape provides enhanced mechanical and impact protection
• Integrated steel wire adds tensile strength and structural support
• Durable black PE outer jacket suitable for outdoor environments
• Compact cable outer diameter of 7.0 ± 0.2 mm
• Operating and storage temperature range from -40°C to +70°C
• Supplied in a minimum 1000-meter segment

Technical Specifications

• Brand: Atlantic
• Cable Type: GYXTW Outdoor Optical Fiber Cable
• Core Count: 4 Core
• Part Number: AT-04C-GYXTW-AC
• Fiber Type: Single Mode G.652 / G.652D
• Fiber Coating Diameter: 125.0 ± 0.1 µm
• Optical Fiber Diameter: 242 ± 7 µm
• Loose Tube Material: PBT
• Loose Tube Diameter: 2.5 mm
• Steel Wire Diameter: 0.5 mm
• Water Blocking Tape: 10 mm
• Corrugated Steel Tape: 13 mm
• Outer Jacket Material: Black PE
• Cable Outer Diameter: 7.0 ± 0.2 mm
• Maximum Long-Term Tensile Strength: 100 N
• Maximum Short-Term Tensile Strength: 300 N
• Maximum Long-Term Crushing Resistance: 300 N/100 mm²
• Maximum Short-Term Crushing Resistance: 1000 N/100 mm²
• Minimum Dynamic Bending Radius: 30D
• Minimum Static Bending Radius: 15D
• Operating & Storage Temperature: -40°C to +70°C
• Minimum Segment Length: ≥1000 m
• Packaging: Wooden Tray / Sealed Wooden Packaging

Applications

• Outdoor Fiber Optic Networks
• Telecommunication Networks
• FTTx Infrastructure
• Campus and Building Backbone Networks
• Long-Distance Fiber Connections

Benefits

• 4 Core configuration is suitable for compact fiber network installations
• Single Mode G.652/G.652D fiber supports reliable long-distance optical communication
• Steel reinforcement provides additional mechanical protection
• Water-blocking construction improves reliability in outdoor environments
• Black PE outer jacket provides durable protection against outdoor conditions
