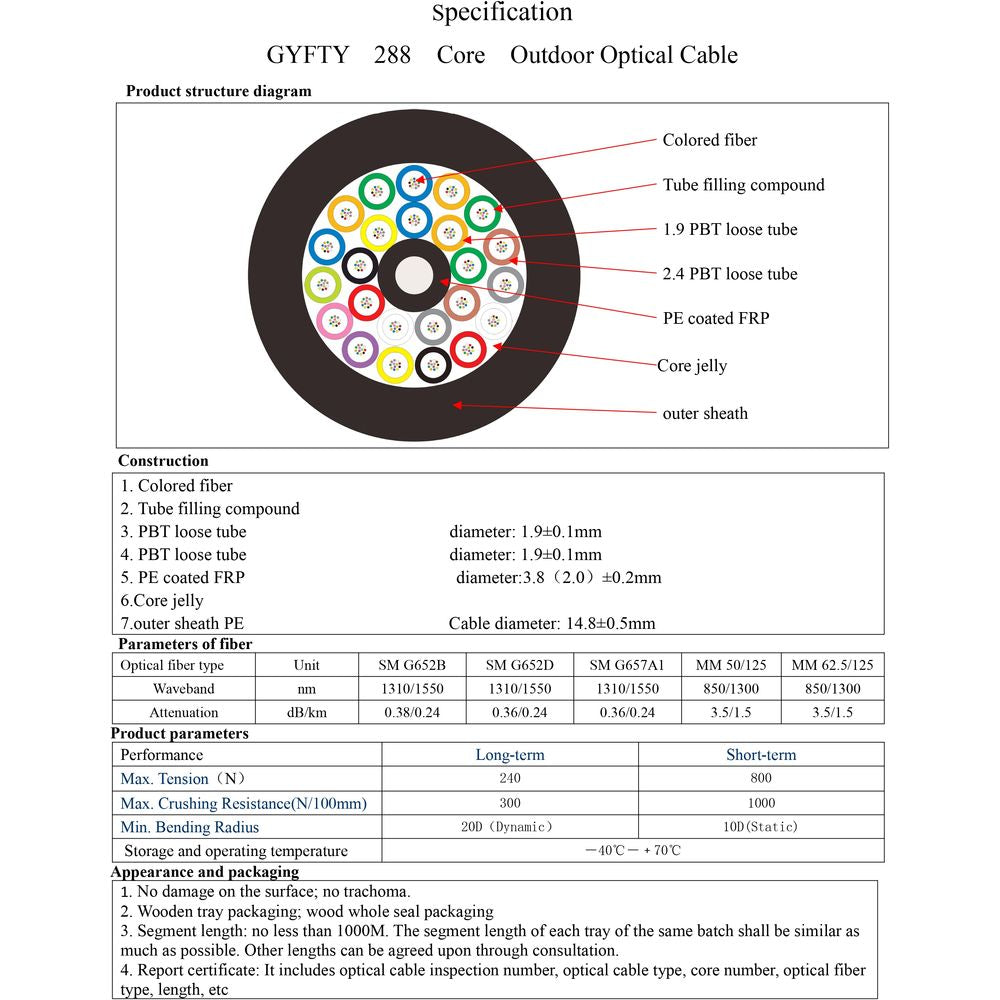

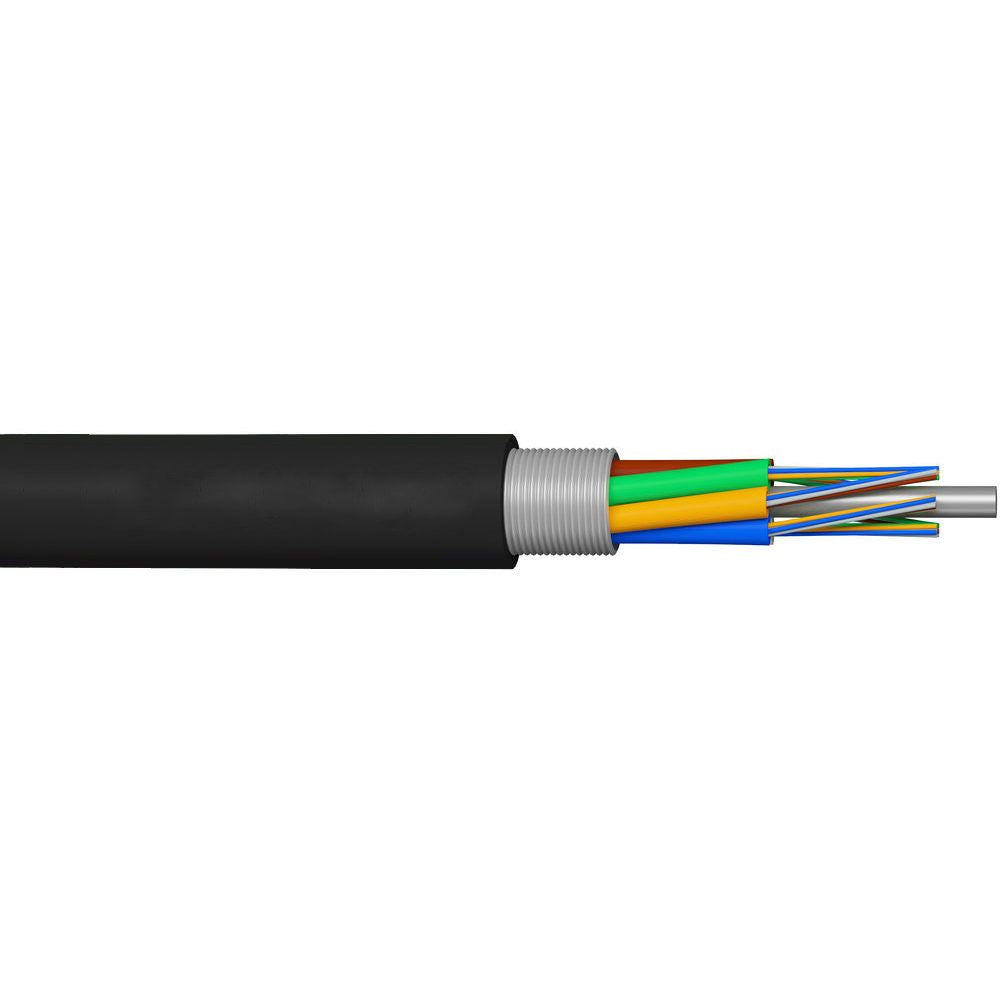

- Construction: 288 Core Optical Cable, with colored fibers, tube filling compound, PBT loose tube, and PE coated FRP
- Outer sheath: PE (Polyethylene) for durability and outdoor usage
- Cable diameter: 14.8 ± 0.5 mm
- Fiber Type: SM G652B, SM G652D, SM G657A1, MM 50/125
- Waveband: SM - 1310/1550nm
- Attenuation: SM - 0.38/0.24 dB/km
- Max. Tension: 240N (long-term), 800N (short-term)
- Max. Crushing Resistance: 300 N/100mm (long-term), 1000 N/100mm (short-term)
- Min. Bending Radius: 20D (dynamic), 10D (static)
- Operating and Storage Temperature: -40°C to +70°C
- No surface damage, packaged in sealed wooden trays
- Segment length: No less than 2000m, with each tray of the same batch as similar as possible
- Inspection certificate included: Optical cable inspection number, type, core number, fiber type, and length
