Atlantic Cat6 SFTP LAN Cable 305M – 23AWG CCA, Outdoor PE Jacket, Shielded Twisted Pair, Gigabit Ethernet, High Speed, RoHS Compliant
Atlantic Cat6 SFTP LAN Cable 305M – 23AWG CCA, Outdoor PE Jacket, Shielded Twisted Pair, Gigabit Ethernet, High Speed, RoHS Compliant
Regular price
95,000 IQD
Sale price
95,000 IQD
Regular price
Shipping calculated at checkout.
Available in stock
- Category 6 SF/UTP 23AWG LAN Cable, 4 Pair, PVC+PE
-
Conductor:
- Material / Size: Copper Clad Aluminum
- Construction: 1/0.56 ± 0.008 mm
-
Insulation:
- Material: HDPE
- Thickness: Nominal 0.22 mm
- Diameter: Nominal 1.0 ± 0.05 mm
- Colors: Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown
- Elongation: Min. 300%
- Tensile Strength: Min. 16.5 MPa
-
Shielding:
- Material: Aluminum Foil Mylar
- Construction: 100% coverage with 25% overlapping
-
Braiding:
- Material: Tinned Copper Clad Aluminum Wire
- Construction: 16*5*0.12 ± 0.01 mm
-
Sheath:
- Material: LLDPE
- Thickness: Nominal 0.55 mm
- Diameter: 6.8 ± 0.3 mm
- Color: As per customer requirement
- Elongation: Min. 600%
- Tensile Strength: Min. 14 MPa
- Aging at 100°C for 168 hours: Min. elongation 500%, Min. tensile strength 14 MPa
- Marking: Sheath printed white with legend as per customer requirements
-
Standard Compliances:
- ANSI/TIA-568.2-D Cat.6
- ISO/IEC 2nd Edition 11801 Class E
- RoHS Compliant (Directive 2011/65/EU)
-

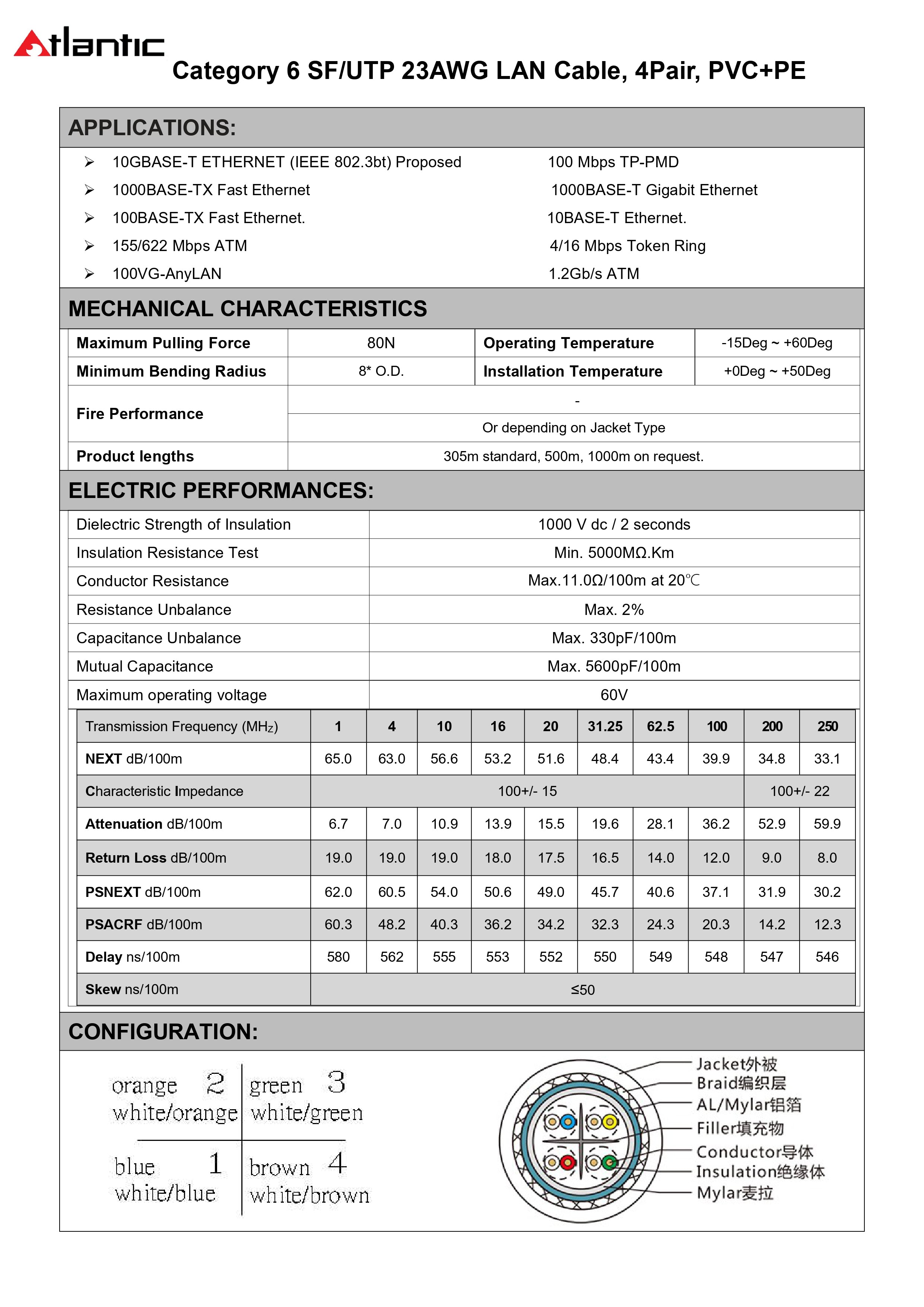

Applications:
- 10GBASE-T Ethernet (IEEE 802.3bt) Proposed
- 1000BASE-TX Gigabit Ethernet
- 100BASE-TX Fast Ethernet
- 10BASE-T Ethernet
- 155/622 Mbps ATM
- 100 Mbps TP-PMD
- 4/16 Mbps Token Ring
- 1.2 Gb/s ATM
-
Mechanical Characteristics:
- Maximum Pulling Force: 80 N
- Minimum Bending Radius: 8× O.D.
- Operating Temperature: -15°C to +60°C
- Installation Temperature: 0°C to +50°C
- Product Lengths: 305m standard, 500m, 1000m on request
-
Electrical Performances:
- Dielectric Strength of Insulation: 1000 V DC / 2 seconds
- Insulation Resistance: Min. 5000 MΩ·km
- Conductor Resistance: Max. 11.0 Ω/100m at 20°C
- Resistance Unbalance: Max. 2%
- Capacitance Unbalance: Max. 330 pF/100m
- Mutual Capacitance: Max. 5600 pF/100m
- Maximum Operating Voltage: 60V
- Characteristic Impedance: 100 ± 15 (to 62.5 MHz), 100 ± 22 (up to 250 MHz)
-
Performance by Frequency (dB/100m):
- NEXT: 65.0 (1 MHz) to 33.1 (250 MHz)
- Attenuation: 6.7 (1 MHz) to 59.9 (250 MHz)
- Return Loss: 19.0 (1 MHz) to 8.0 (250 MHz)
- PSNEXT: 62.0 (1 MHz) to 30.2 (250 MHz)
- PSACRF: 60.3 (1 MHz) to 12.3 (250 MHz)
- Delay: 580 ns (1 MHz) to 546 ns (250 MHz)
- Skew: ≤50 ns/100m
