Type: S/FTP CAT6 4*2*23AWG LDPE
Application
- Structured premises cabling
- Transmission of digital and analogue voice and data signals
- Suitable for all Class E applications
- ISDN, Ethernet 10 Base-T, Fast Ethernet 100 Base-T, Gigabit Ethernet 1000Base-T (IEEE 802.3)
- Token Ring 4/16Mbit/s, TP-PMD/TP/DDI 125Mbit/s, ATM 155Mbit/s (IEEE 802.5)
Standards
- IEC 61156-5
- ANSI/TIA-568.2-D
- ISO/IEC 11801

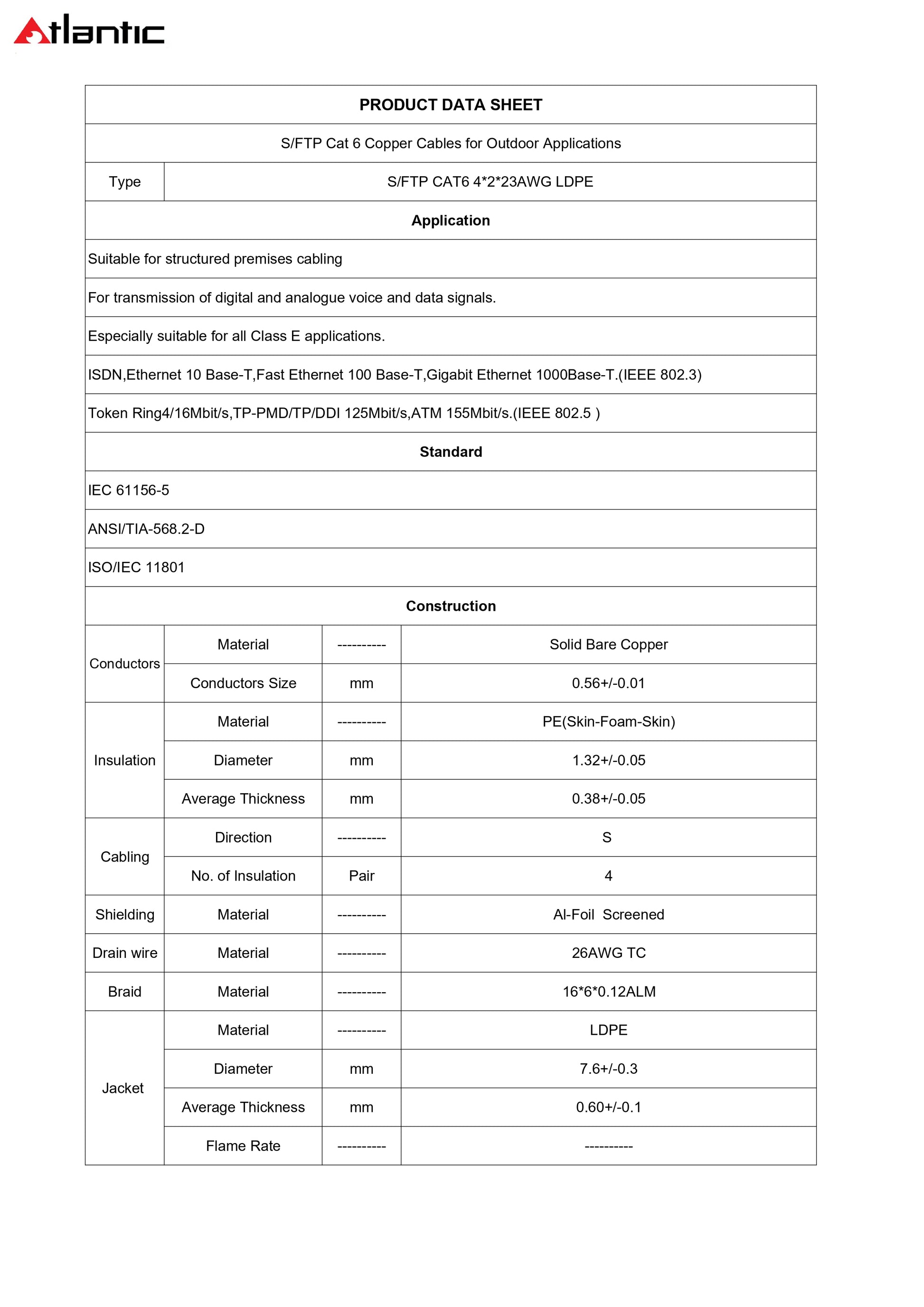

Construction
-
Conductor: Solid Bare Copper, 0.56mm ± 0.01
-
Insulation: PE (Skin-Foam-Skin), Diameter: 1.32mm ± 0.05, Thickness: 0.38mm ± 0.05
-
Cabling: Direction: S, 4 Pairs
-
Shielding: Al-Foil Screened
-
Drain Wire: 26AWG TC
-
Braid: 16*6*0.12ALM
-
Jacket: LDPE, Diameter: 7.6mm ± 0.3, Thickness: 0.60mm ± 0.1

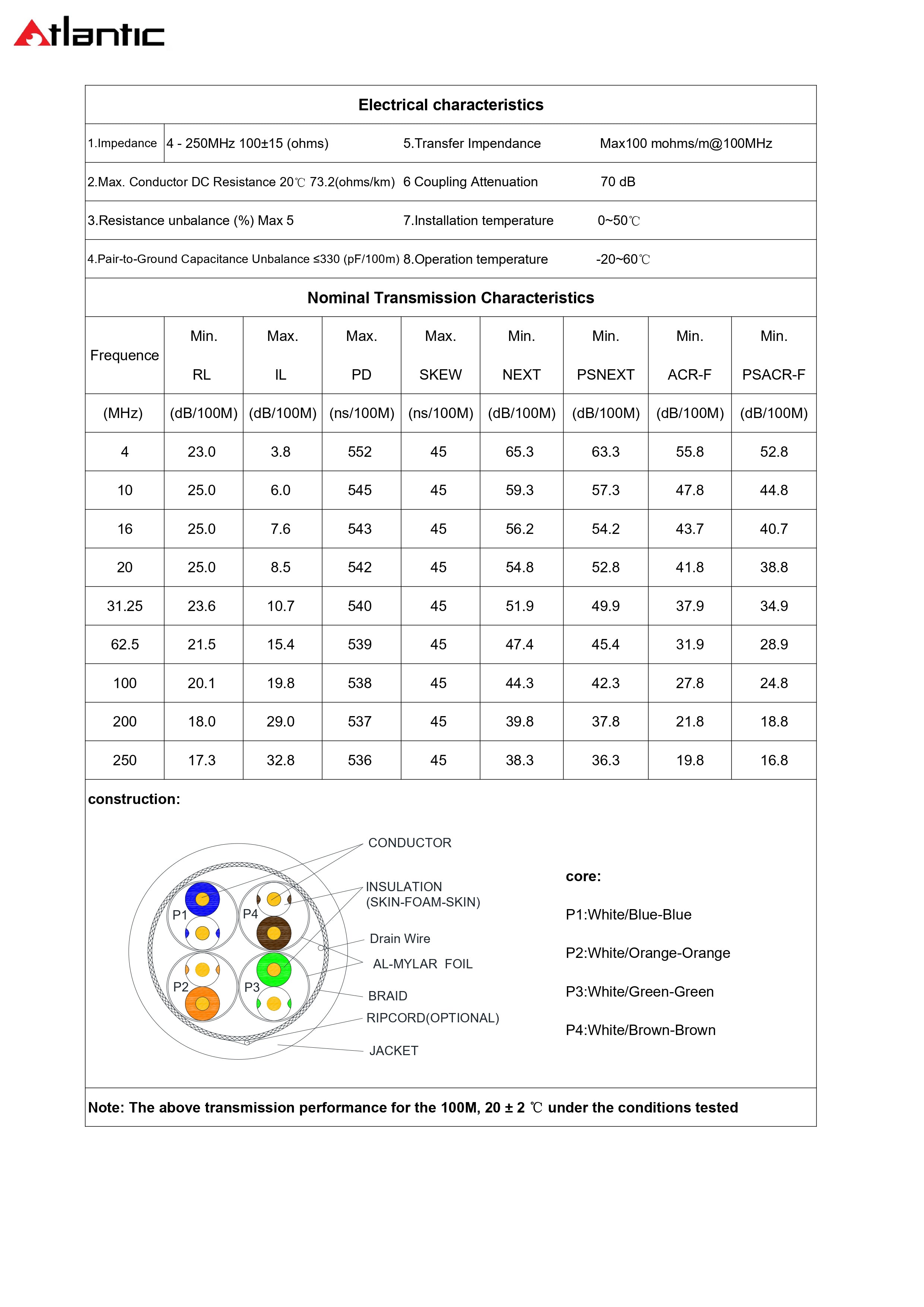

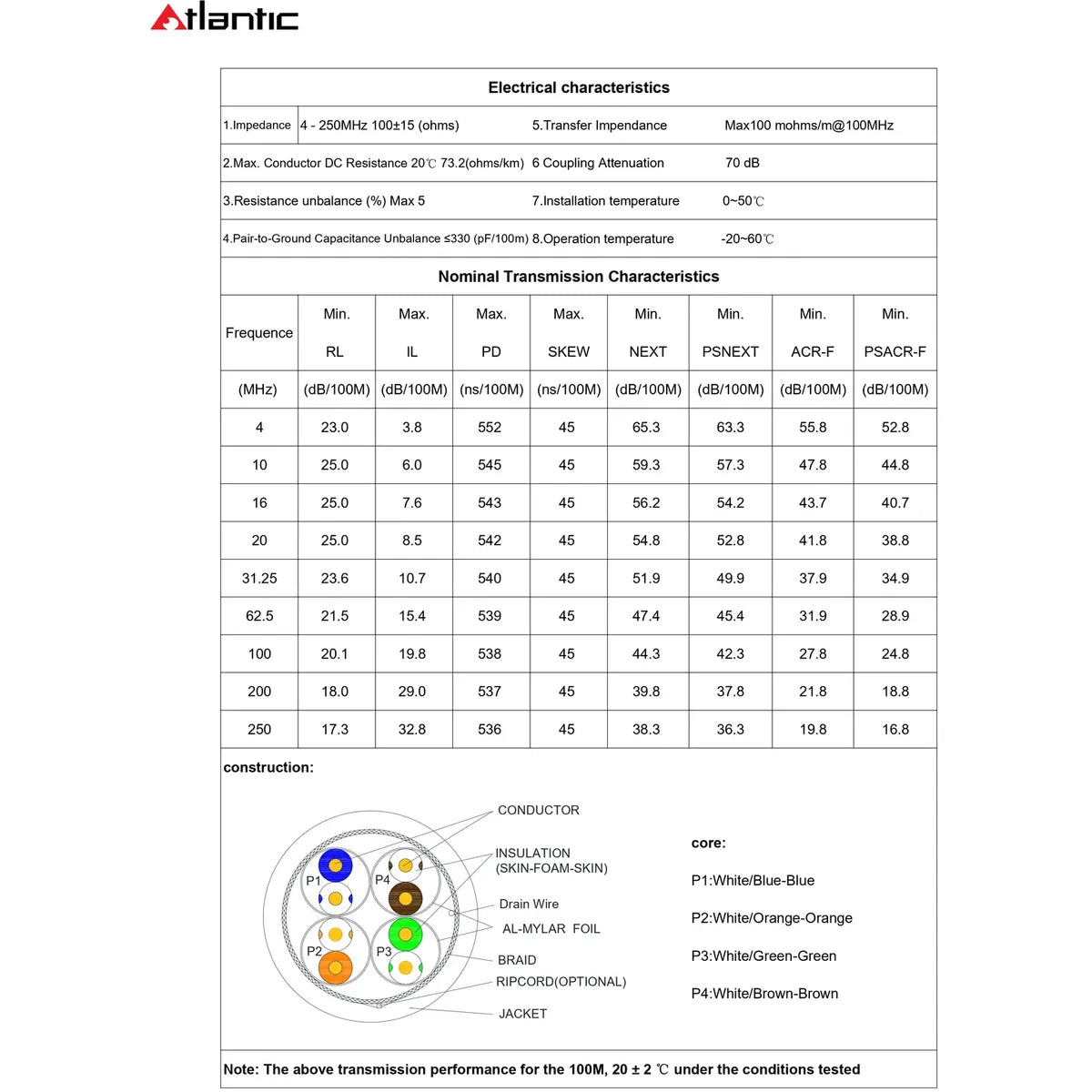

Electrical Characteristics
- Impedance: 100±15 ohms (4 - 250MHz)
- Max Conductor DC Resistance: 73.2 ohms/km @ 20℃
- Resistance Unbalance: Max 5%
- Pair-to-Ground Capacitance Unbalance: ≤330 pF/100m
- Transfer Impedance: Max 100 mohms/m @ 100MHz
- Coupling Attenuation: 70 dB
- Installation Temp: 0℃ to 50℃
- Operation Temp: -20℃ to 60℃
Nominal Transmission Characteristics
| Frequency (MHz) |
RL (dB/100M) |
IL (dB/100M) |
PD (ns/100M) |
SKEW (ns/100M) |
NEXT (dB/100M) |
PSNEXT (dB/100M) |
ACR-F (dB/100M) |
PSACR-F (dB/100M) |
| 4 |
23.0 |
3.8 |
552 |
45 |
65.3 |
63.3 |
55.8 |
52.8 |
| 10 |
25.0 |
6.0 |
545 |
45 |
59.3 |
57.3 |
47.8 |
44.8 |
| 16 |
25.0 |
7.6 |
543 |
45 |
56.2 |
54.2 |
43.7 |
40.7 |
| 20 |
25.0 |
8.5 |
542 |
45 |
54.8 |
52.8 |
41.8 |
38.8 |
| 31.25 |
23.6 |
10.7 |
540 |
45 |
51.9 |
49.9 |
37.9 |
34.9 |
| 62.5 |
21.5 |
15.4 |
539 |
45 |
47.4 |
45.4 |
31.9 |
28.9 |
| 100 |
20.1 |
19.8 |
538 |
45 |
44.3 |
42.3 |
27.8 |
24.8 |
| 200 |
18.0 |
29.0 |
537 |
45 |
39.8 |
37.8 |
21.8 |
18.8 |
| 250 |
17.3 |
32.8 |
536 |
45 |
38.3 |
36.3 |
19.8 |
16.8 |
Core Color Code
- P1: White/Blue-Blue
- P2: White/Orange-Orange
- P3: White/Green-Green
- P4: White/Brown-Brown
Note: The above transmission performance for the 100M, 20 ± 2 ℃ under the conditions tested.
