Product Description
Standards
Application
- High Speed Horizontal Cabling
- 100Mbps TPDDI
- 1000 Base-T
- 622 Mbps ATM
- IEEE 802.3
- 10 Base-T
- 100 Base-T4
- 100 Base-X
- IEEE 802.5 (100 Base-VG)
- Gigabit Ethernet
Construction
| Type |
Pairs |
Conductor |
Insulation Thickness
(mm/inch) |
Outer Diameter
(mm/inch) |
Jacket |
Insulation |
| SF/UTP |
4 |
23AWG (1/0.55mm) |
0.301 / 0.012 |
7.9 / 0.311 |
PVC |
HDPE |
Electrical Properties
-
Standard: ANSI/TIA-568-C.2
-
Max. conductor resistance: 9.38Ω/100m @20℃
-
Max. mutual capacitance: 5.6nF/100m
-
Max. resistance unbalance: 5%
-
Max. capacitance unbalance: 330 pF/100m
-
Impedance: 100 ± 15 Ω

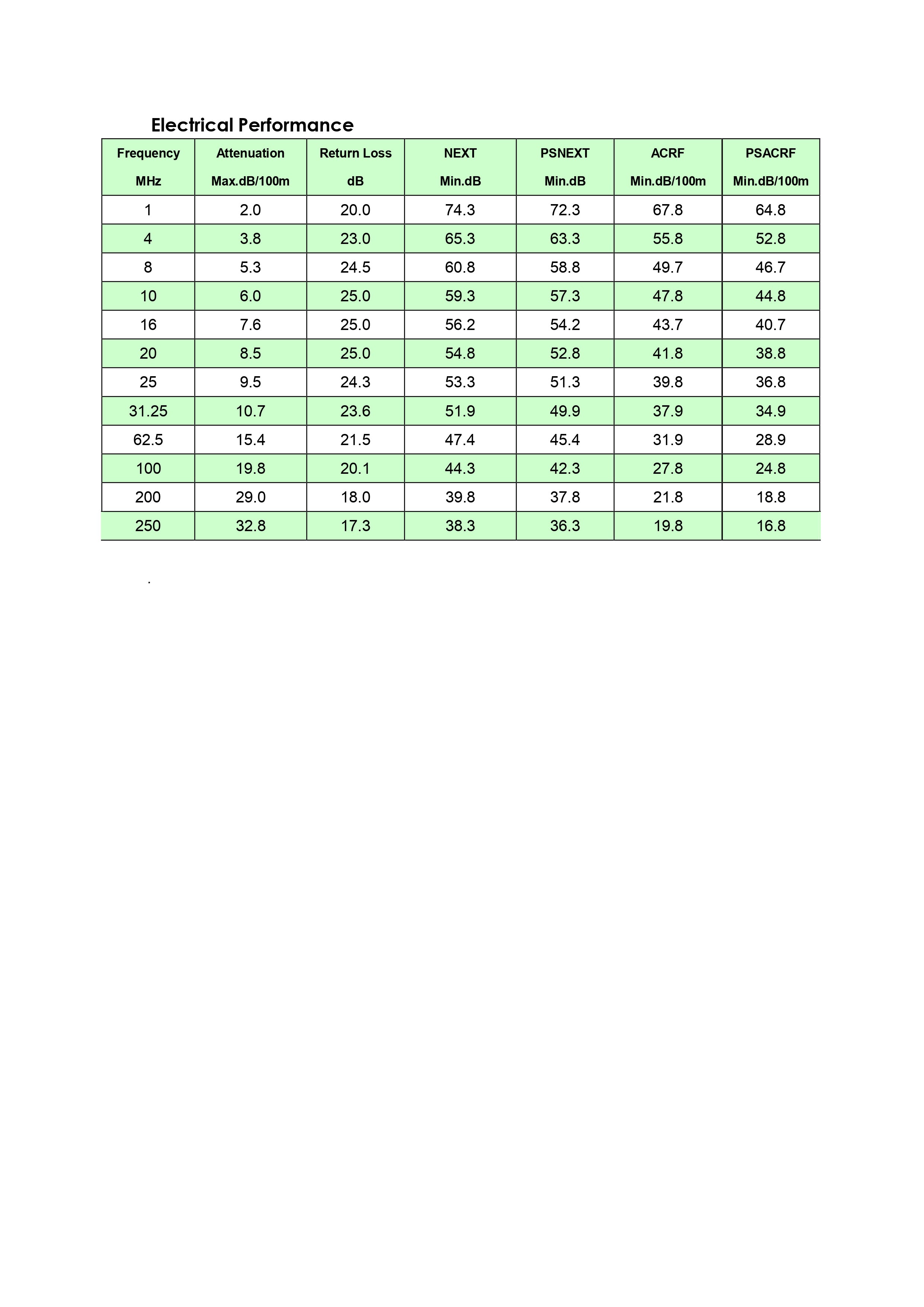

Electrical Performance
| Frequency (MHz) |
Attenuation
(Max. dB/100m) |
Return Loss
(dB) |
NEXT
(Min. dB) |
PSNEXT
(Min. dB) |
ACRF
(Min. dB/100m) |
PSACRF
(Min. dB/100m) |
| 1 |
2.0 |
20.0 |
74.3 |
72.3 |
67.8 |
64.8 |
| 4 |
3.8 |
23.0 |
65.3 |
63.3 |
55.8 |
52.8 |
| 8 |
5.3 |
24.5 |
60.8 |
58.8 |
49.7 |
46.7 |
| 10 |
6.0 |
25.0 |
59.3 |
57.3 |
47.8 |
44.8 |
| 16 |
7.6 |
25.0 |
56.2 |
54.2 |
43.7 |
40.7 |
| 20 |
8.5 |
25.0 |
54.8 |
52.8 |
41.8 |
38.8 |
| 25 |
9.5 |
24.3 |
53.3 |
51.3 |
39.8 |
36.8 |
| 31.25 |
10.7 |
23.6 |
51.9 |
49.9 |
37.9 |
34.9 |
| 62.5 |
15.4 |
21.5 |
47.4 |
45.4 |
31.9 |
28.9 |
| 100 |
19.8 |
20.1 |
44.3 |
42.3 |
27.8 |
24.8 |
| 200 |
29.0 |
18.0 |
39.8 |
37.8 |
21.8 |
18.8 |
| 250 |
32.8 |
17.3 |
38.3 |
36.3 |
19.8 |
16.8 |
