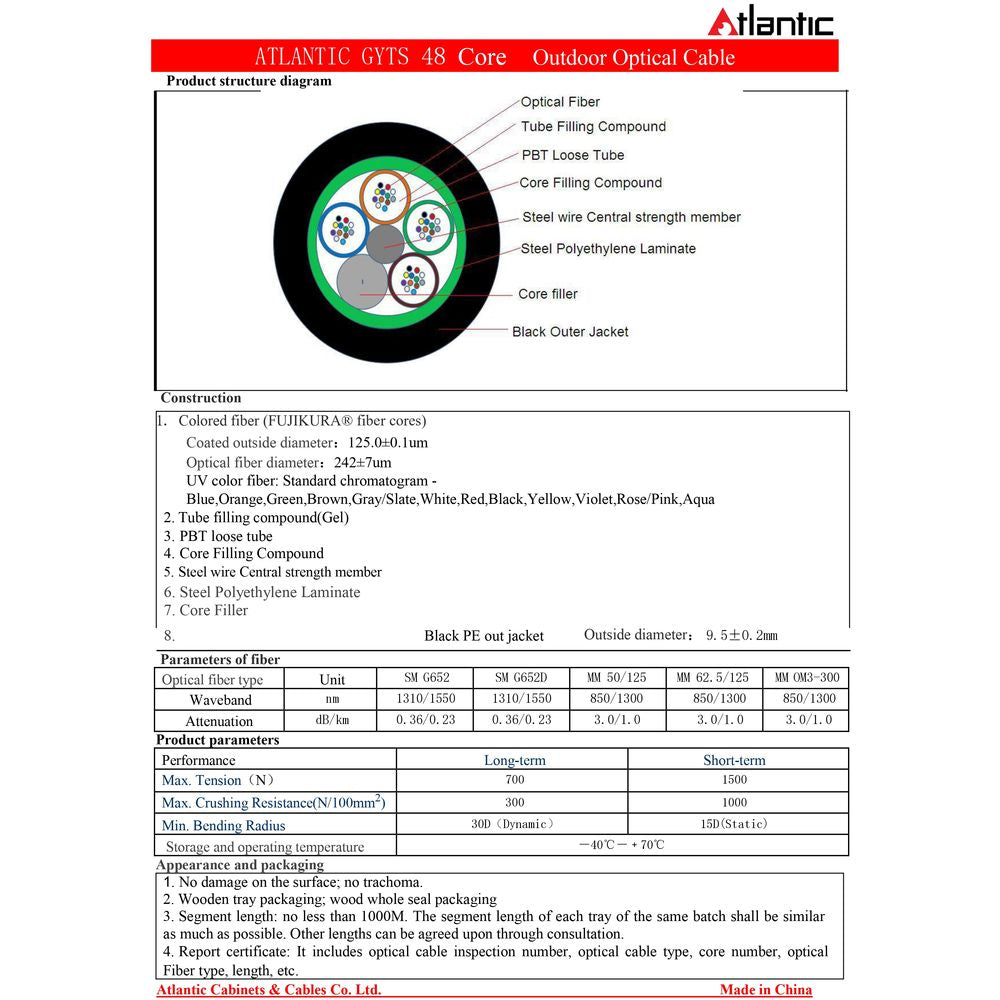

- Fiber type: FUJIKURA® colored fiber cores with a coated outside diameter of 125.0 ± 0.1um and optical fiber diameter of 242 ± 7um
- UV color coding: Blue, Orange, Green, Brown, Gray/Slate, White, Red, Black, Yellow, Violet, Rose/Pink, Aqua
- Tube filling compound: Gel for moisture protection
- PBT loose tube for added durability and protection
- Core filling compound for enhanced performance
- Steel wire central strength member for mechanical support
- Steel polyethylene laminate for improved strength and resistance
- Black PE outer jacket with a diameter of 9.5 ± 0.2mm for durability and environmental resistance
- Supports Single Mode (SM G652, SM G652D) and Multimode (OM3 50/125, MM 62.5/125)
- Waveband: SM - 1310/1550nm | MM - 850/1300nm
- Attenuation: SM - 0.36/0.23 dB/km | MM - 3.0/1.0 dB/km
- Maximum Tension: 700N (long-term), 1500N (short-term)
- Maximum Crushing Resistance: 1500 N/100mm (long-term), 300 N/100mm (short-term)
- Minimum Bending Radius: 30D (dynamic), 15D (static)
- Storage and operating temperature: -40°C to +70°C
- No surface damage, with wooden tray packaging and sealed wooden packaging
- Segment length: ≥1000m per reel, with optical cable inspection report included (core number, type, fiber type, length, etc.)
