Atlantic 1KM Fiber Optic Cable 12/24 Core SM- G652D + 2x2.5MM AC FUJKURA Core
Atlantic 1KM Fiber Optic Cable 12/24 Core SM- G652D + 2x2.5MM AC FUJKURA Core
Regular price
2,000,000 IQD
Sale price
2,000,000 IQD
Regular price
0 IQD
Shipping calculated at checkout.
Available in stock

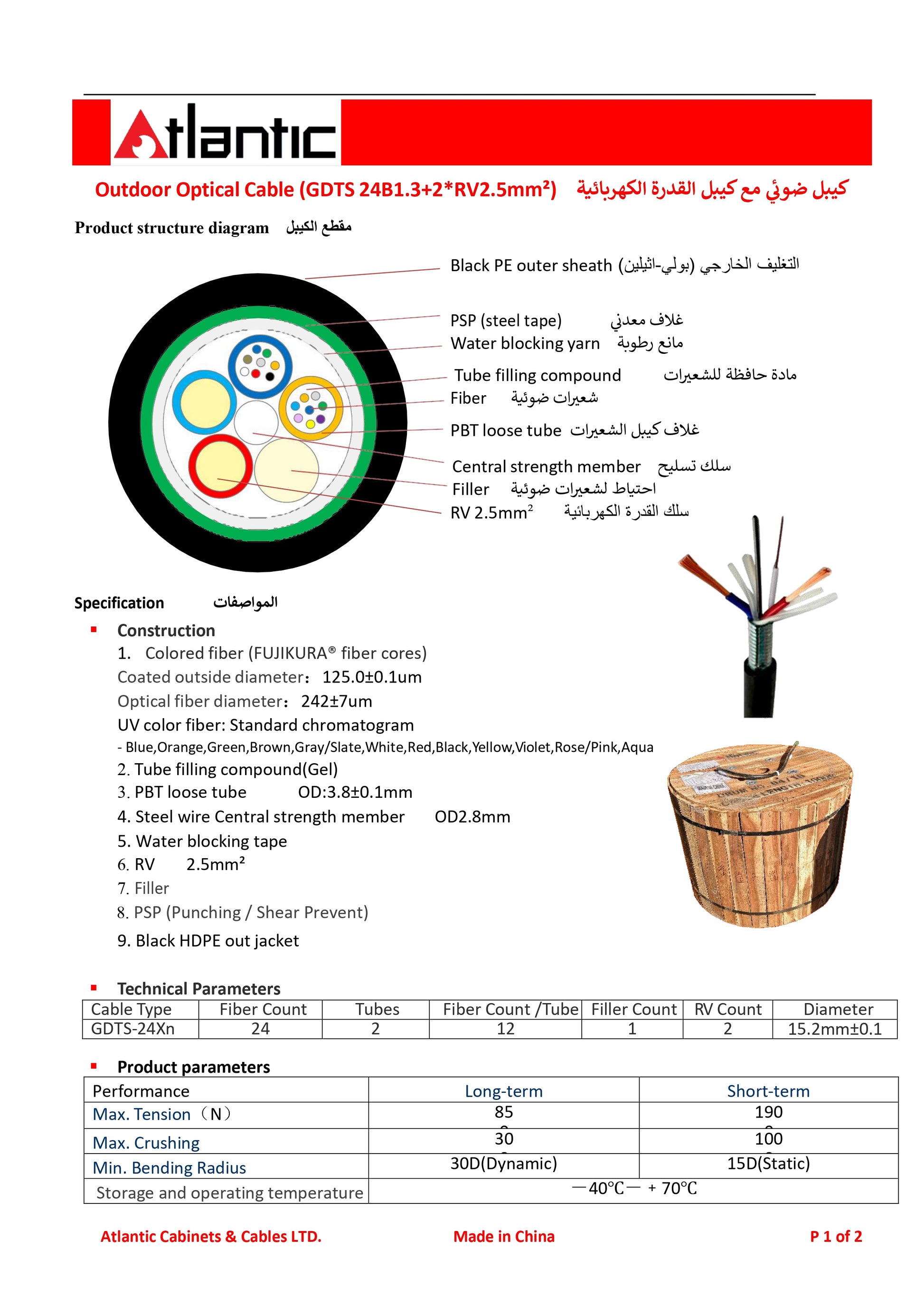

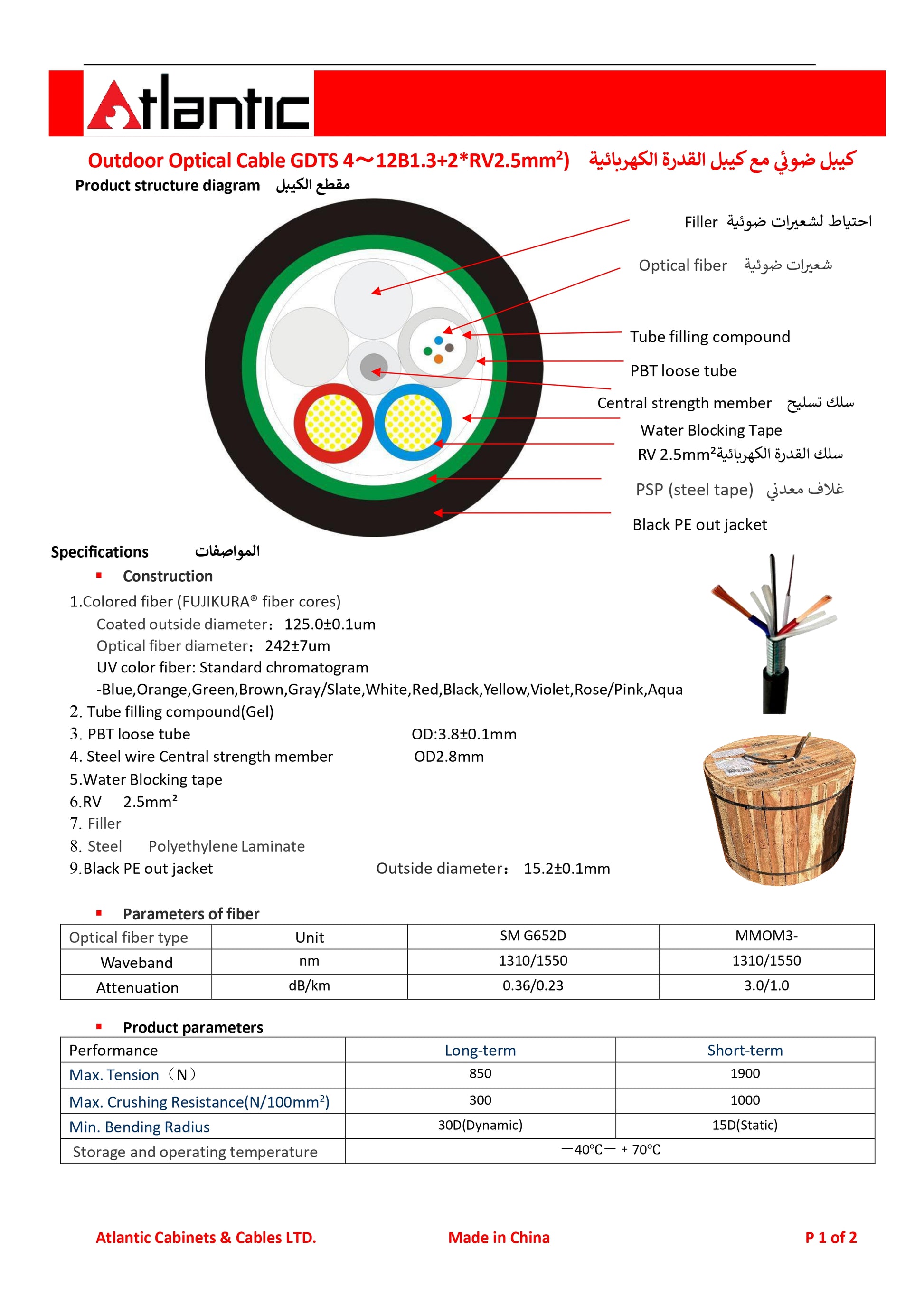

- Fiber Diameter: Coated outside diameter: 125.0 ± 0.1 µm, Optical fiber diameter: 242 ± 7 µm
- Fiber Color: Standard chromatogram includes Blue, Orange, Green, Brown, Gray/Slate, White, Red, Black, Yellow, Violet, Rose/Pink, Aqua
- Tube Filling Compound: Gel filling for water-blocking and protection
- PBT Loose Tube Diameter: 3.8 ± 0.1 mm
- Steel Wire Central Strength Member: 2.8 mm diameter for enhanced mechanical strength
Water Blocking Tape: Provides additional moisture resistance
- Filler: Used to maintain the shape and integrity of the cable
- PSP (Punching / Shear Prevent): Enhanced protection for the cable’s core
- Outer Jacket: Black HDPE (High-Density Polyethylene) for durability and UV resistance
- Cable Diameter: 15.2 ± 0.1 mm (12 / 24 Core Optical Fiber Cable with 2 x RV 2.5mm²)
- Max. Tension: 85N (long-term), 190N (short-term)
- Max. Crushing Resistance: 300 N/100mm (long-term), 1000 N/100mm (short-term)
- Min. Bending Radius: 30D (dynamic), 15D (static)
- Operating and Storage Temperature: -40°C to +70°C

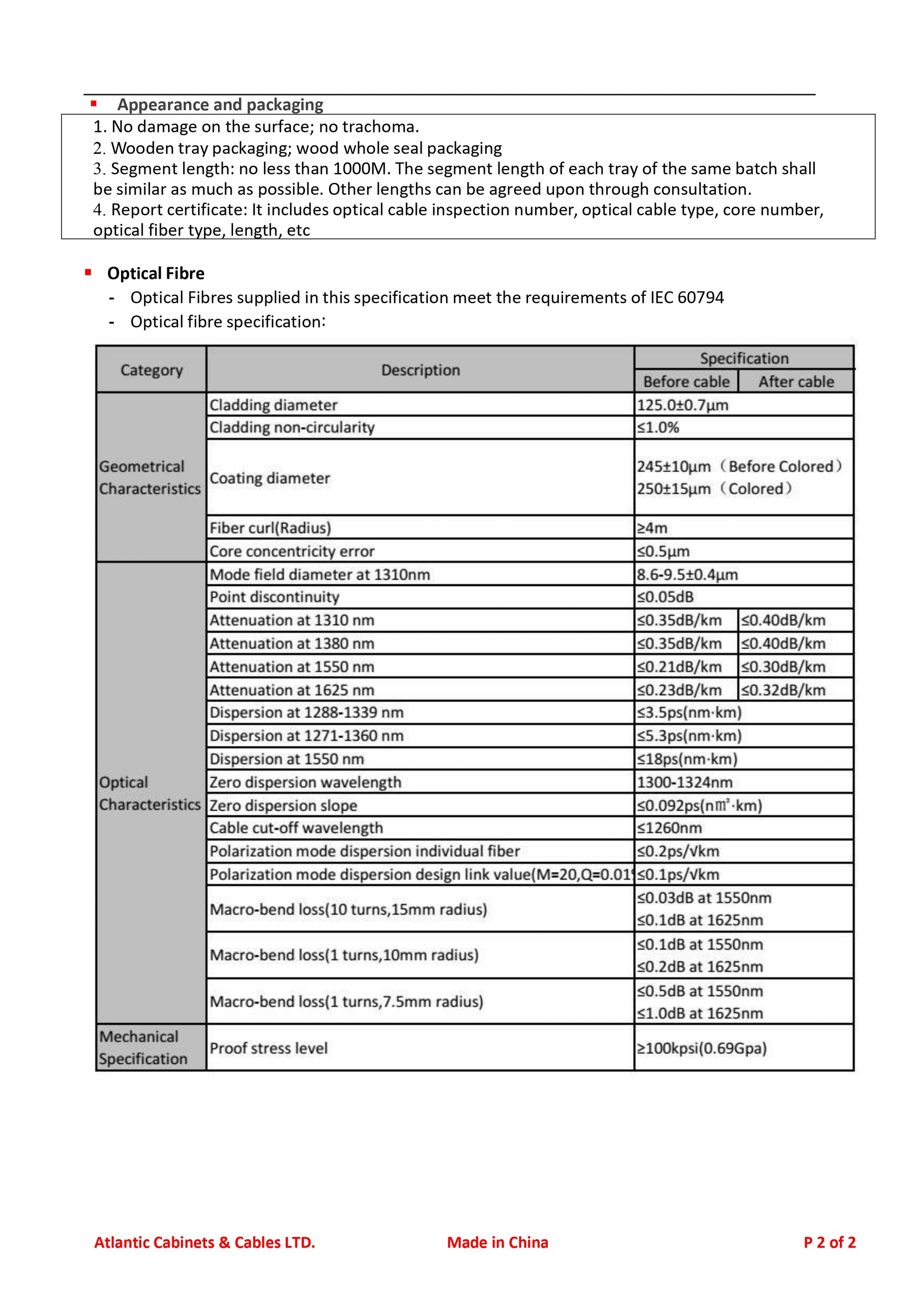

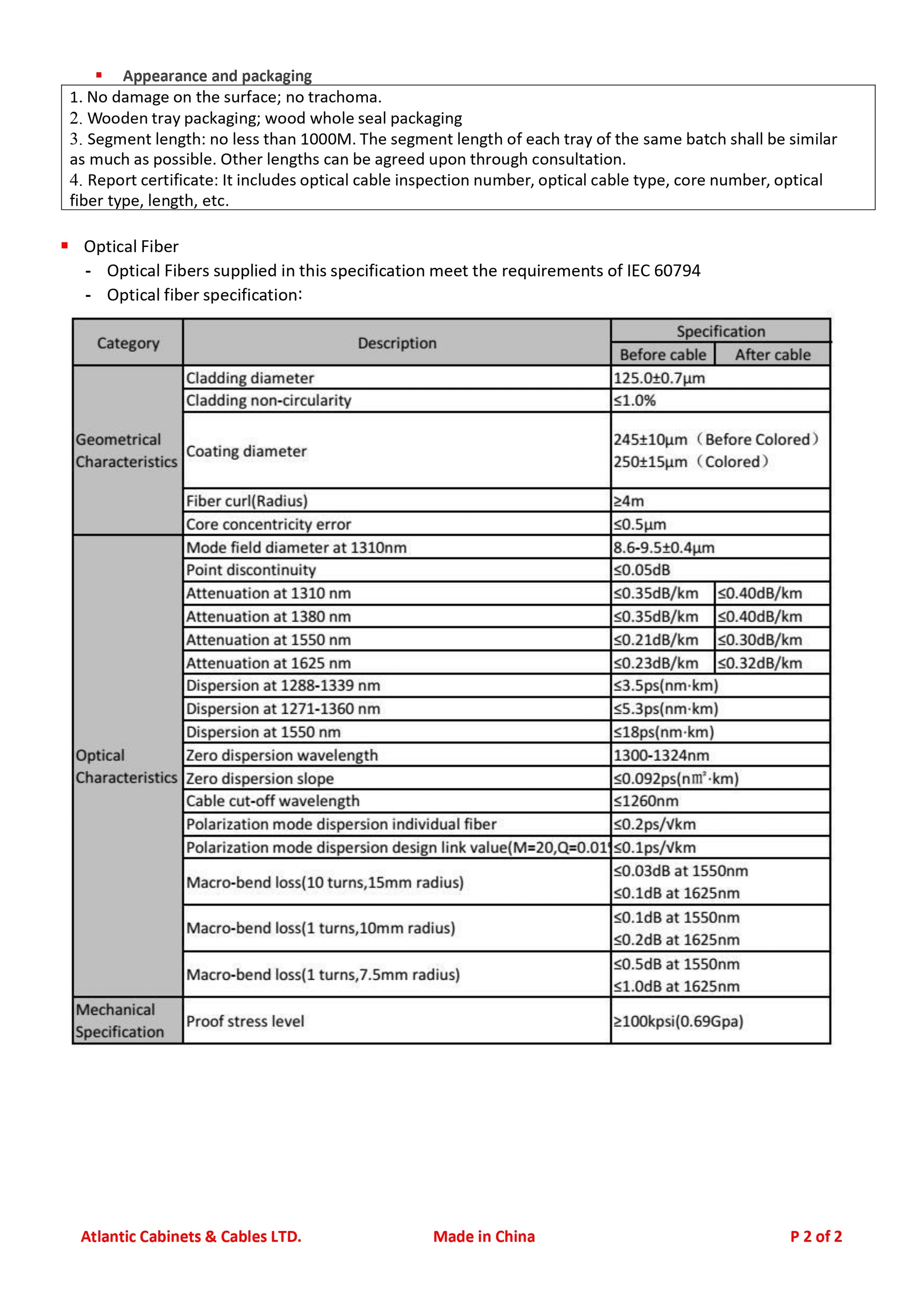

- No surface damage; packaged in sealed wooden trays with wood whole-seal packaging
- Segment Length: No less than 1000m, with each tray from the same batch as similar as possible
- Inspection Certificate: Includes optical cable inspection number, cable type, core number, optical fiber type, and length
