Product Description:

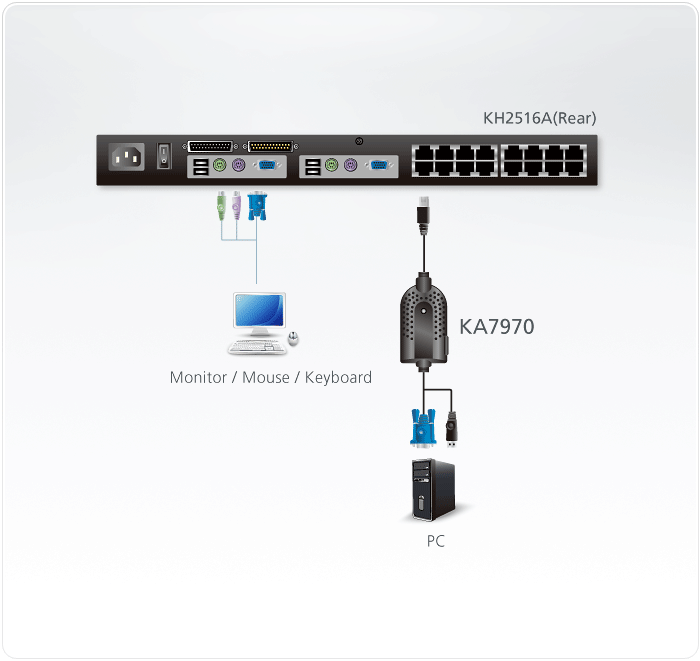

The ATEN KA7970 is a compact USB VGA KVM adapter cable designed for seamless server management in rackmount and desktop setups. Built with a 4.5-meter integrated Cat 5 cable, it ensures reliable performance and optimal video quality up to 1600 x 1200 resolution. This adapter supports keyboard and mouse emulation, hot-pluggable functionality, and lifetime firmware upgrades, making it an essential tool for small to mid-sized KVM switch installations.
Key Features:
- USB VGA KVM adapter cable with built-in 4.5m Cat 5 cable
- Keyboard and mouse emulation – maintains server functionality during disconnection or relocation
- Superior video quality – supports resolutions up to 1600 x 1200 within a 4.5m range
- Hot-pluggable – add or remove servers without needing to power down the KVM switch
- Compact and lightweight design for easy deployment
- Lifetime firmware upgrades supported
Specifications:
-
Model: KA7970
- Connectors:
- Link: 1 x RJ-45 Male with 4.5m Cat 5 cable
- Computer: 1 x USB Type-A Male, 1 x HDB-15 Male (VGA)
-
LED Indicator: 1 x Online (Orange)
-
Video Resolution: Up to 1600 x 1200
-
Emulation: Keyboard and mouse
-
Hot Pluggable: Yes
-
Operating Temperature: 0 – 50°C
-
Storage Temperature: -20 – 60°C
-
Material: Plastic housing
-
Dimensions: 7.93 x 3.70 x 1.55 cm (3.12 x 1.46 x 0.61 in.)
-
Weight: 0.24 kg (0.53 lb)
