Product Description:
The ATEN UH3238 is a compact and lightweight USB-C travel dock designed to simplify your mobile workstation. This 5-in-1 portable docking solution includes 2 USB Type-A ports, 1 HDMI port supporting 4K @ 60Hz, an audio jack, and a USB-C DC-in port with power pass-through support up to 92W via USB Power Delivery 3.0. It is compatible with Thunderbolt™ 3 and USB 3.2 Gen 1 interfaces, providing high-speed data transfer up to 5 Gbps. Plug-and-play functionality and cross-platform support for Windows®, macOS, iPadOS, and Android make the UH3238 ideal for business travelers and remote professionals.
Key Features:

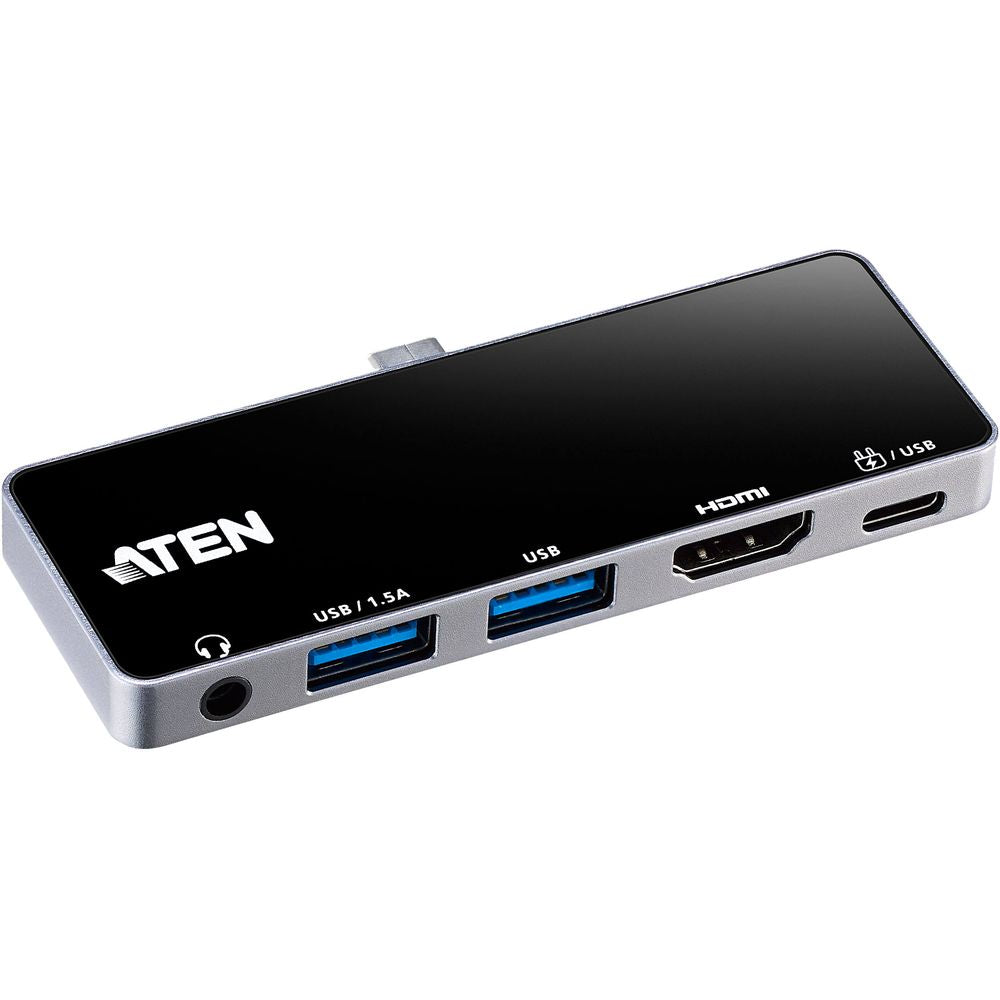

- 5-in-1 USB-C travel dock: 2 x USB Type-A, 1 x HDMI, 1 x USB-C PD, and 1 x 3.5mm audio jack
- Supports USB Power Delivery 3.0 charging up to 92W
- HDMI output supports up to 3840 x 2160 @ 60Hz (requires DP 1.4 Alt Mode source)
- Compatible with Thunderbolt™ 3, Windows®, macOS, iPad Pro (USB-C), and Android
- Plug and play — no drivers or software installation needed
- Ultra-compact and lightweight aluminum body — weighs only 44 g
Specifications:
| Model |
UH3238 |
| Video Output |
1 x HDMI Female (up to 4K @ 60Hz) |
| USB Ports |
- 1 x USB 3.2 Gen 1 Type-A (5V, 7.5W)
- 1 x USB 3.2 Gen 1 Type-A (5V, 4.5W)
- 1 x USB 3.2 Gen 1 Type-C (Power & Data)
|
| Audio |
1 x 3.5mm stereo 4-pole headphone/microphone jack |
| Power Input |
USB-C PD 3.0, up to 92W (5V/9V/15V/20V) |
| Data Rate |
Up to 5 Gbps (USB 3.2 Gen 1) |
| Compatibility |
- Windows 10 or later
- macOS X 10.12 or later
- iPadOS 13.1 or later
- Android 8.0 or later (USB-C with DP Alt Mode)
|
| Housing |
Aluminum |
| Dimensions |
9.00 x 3.20 x 0.82 cm |
| Weight |
44 g |
| Operating Temperature |
0 – 40 °C |
| Storage Temperature |
-20 – 60 °C |
Ideal For:
Professionals on the go, remote workers, educators, and creatives who need a compact and capable USB-C docking station with HDMI and power pass-through.
