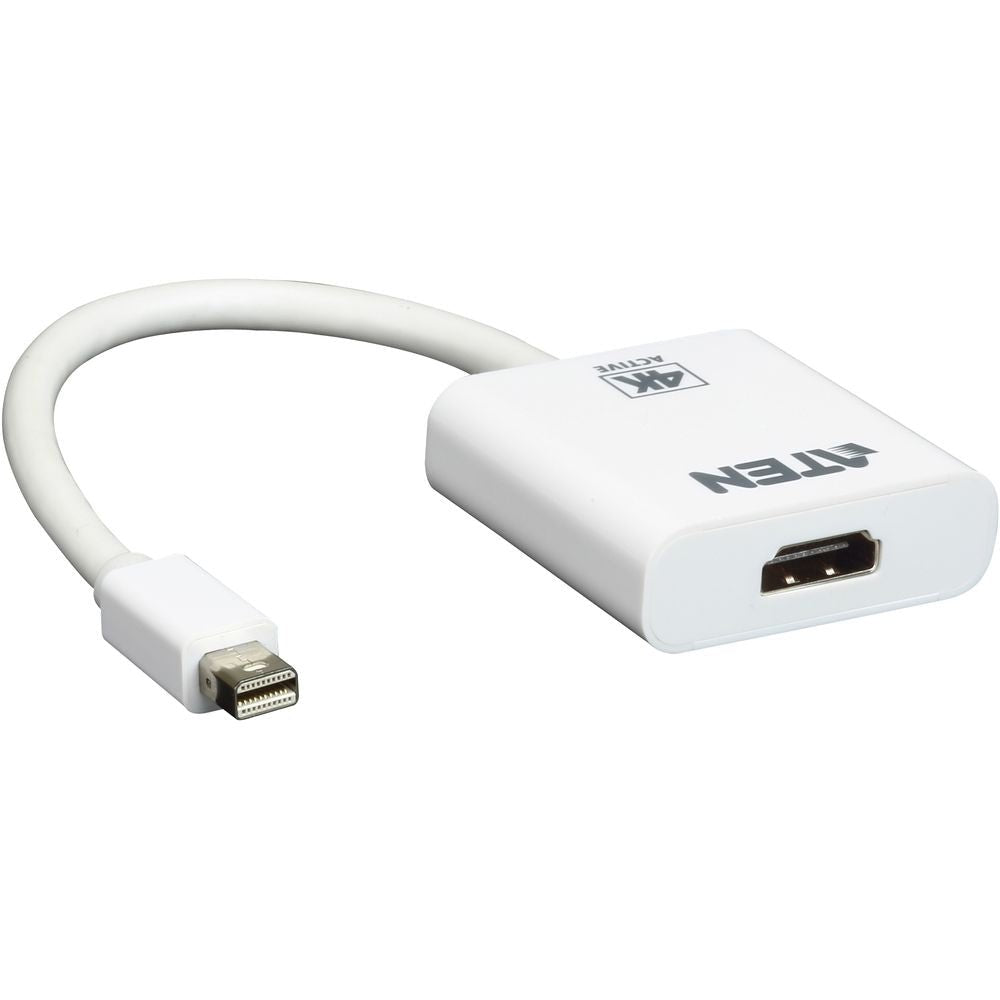

Product Description:
The ATEN VC981 is a high-performance active Mini DisplayPort to HDMI adapter designed to connect Mini DisplayPort-enabled devices to HDMI displays. It supports resolutions up to 3840x2160 @ 30Hz, making it ideal for high-definition video presentations, home entertainment, and workstation setups. The adapter features advanced active conversion for stable performance, even with devices that do not support Dual-Mode DisplayPort (DP++). Compact, reliable, and plug-and-play, it's compatible with both Windows and macOS systems.
Key Features:
- Converts Mini DisplayPort to HDMI with audio support
- Supports high-resolution output up to 4K UHD (3840x2160 @ 30Hz)
- Active adapter – works even if source device lacks DP++ support
- Compatible with VGA, SVGA, XGA, SXGA, UXGA, and 1080p displays
- AMD Eyefinity™ Technology support for multi-screen environments
- Plug-and-play – no software or driver installation required
- DisplayPort 1.2 compliant; supports HDMI 1.4 features including 3D and Deep Color
Specifications:
| Model |
VC981 |
| Input |
1 x Mini DisplayPort Male |
| Output |
1 x HDMI Type A Female |
| Max Resolution |
3840x2160 @ 30Hz; 1920x1200 @ 60Hz |
| Max Pixel Clock |
297 MHz |
| Max Data Rate |
10.2 Gbps (3.4 Gbps per lane) |
| Compliance |
DP 1.2a, HDMI 1.4, HDCP 1.3 |
| Audio |
Supported via HDMI output |
| Operating Temperature |
0 – 50 °C |
| Storage Temperature |
-20 – 60 °C |
| Humidity |
0 – 80% RH, Non-Condensing |
| Housing |
Plastic |
| Dimensions |
17.5 x 4.5 x 1.5 cm |
| Weight |
0.04 kg |
Applications:

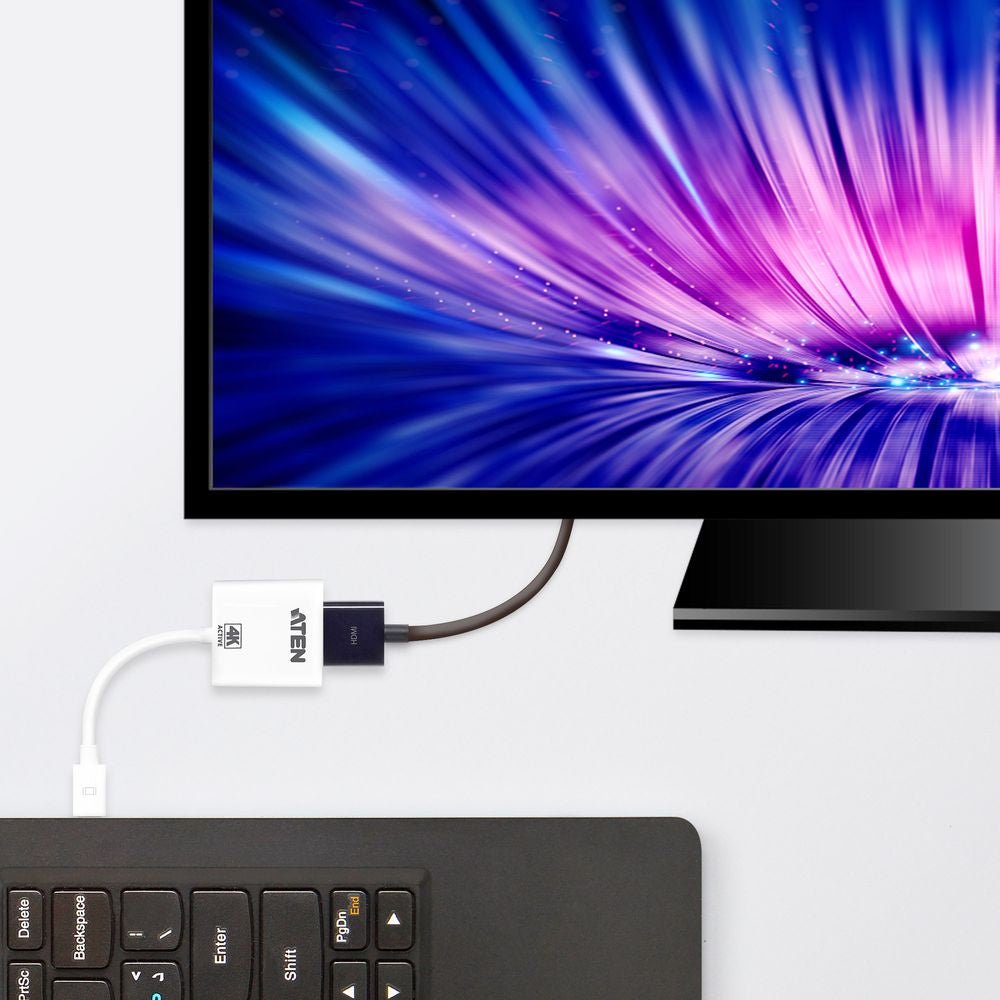

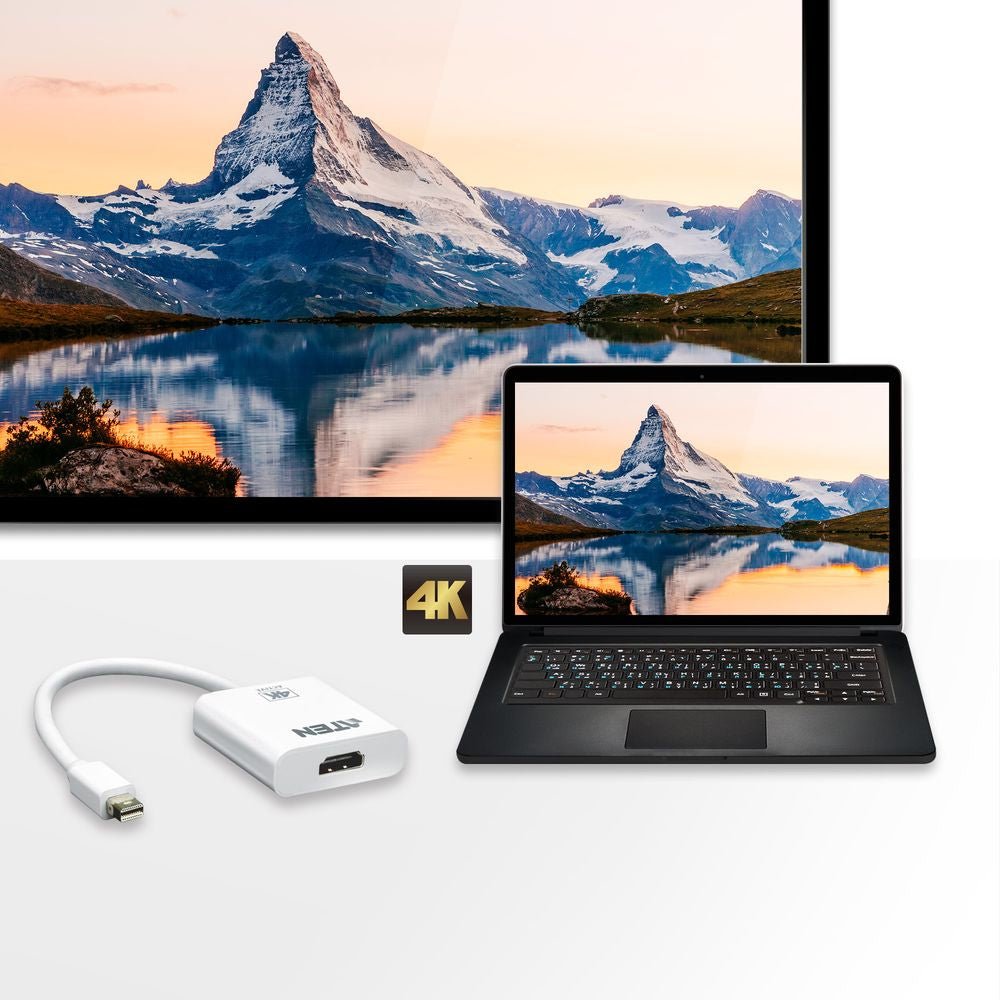

Perfect for extending your display to 4K TVs, external monitors, or projectors from Mini DisplayPort-enabled laptops, desktops, or tablets.
