ATEN 4K HDMI Extender Over Cat 5e/6, Up to 40m, Zero Latency, EDID Control, IR Pass-Through, Local Loop-Out, PoC, HDCP 1.4, Plug-and-Play

Roll over image to zoom in Click on image to zoom

ATEN 4K HDMI Extender Over Cat 5e/6, Up to 40m, Zero Latency, EDID Control, IR Pass-Through, Local Loop-Out, PoC, HDCP 1.4, Plug-and-Play

Name: ATEN 4K HDMI Extender Over Cat 5e/6, Up to 40m, Zero Latency, EDID Control, IR Pass-Through, Local Loop-Out, PoC, HDCP 1.4, Plug-and-Play
Brand: ATEN
SKU: VE1821
Price: 109000.0 IQD
Availability: InStock

Save 4%

ATENSKU: VE1821

Price:

109,000 IQD 114,000 IQD

Quantity:

Share this product

Features:

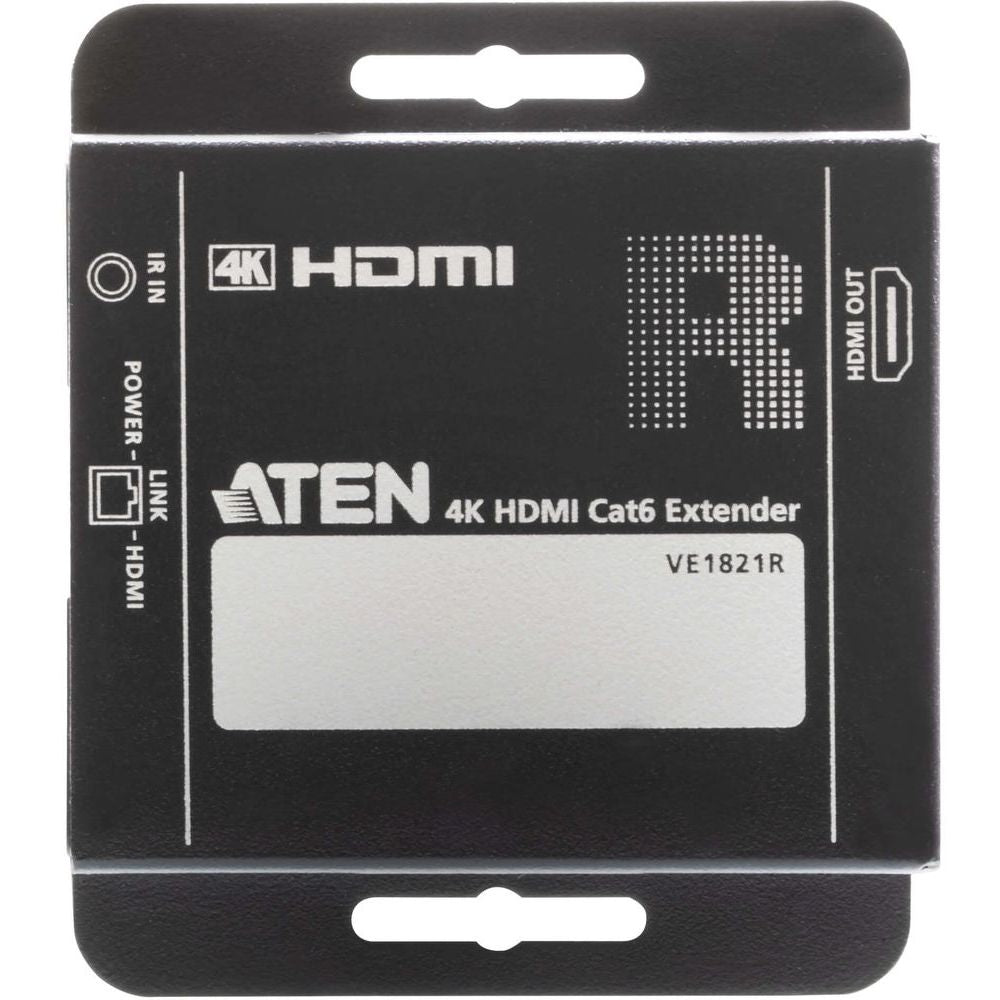

Includes a transmitter and a receiver to work in tandem to extend 4K HDMI signals over a Cat 5e / 6 cable

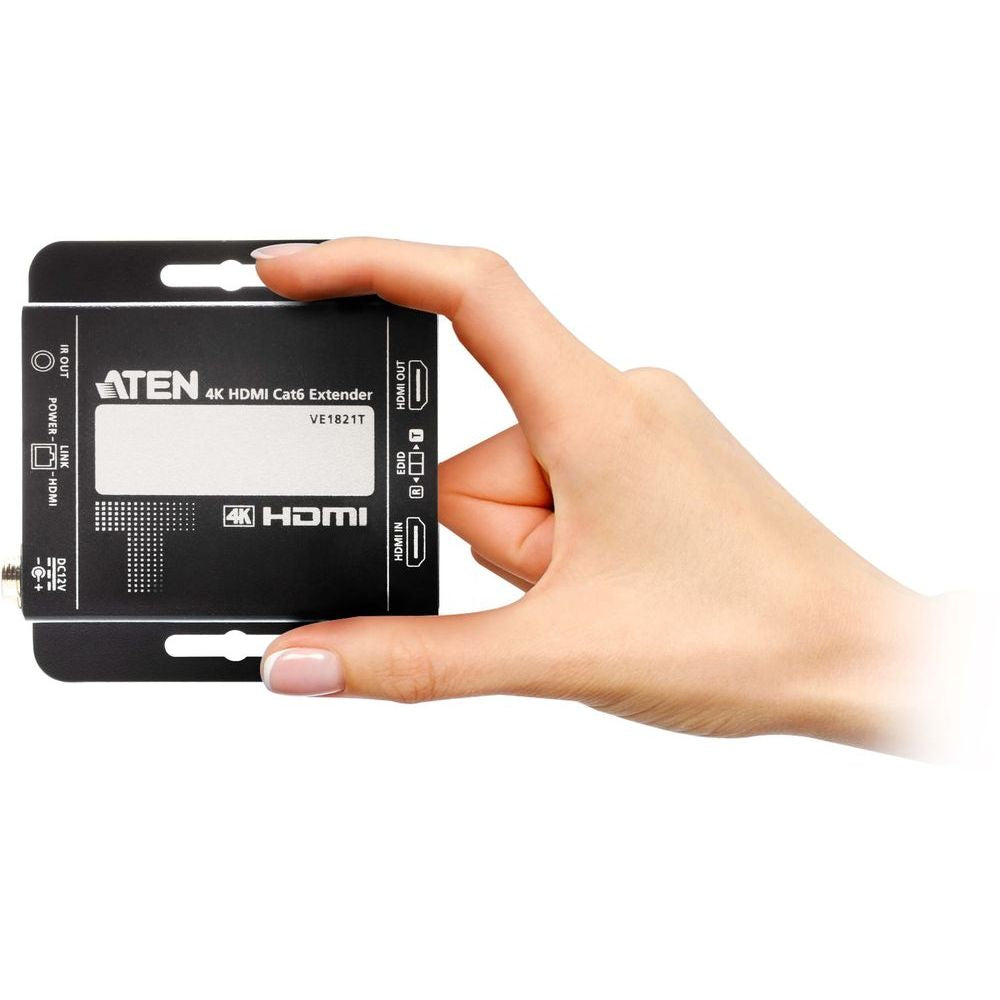

Ultra lightweight, palm-sized enclosure for easy mounting or placement in tight spaces
Crystal clear 4K HDMI transmission with zero latency across up to 40 m via a Cat 6 cable (ATEN 2L-2910 recommended) /30 m via a Cat 5e cable

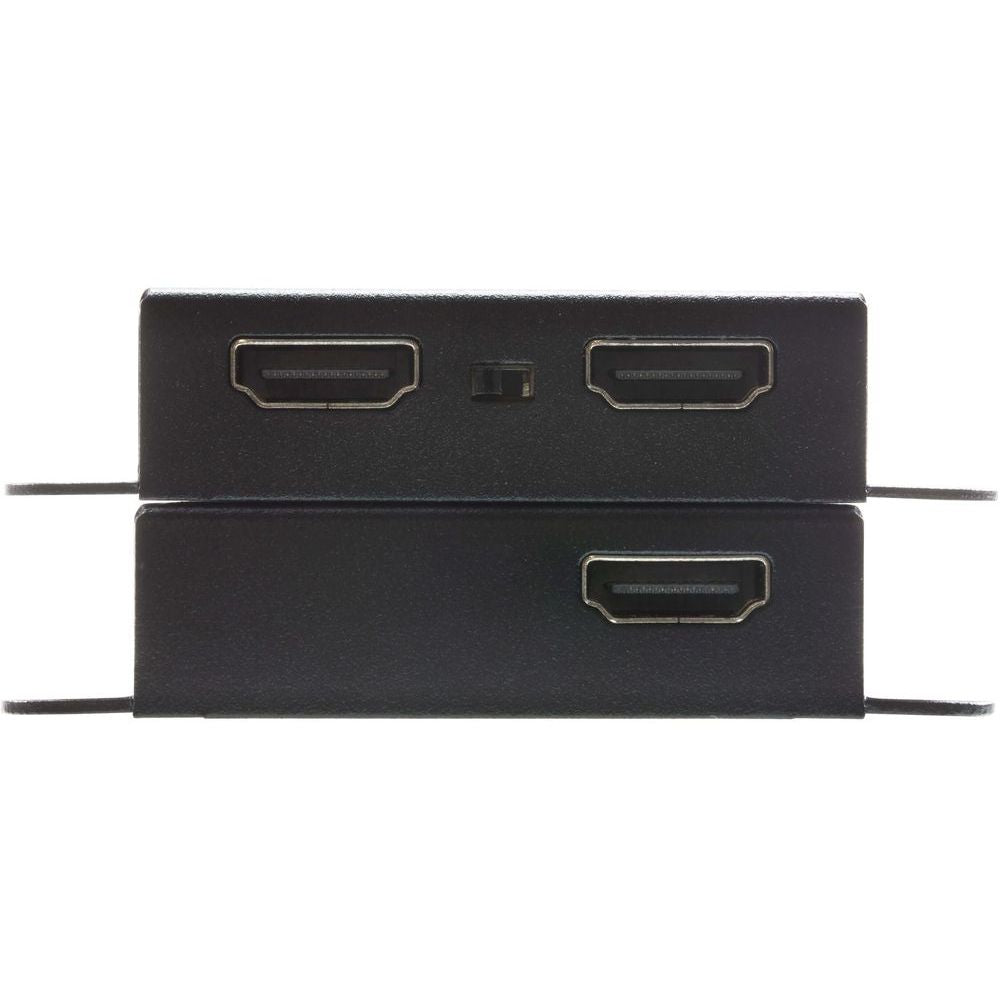

Local HDMI output port on the transmitter unit – enables cascading or users to monitor the UHD signal being extended to the receiver
Built-in EDID switch – users can control which EDID is taken from either display
EDID Copying Mode – HDMI source can be displayed at the optimal resolution based on the capabilities of the connected display
IR signal transmission – the source device connected to the transmitter can be seamlessly controlled from the receiver side
PoC (Power over Cable) technology – power can be delivered from the transmitter to the receiver via a Cat 5e / 6 cable to eliminate the need for a bulky external power supply
HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant
Built- in ESD protection
Plug-and-play – no additional software needed

Function	VE1821R	VE1821T
Video Input
Interfaces	N/A	1 x HDMI Type A Female (Black)
Impedance	N/A	100 Ω
Max. Distance	N/A	3 m
Video Output
Interfaces	1 x HDMI Type A Female (Black)	1 x HDMI Type A Female (Black)
Impedance	100 Ω	100 Ω
Max. Distance	3 m	3 m
Video
Max. Data Rate	10.2Gbps (3.4Gbps per lane)	10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock	340 MHz	340 MHz
Compliance	HDMI (3D, Deep Color, 4K) HDCP1.4 Compatible	HDMI (3D, Deep Color, 4K) HDCP1.4 Compatible
Max. Resolutions / Distance	Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910); 1080p@35m (Cat5e), 50m (Cat 6/2L-2910) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)	Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910); 1080p@35m (Cat5e), 50m (Cat 6/2L-2910) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input	N/A	1 x HDMI Type A Female (Black)
Output	1 x HDMI Type A Female (Black)	N/A
Control
IR Channel	1 x Mini Stereo Jack Female (Black); Single way bypass channel from receiver to transmitter	1 x Mini Stereo Jack Female (Black); Single way bypass channel from receiver to transmitter
Switches
Mode Switch	N/A	EDID Mode Selection (Read EDID from Transmitter HDMI output or Receiver HDMI output)
Connectors

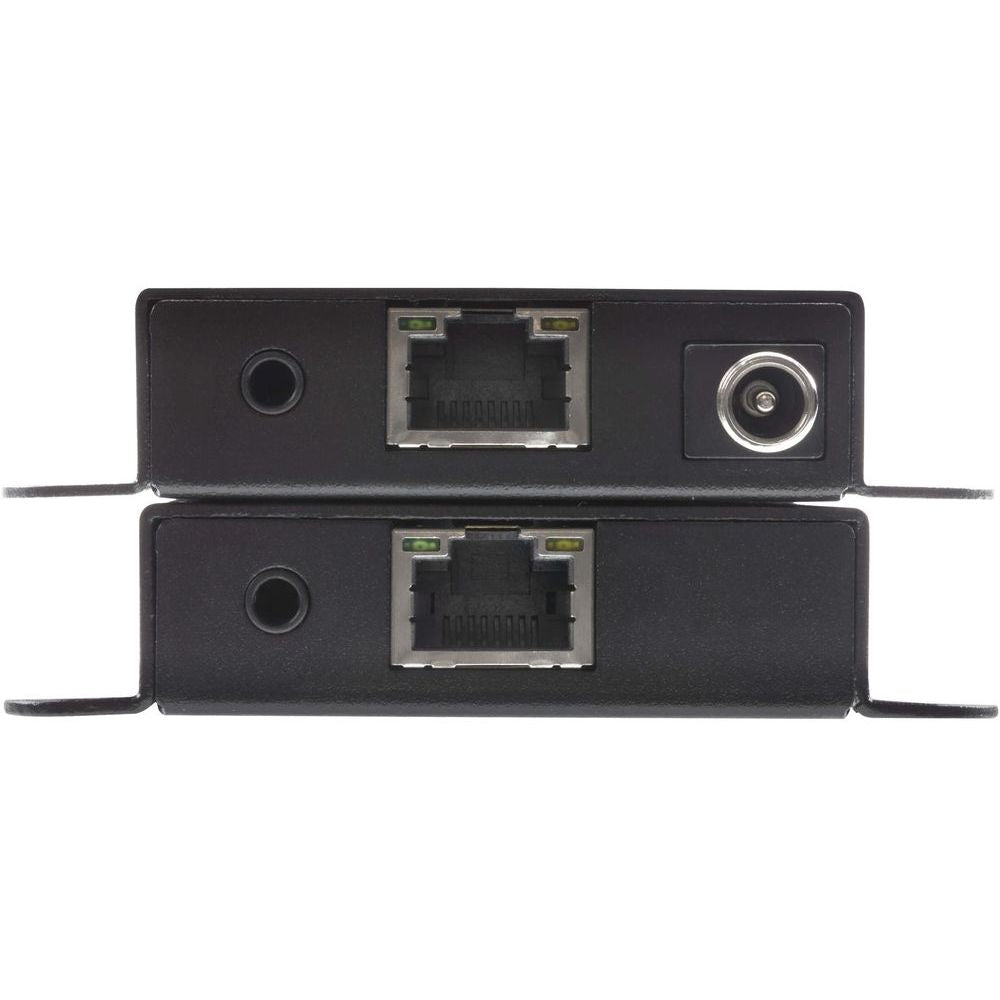

Power	1 x RJ-45 Female (Power over Cable, power supply from VE1821T)	1 x DC Jack (Black) with locking
Unit To Unit	1 x RJ-45 Female	1 x RJ-45 Female
Power Consumption	POC:0.87W:4BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.	DC12V:1.86W:9BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0 - 40°C	0 - 40°C
Storage Temperature	-20 - 60°C	-20 - 60°C
Humidity	20 - 90% RH, Non-Condensing	20 - 90% RH, Non-Condensing
Physical Properties
Housing	Metal	Metal
Weight	0.12 kg ( 0.28 lb )	0.12 kg ( 0.28 lb )
Dimensions (L x W x H) with bracket	7.95 x 6.80 x 1.65 cm (3.13 x 2.68 x 0.65 in.)	7.95 x 6.80 x 1.65 cm (3.13 x 2.68 x 0.65 in.)
Dimensions (L x W x H) without bracket	5.75 x 6.80 x 1.65 cm (2.26 x 2.68 x 0.65 in.)	5.75 x 6.80 x 1.65 cm (2.26 x 2.68 x 0.65 in.)

Input Resolutions	640x480 @ 60/75 Hz	1920x1080 @ 60 Hz
	800x600 @ 60/75 Hz	1920x1200 @ 60 Hz
	1024x768 @ 60/75 Hz	480p @ 60 Hz (4:3)/(16:9)
	1280x800 @ 60 Hz	576p @ 50 Hz (4:3)
	1280x1024 @ 60/75 Hz	640x480 @ 60Hz (4:3)
	1400x1050 @ 60 Hz	720p @ 50/60 Hz
	1440x900 @ 60 Hz	1080p @ 24/25/30/50/60 Hz
	1600x1200 @ 60 Hz	3840x2160p @ 24/25/30 Hz
	1680x1050 @ 60 Hz	4096x2160p @ 24/25/30 Hz
