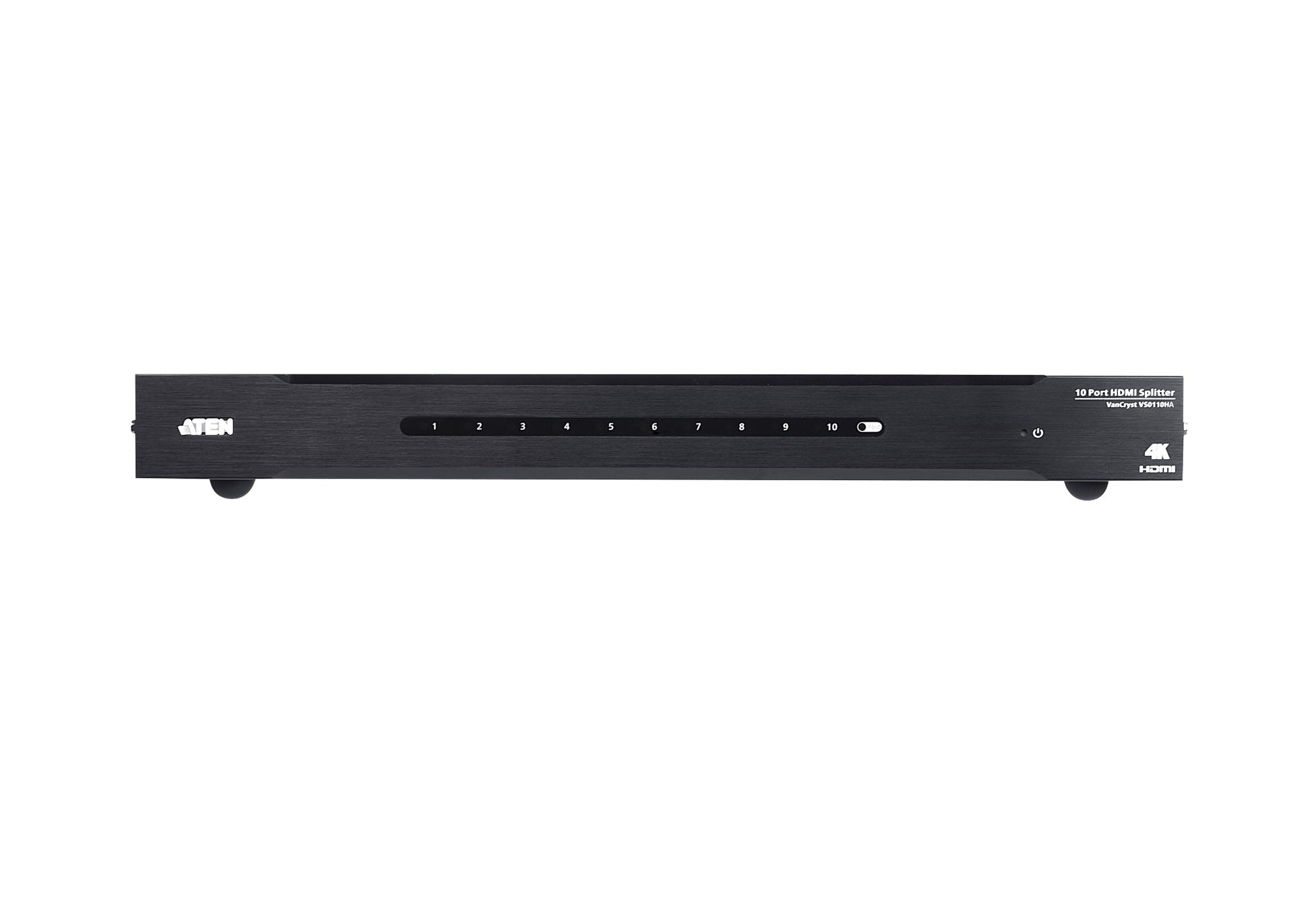

| LEDs |
| Power |
1 x LED (Green) |
| Input |
1 x LED (Green) |
| Video Output |
10 x LED (Green) |
| Video Input |
| Interfaces |
1 x HDMI Type A Female (Black) |
| Impedance |
100 Ω |
| Max. Distance |
5m (at 4K resolution) |

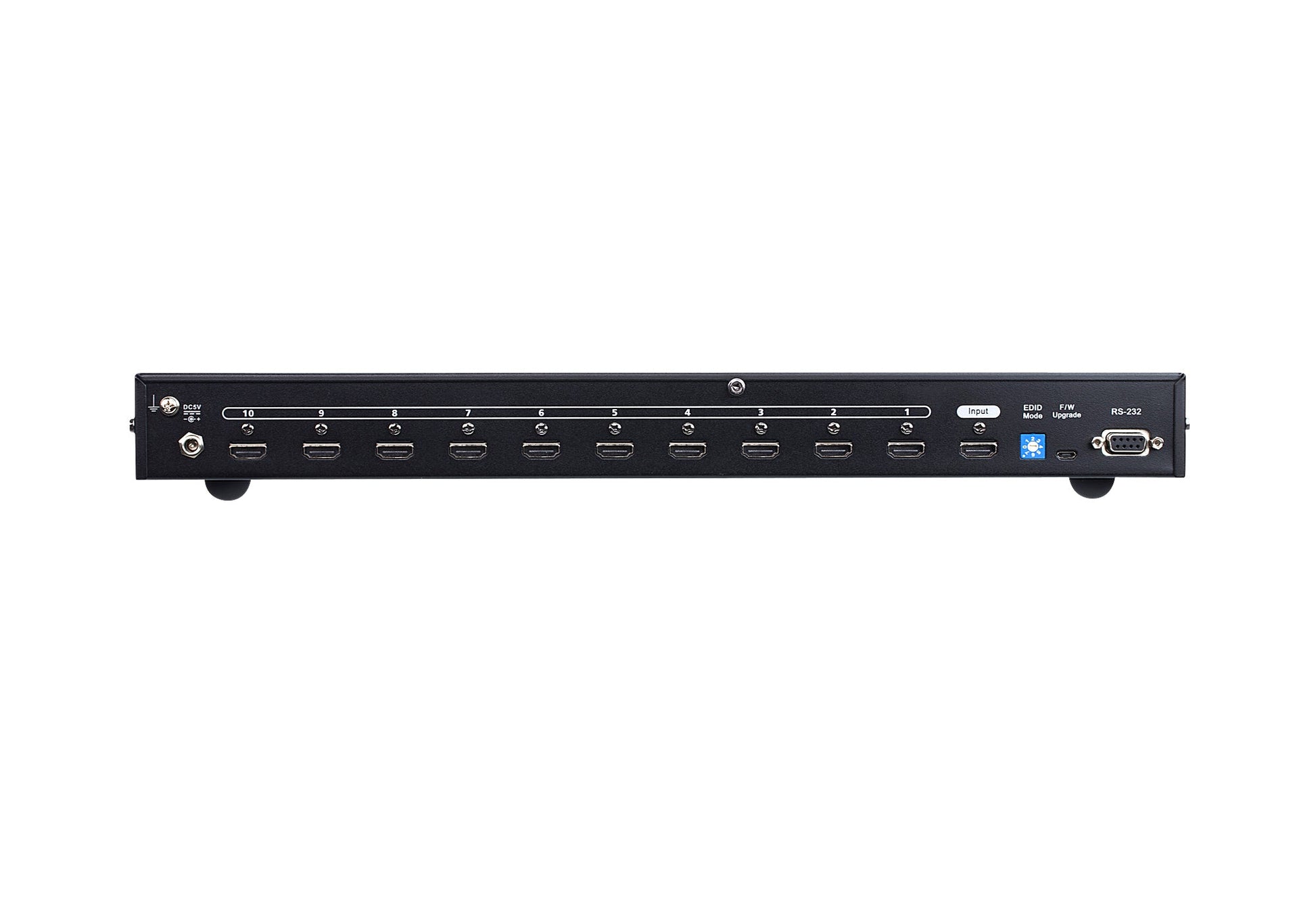

| Video Output |
| Interfaces |
10 x HDMI Type A Female (Black) |
| Impedance |
100 Ω |
| Max. Distance |
10m (at 4K resolution) |
| Video |
| Max. Data Rate |
10.2 Gbps (3.4 Gbps Per Lane) |
| Max. Pixel Clock |
340 MHz |
| Compliance |
HDMI (3D, Deep Color, 4K);
HDCP 1.4 Compatible |
| Max. Resolution |
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Control |
| RS-232 |
Connector: 1 x DB-9 Female (Black)
Baud Rate: 19200 / Data Bits: 8 / Stop Bits:1 / Parity: No / Flow Control: No |
| EDID Settings |
EDID Switch x1
EDID Mode: Default (1080p) / Port 1 / Auto |
| Connectors |
| Power |
1 x DC Jack |
| USB Port |
1 x Micro USB (FW upgrade) |
| Power Consumption |
DC5V:4.34W:20BTU/h
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental |
| Operating Temperature |
0 - 40 °C |
| Storage Temperature |
-20 - 60 °C |
| Humidity |
0 - 80% RH, Non-Condensing |
| Physical Properties |
| Housing |
Metal |
| Weight |
2.10 kg ( 4.63 lb ) |
| Dimensions (L x W x H) |
43.72 x 15.78 x 4.40 cm
(17.21 x 6.21 x 1.73 in.) |
| Carton Lot |
3 pcs |
