Product Description:
ATEN High Speed HDMI Cables with Ethernet deliver uncompressed, high-fidelity audio and video signals for the best viewing experience. Designed for professional A/V use, these cables support up to True 4K (4096 x 2160 @ 60Hz)* resolutions, HDMI Ethernet Channel functionality, and 3D, Deep Color, and HDCP 2.2 compliance. Gold-plated connectors ensure optimal signal transfer, while robust copper construction reduces interference and enhances durability. Available in lengths from 1 to 20 meters, these HDMI cables are ideal for home theaters, gaming setups, conference rooms, digital signage, and more.
Key Features:
- Supports True 4K (4096 x 2160 @ 60Hz)* and 4K @ 30Hz depending on length
- HDMI Ethernet Channel support for additional networking capabilities*
- 3D, Deep Color, and HDCP 2.2 compliant
- Gold-plated 19-pin HDMI male-to-male connectors for corrosion resistance and reliability
- Solid or tinned copper conductors for enhanced signal quality
- RoHS compliant and UL VW-1 flame rated
- Durable PVC jacket and aluminum foil shielding

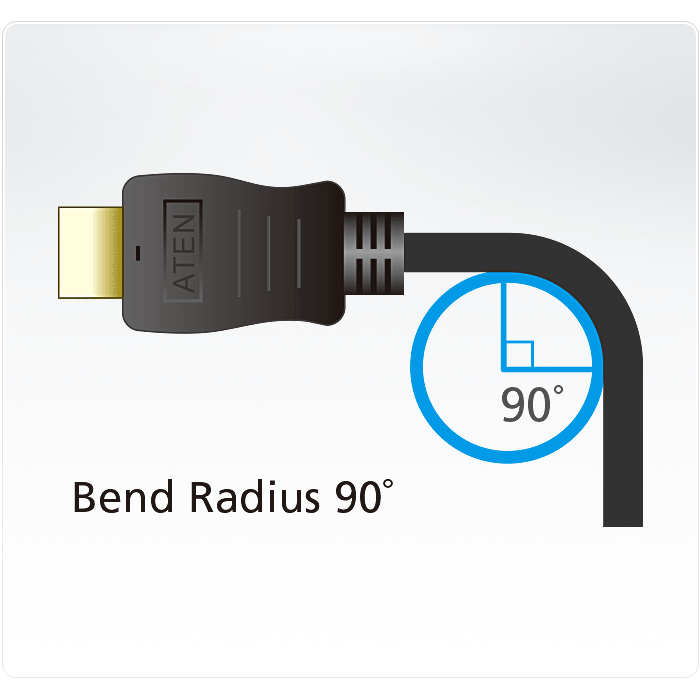

- Tested bend radius of 90° with 100 swing cycles
- No software or drivers required – plug and play
*Ethernet Channel feature requires compatible devices
Specifications:
| Model |
Length |
Resolution |
Cable Diameter |
AWG |
Conductor |
| 2L-7D01H |
1m |
Up to 4096 x 2160 @ 60Hz |
6.0 ± 0.15mm |
30 AWG |
Solid Bare Copper |
| 2L-7D02H |
1.8m |
Up to 4096 x 2160 @ 60Hz |
6.0 ± 0.15mm |
30 AWG |
Solid Bare Copper |
| 2L-7D02H-1 |
2m |
Up to 4096 x 2160 @ 60Hz |
6.0 ± 0.15mm |
30 AWG |
Solid Bare Copper |
| 2L-7D03H |
3m |
Up to 4096 x 2160 @ 60Hz |
6.0 ± 0.15mm |
30 AWG |
Solid Bare Copper |
| 2L-7D05H |
5m |
Up to 4096 x 2160 @ 30Hz |
6.0 ± 0.2mm |
30 AWG |
Tinned Copper |
| 2L-7D10H |
10m |
Up to 4096 x 2160 @ 30Hz |
7.3 ± 0.2mm |
28 AWG |
Tinned Copper |
| 2L-7D15H |
15m |
Up to 4096 x 2160 @ 30Hz |
10.0 ± 0.2mm |
24 AWG |
Tinned Copper |
| 2L-7D20H |
20m |
Up to 4096 x 2160 @ 30Hz (Uni-directional) |
10.0 ± 0.2mm |
26 AWG |
Tinned Copper |
Connector Type: HDMI (19-pin) Male to Male
Shielding: Aluminum Foil
Jacket Type: PVC
Operating Temperature: Up to 80°C
Rating: UL VW-1 (Flame Rating), CSA
Perfect For:
Home theaters, gaming setups, AV conference rooms, digital signage, professional broadcast environments, and installations requiring dependable HDMI connections across various distances.
