Product Description:
The ATEN CN9600 is a powerful DVI KVM over IP Switch that enables secure remote access and control of a single computer or workstation. Ideal for enterprise IT, broadcasting, and control centers, it supports Full HD DVI video, USB keyboard/mouse, stereo audio, RS-232, and Virtual Media. With enhanced reliability through dual LAN and dual power support, this compact device provides a robust, secure, and efficient over-IP management solution.
Key Features:
- Over-IP access to a single DVI workstation or ATEN KVM/LCD console (e.g., CS1768, CL3800)
- High video resolution: Up to 1920 x 1200 @ 60Hz for both local and remote consoles
- Compact metal housing with dual LAN and dual power input for redundancy
- Supports USB virtual media and smart card/CAC reader redirection
- Front panel Laptop USB Console (LUC) port for on-site access via laptop
- Integrated microphone and speaker ports for full audio support
- Complies with RS-232 DTE/DCE standards for serial control
- Advanced security with external authentication: RADIUS, LDAP, LDAPS, MS Active Directory
- Supports ATEN CC2000 Management Software and CCVSR Session Recording
- Compatible with Windows, Mac, Sun, Linux, and VT100 serial devices
- Full remote desktop experience with Magic Panel, Mouse DynaSync™, and Virtual Media
Specifications:
Model: CN9600
Local & Remote Console Access: 1 user at a time (shared mode supports up to 32 users)

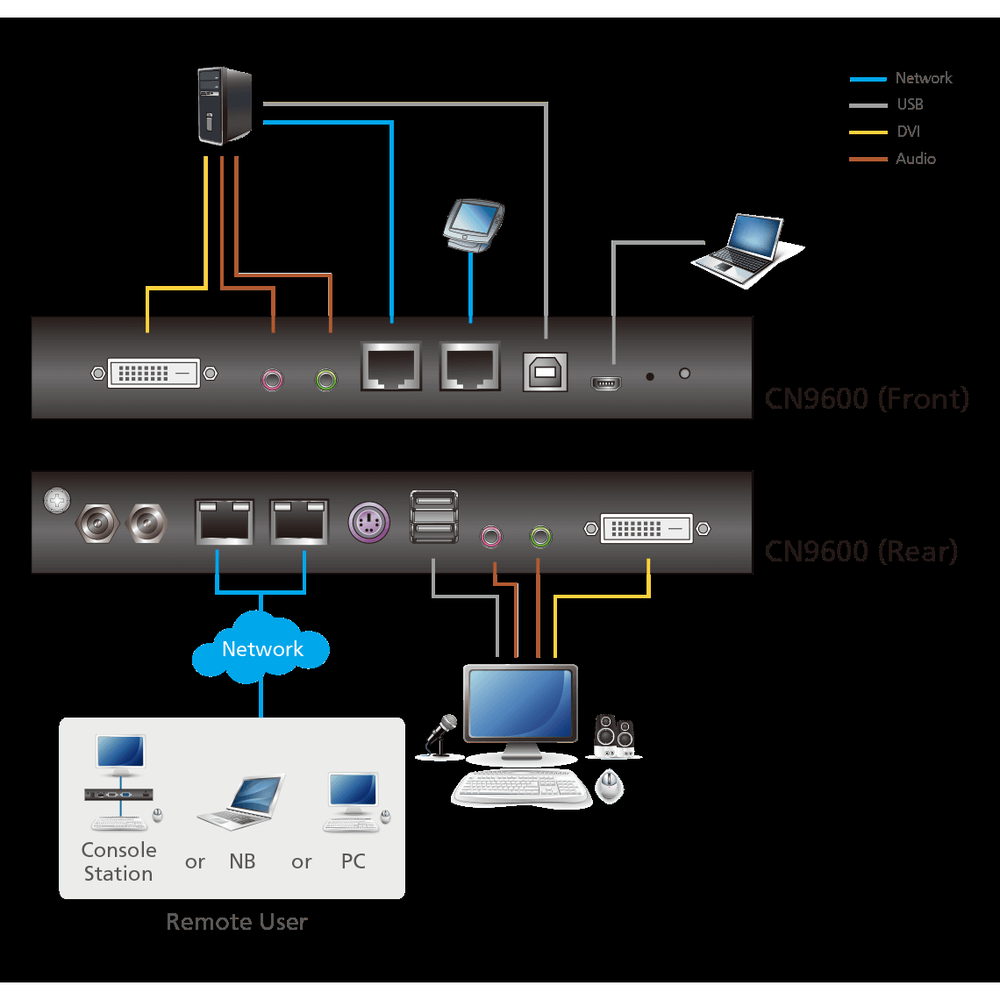

Ports:
-
Console Ports: 2 x USB Type A, 1 x DVI-D, 2 x 3.5mm Audio Jack (Mic & Speaker)
-
KVM Ports: 1 x USB Type B, 1 x DVI-D, 2 x 3.5mm Audio Jack (Mic & Speaker)
-
LAN: 2 x RJ-45 Gigabit Ethernet
-
Serial: 2 x RJ-45 (RS-232)
-
Virtual Media: 1 x Mini USB
-
Control Port: 1 x PS/2 Female
-
Power: 2 x DC Jack
Video Resolution:
- Local Console: 1920 x 1200 @ 60Hz
- Remote Console: 1920 x 1200 @ 60Hz
Management & Security:
- Virtual Media & Smart Card Support
- External Authentication: RADIUS, LDAP, LDAPS, MS Active Directory
- Encryption: 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or Random
- Access Control: Port share mode, console privilege, event logs, DDNS, IP/MAC filtering
- Firmware Upgradeable, OOB Access via Serial
Operating Environment:
-
Temperature: 0 – 50 °C (device), 0 – 40 °C (adapter)
-
Storage: -20 – 60 °C
-
Humidity: 0 – 80% RH, Non-condensing
Build & Power:
-
Housing: Metal
-
Dimensions: 20.00 x 15.49 x 2.85 cm
-
Weight: 0.84 kg
-
Power Consumption: DC 5V: 5.55W (30BTU/h)
