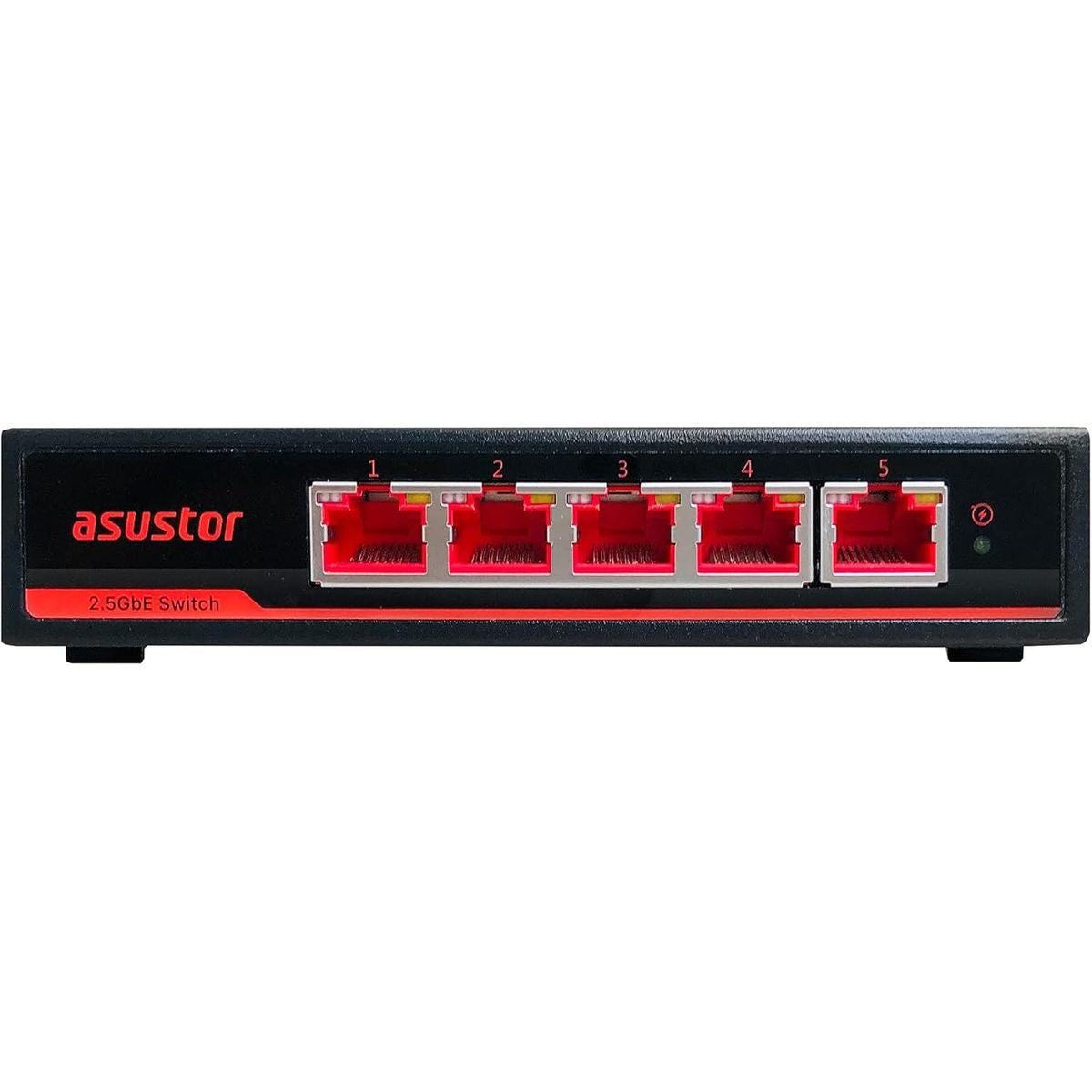

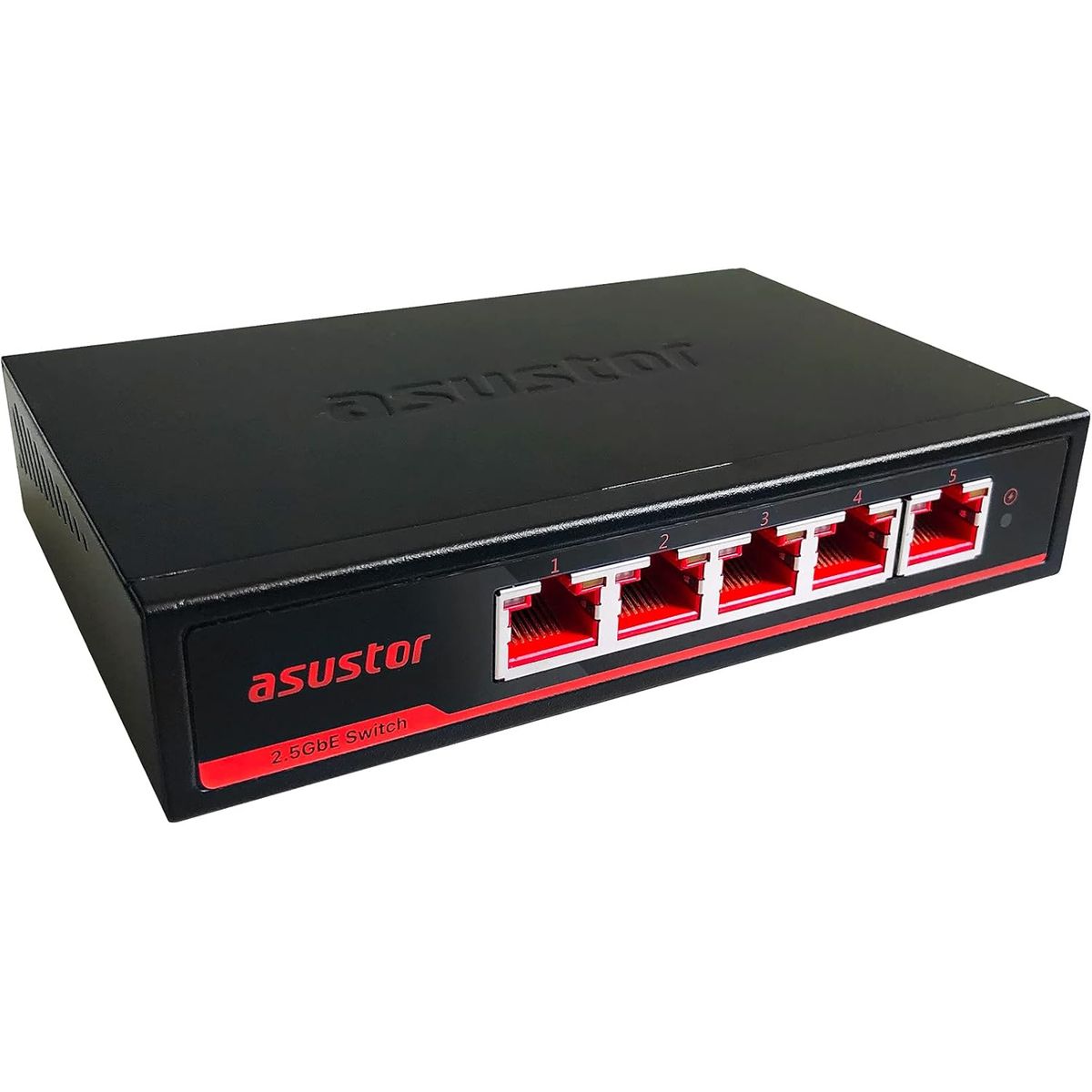

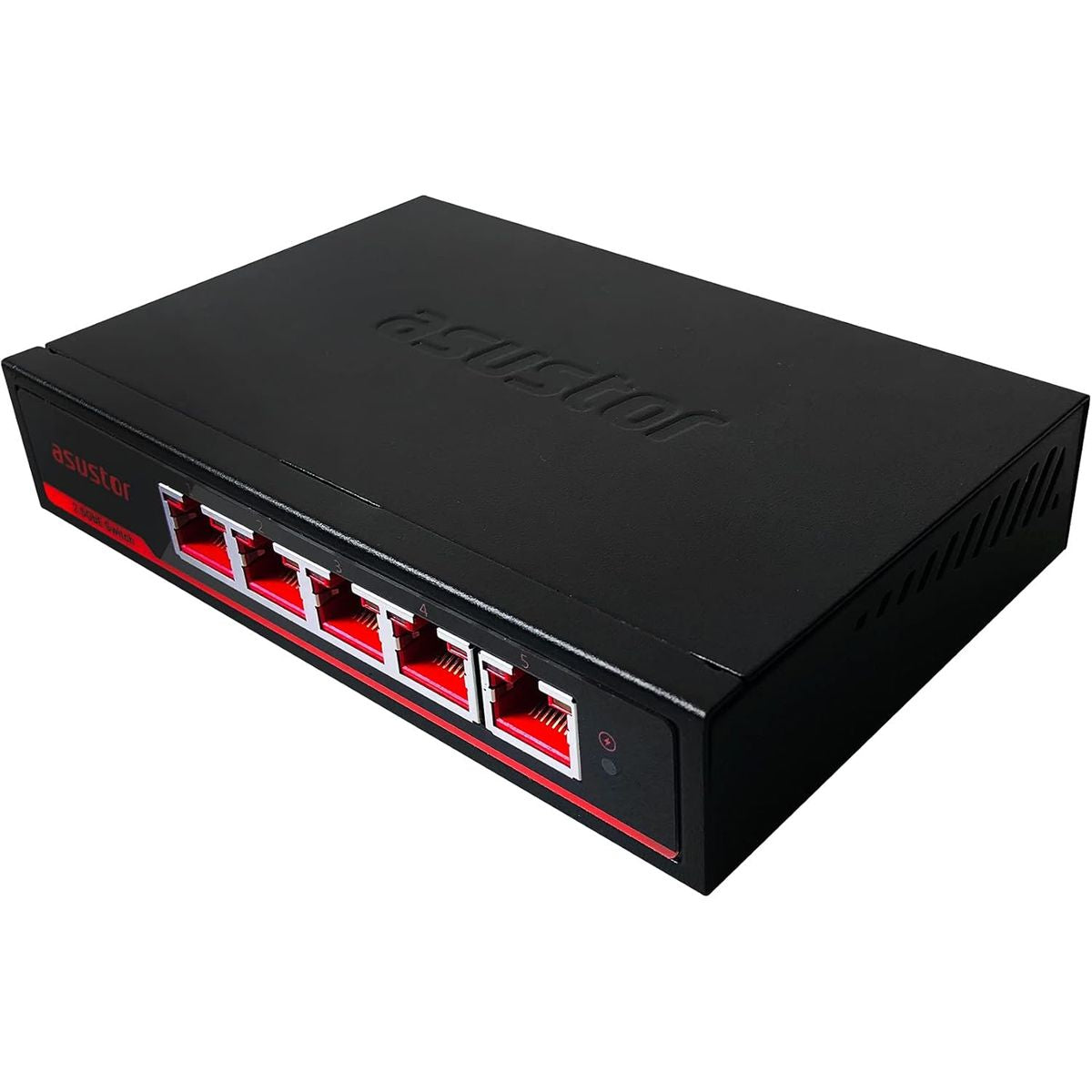

The ASUSTOR ASW205T (Switch’nstor) is a sleek, fanless 5-port 2.5 GbE unmanaged switch designed for home and small office use. With plug-and-play functionality, Cat5e compatibility, and a durable metal casing, it delivers upgraded networking without the need for special cables or power-hungry fans.
Key Features
• 5× 2.5 GbE RJ‑45 ports (backward compatible with 1 GbE/100 Mbps)
• Plug & Play unmanaged design—no setup needed
• Silent, fanless operation with metal heatsink chassis
• Low power consumption (~10 W)
• Compact desktop/wall-mount design with included hardware
• Supports Cat5e cables—no rewiring required
Specifications
| Technical Specifications |
| Model |
ASUSTOR ASW205T |
| Management |
Unmanaged |
| Chipset |
Realtek RTL8731 + RTL8221B |
| Ports |
5× RJ‑45: 2.5 GbE / 1 GbE / 100 Mbps |
| Switching Capacity |
25 Gbps (12.5 Gbps non-blocking) |
| Forwarding Rate |
18.6 Mpps |
| MAC Table |
16 K entries |
| Packet Buffer |
4.1 Mbit |
| Jumbo Frames |
Up to 12 K |
| Flow Control |
IEEE 802.3x |
| Power Input |
DC Adapter, 100–240 VAC → 12 V DC @2 A |
| Power Consumption |
Max 10 W |
| Cooling |
Passive (fanless) |
| Operating Temp |
0 °C to 40 °C |
| Humidity |
<85% non‑condensing |
| Storage Temp |
-10 °C to 85 °C |
| Certifications |
FCC, CE, VCCI, BSMI, C‑Tick, KCC |
| Dimensions |
140 × 90 × 28 mm |
| Weight |
~350 g |
| Warranty |
2 years |
Package Contents
• ASUSTOR ASW205T switch
• 12 V DC power adapter + 4 plug types
• Wall-mount screws & anchors
• Rubber feet
• Quick Installation Guide
