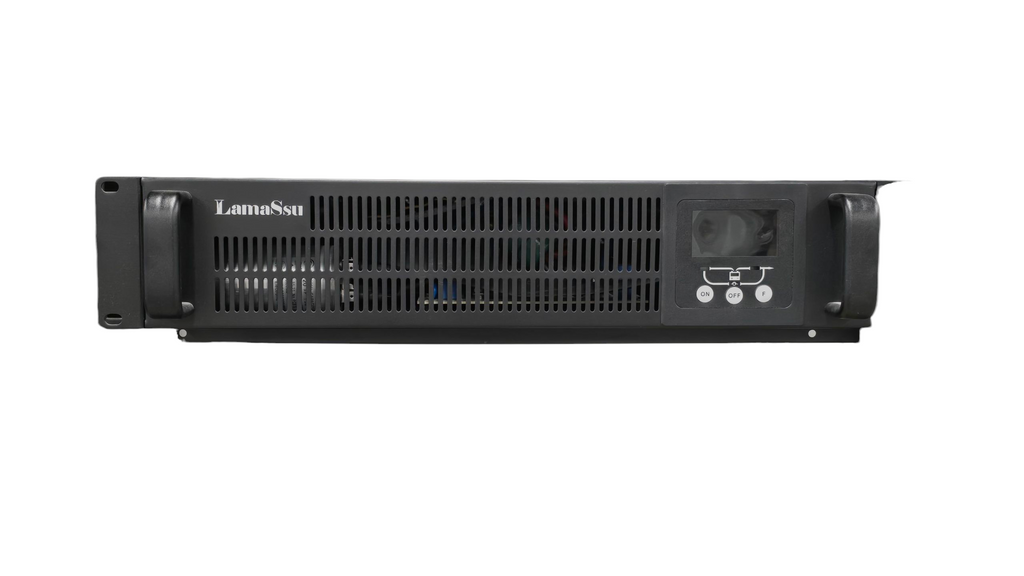

- Online UPS: RC Series 6KVA with 1Ph Input / 1Ph Output
- 19-inch rack mount design with compact structure
- Sine wave output for stable power supply
- Zero transfer time between mains and battery mode
- Input zero line and fire line detection
- Voltage surge protection and strong anti-interference features
- Input power factor correction function
- Supports mobile smart monitoring card with real-time data via mobile app
- Online double conversion architecture with active PFC
- Rated Power: 6KVA/5.4KW
- Input Voltage Range: 120–275Vac (1P2W+G), 207–475Vac (3P4W+G)
- Input Frequency Range: 40–70Hz (settable), Power Factor ≥0.99
- Output Voltage: 220Vac ±1%, Output Frequency: 50Hz
- Output Power Factor: 0.9, Harmonic Distortion: ≤3% (full resistive load)
- Crest Factor: 3:1, Overload Protection with Bypass and Alarm
- Transfer Time: 0ms (normal to battery mode)
- Efficiency: >92%
- Battery Voltage: 192VDC, Quantity: 16 x 12V9Ah units
- Charging Current: 1A
- Dimensions (L×W×H): 665×482.6×132.5 mm
- Weight: 19kg
- Operating Temperature: 0°C to 40°C
- Humidity Range: 20%–95% (non-condensing)
- Noise Level: ≤55dB
