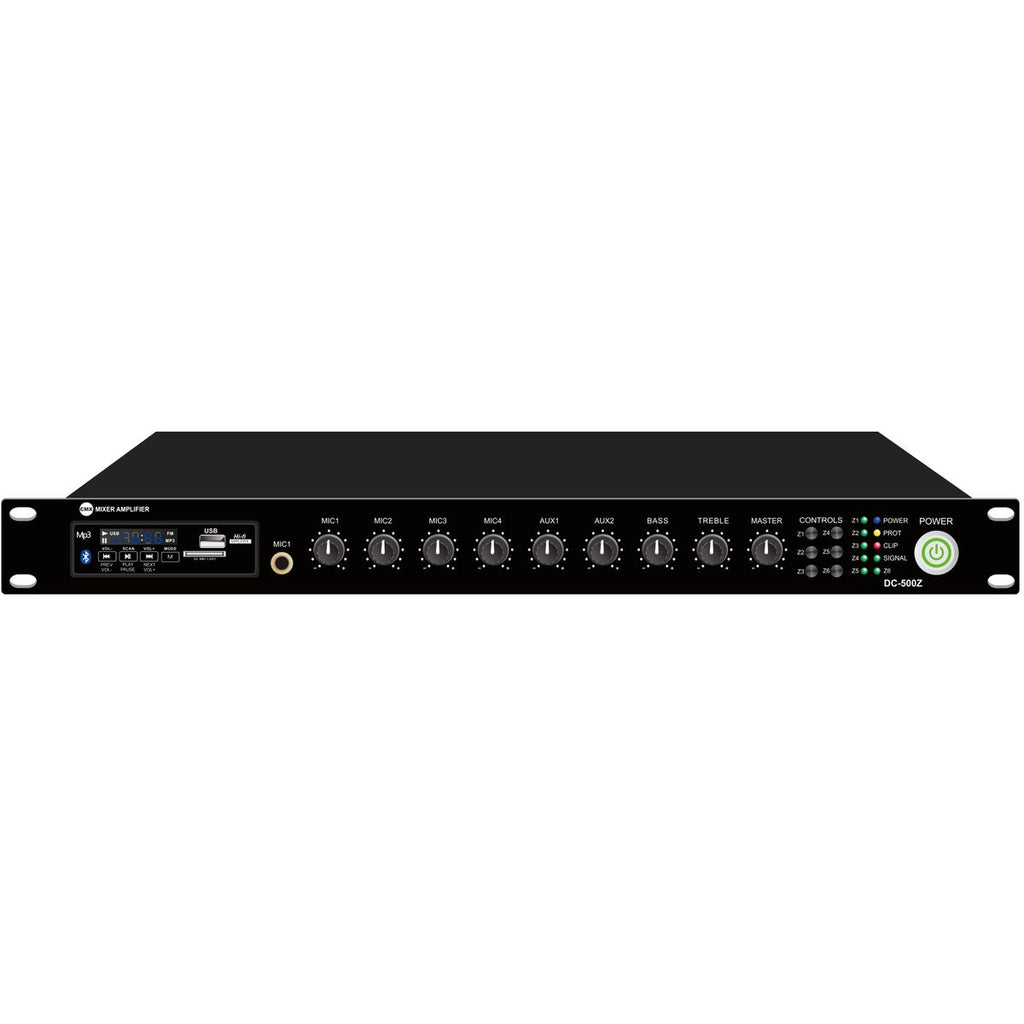

The CMX DC-500Z is a compact 1U, 500-watt commercial mixer amplifier built for multi-zone paging and background music. It combines USB/SD MP3, FM tuner and Bluetooth sources with six 100V speaker zones—each with its own volume—plus installer-friendly mic/line I/O and protection circuitry for dependable daily use.
-
Six zones — Independent 100V zone volume control for flexible area coverage.
-
Built-in sources — USB/SD MP3 player, FM tuner and Bluetooth streaming.
-
Pro I/O — 4× mic inputs (Mic1 6.3 mm; Mic/Line 2–4 XLR) and 2× line inputs (RCA), plus EMC input.
-
Versatile outputs — 100V constant-voltage and 4–16 Ω low-impedance speaker taps.
-
Installer-ready — 1U 19″ rack design with overload/short/over-temp protections.
Technical Specifications
| Parameter |
Value |
| Brand / Model |
CMX Audio / DC-500Z |
| Product Type |
6-Zone Commercial Mixer Power Amplifier |
| Rack Size |
19″, 1U |
| Rated Output Power |
500 W |
| Zones |
6 zones (independent volume control) |
| Speaker Outputs |
100 V line; 4–16 Ω |
| Built-in Sources |
USB/SD MP3 player, FM tuner, Bluetooth |
| Microphone Inputs |
4 total — Mic1 (6.3 mm), Mic/Line 2–4 (XLR) |
| Line Inputs |
Line 1–2 (RCA, rear) |
| EMC Input |
RCA (rear), priority emergency input |
| Protections |
Overload, short circuit, high temperature |
| Power |
AC 230 V, 50–60 Hz |
