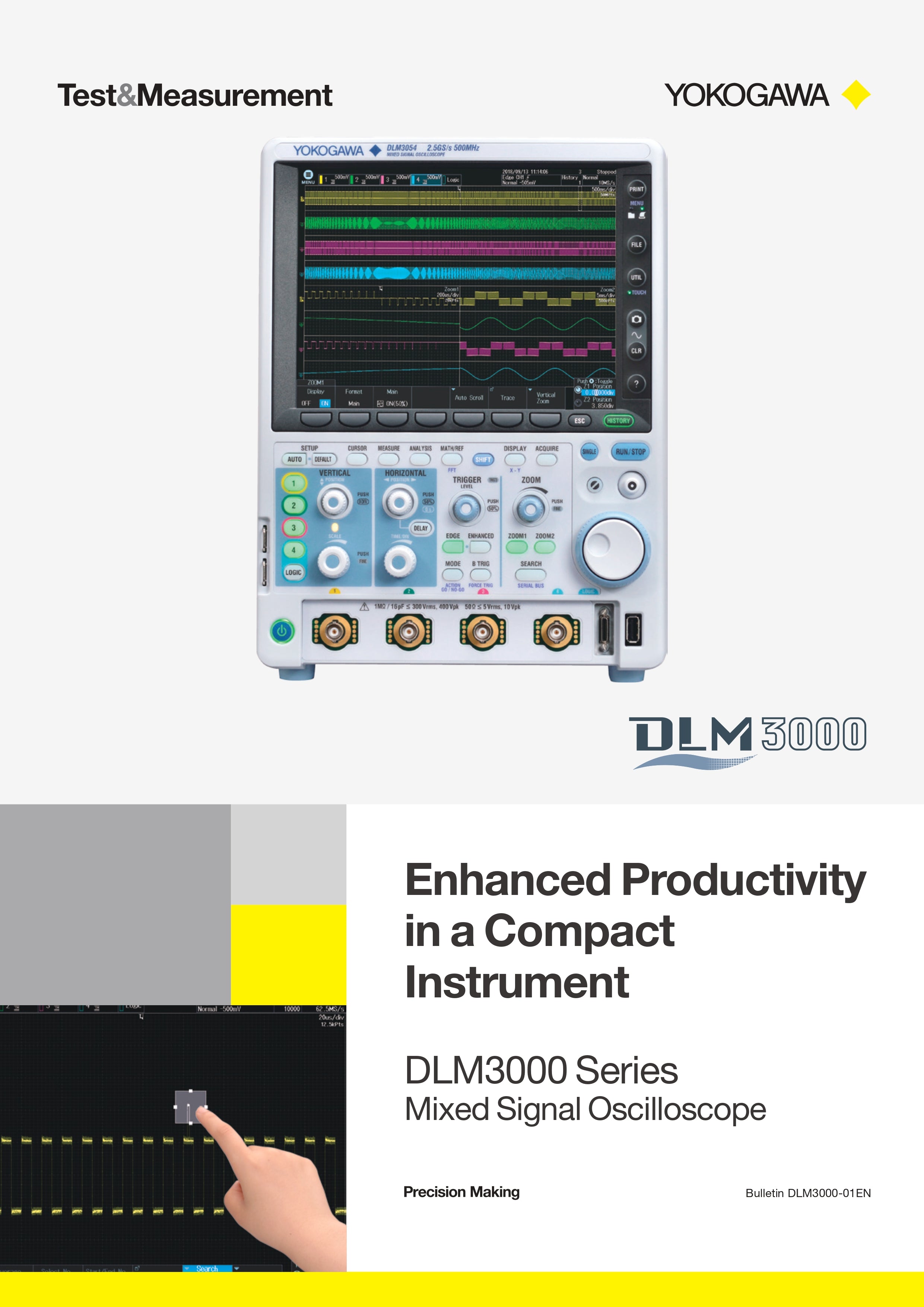

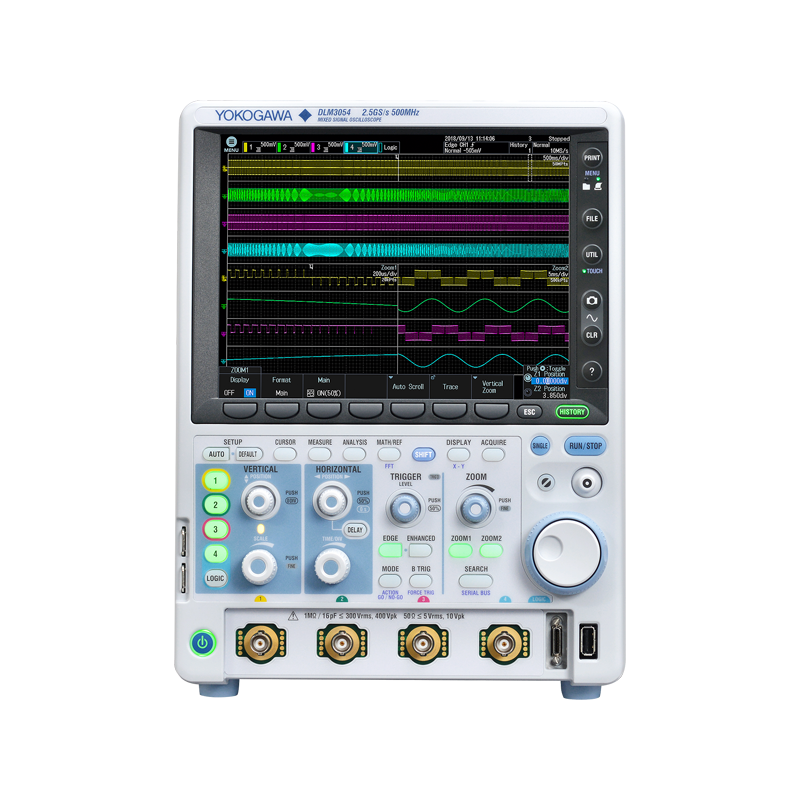

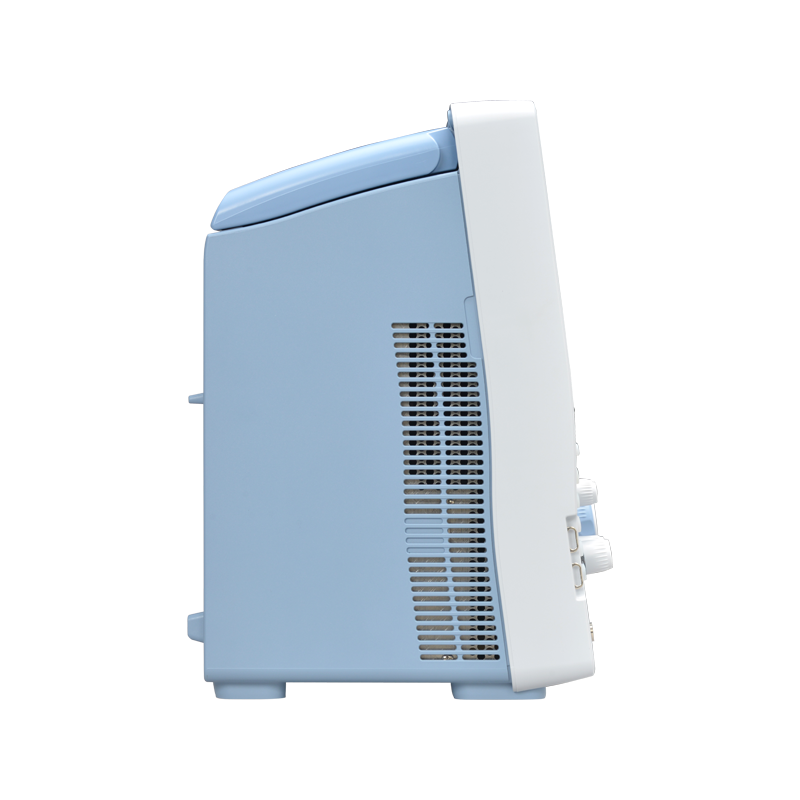

Yokogawa DLM3022 Mixed Signal Oscilloscope

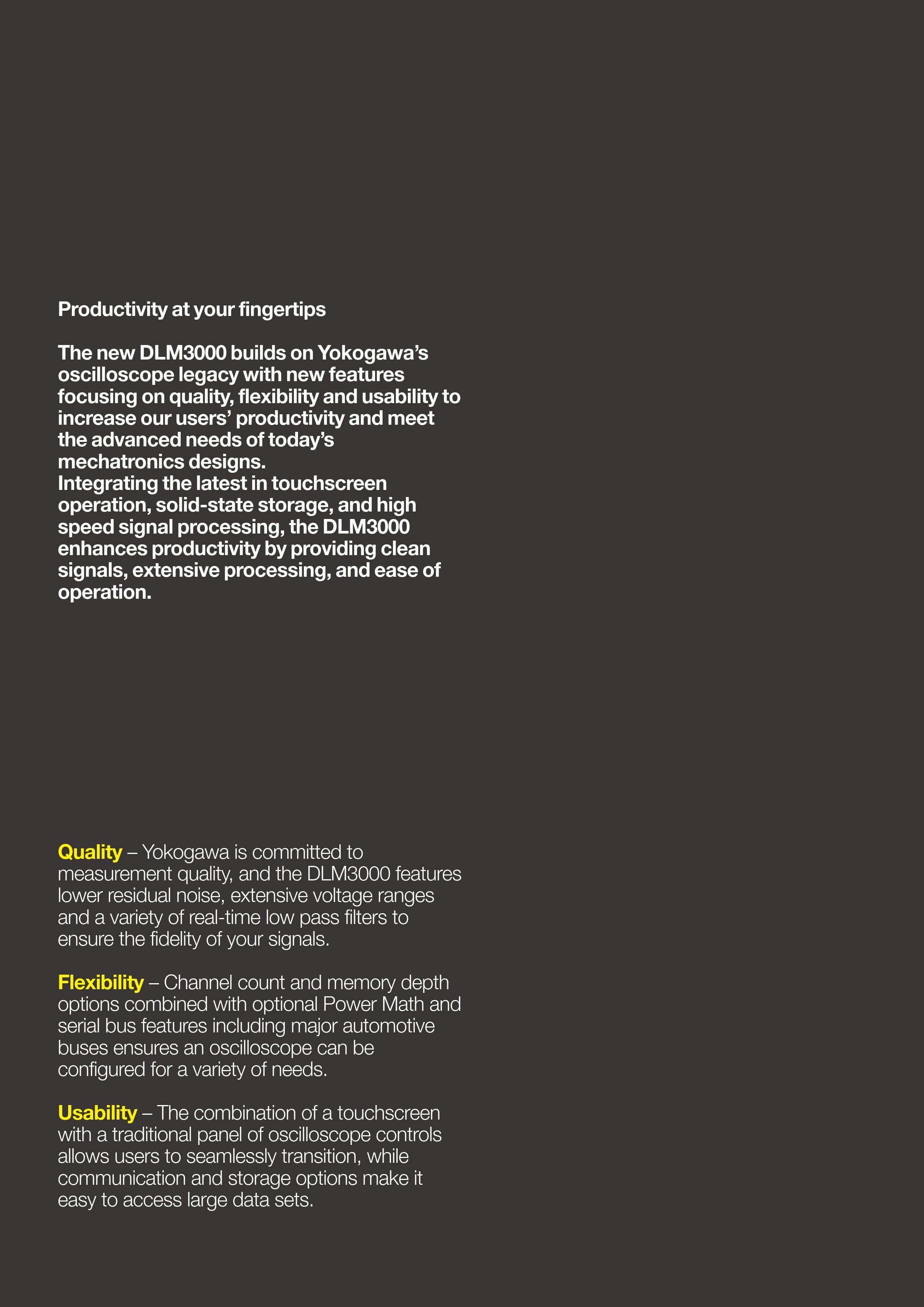

The Yokogawa DLM3022 is a high-performance, compact mixed signal oscilloscope designed for advanced mechatronics, power electronics, and embedded system development. Combining powerful memory depth, intuitive touchscreen control, and advanced triggering, this scope increases engineering productivity from the lab to the field.

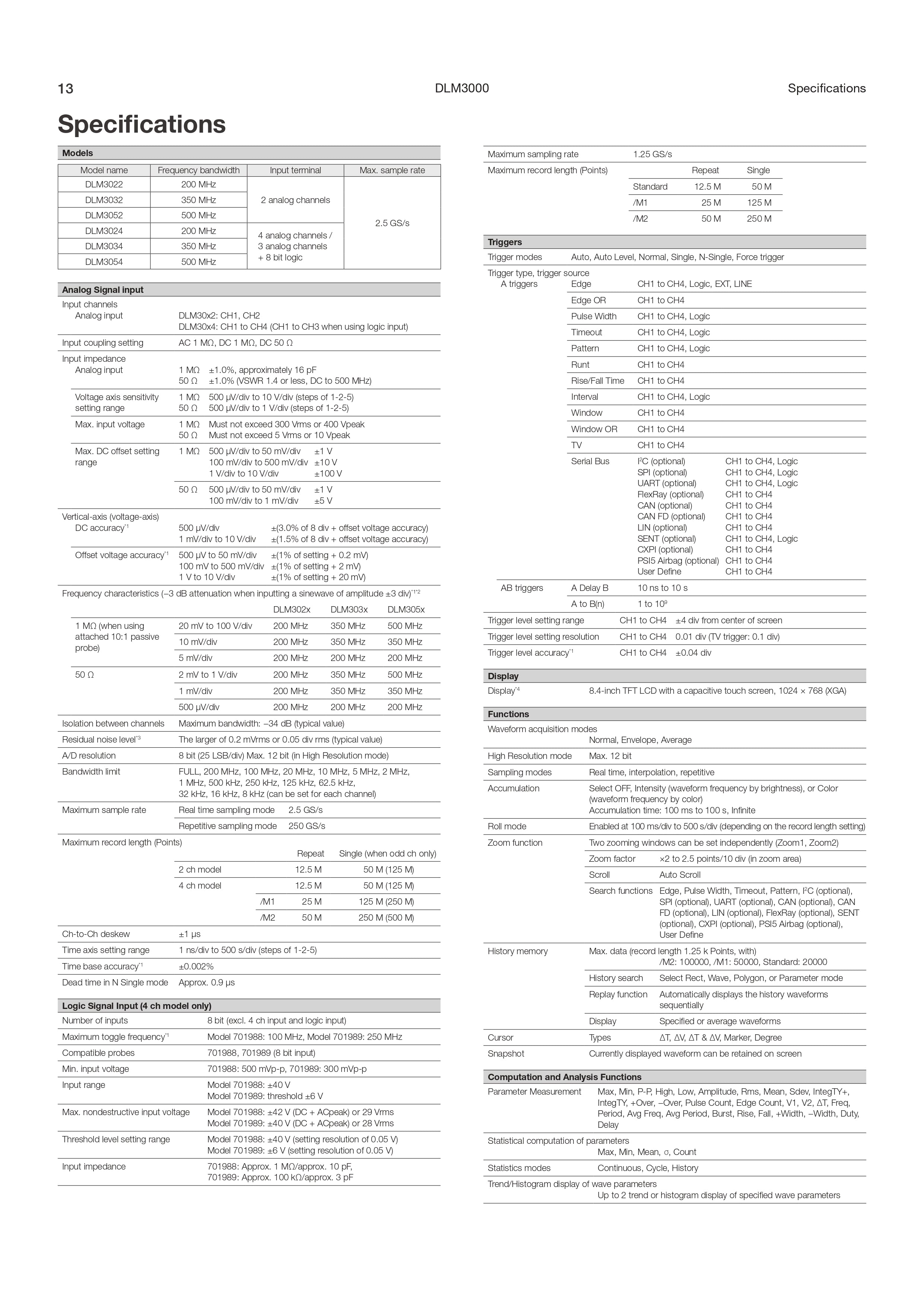

Key Features:
-
Bandwidth: 200 MHz
-
Channels: 2 analog (expandable to MSO with logic probe)
-
Sampling Rate: Up to 2.5 GS/s
-

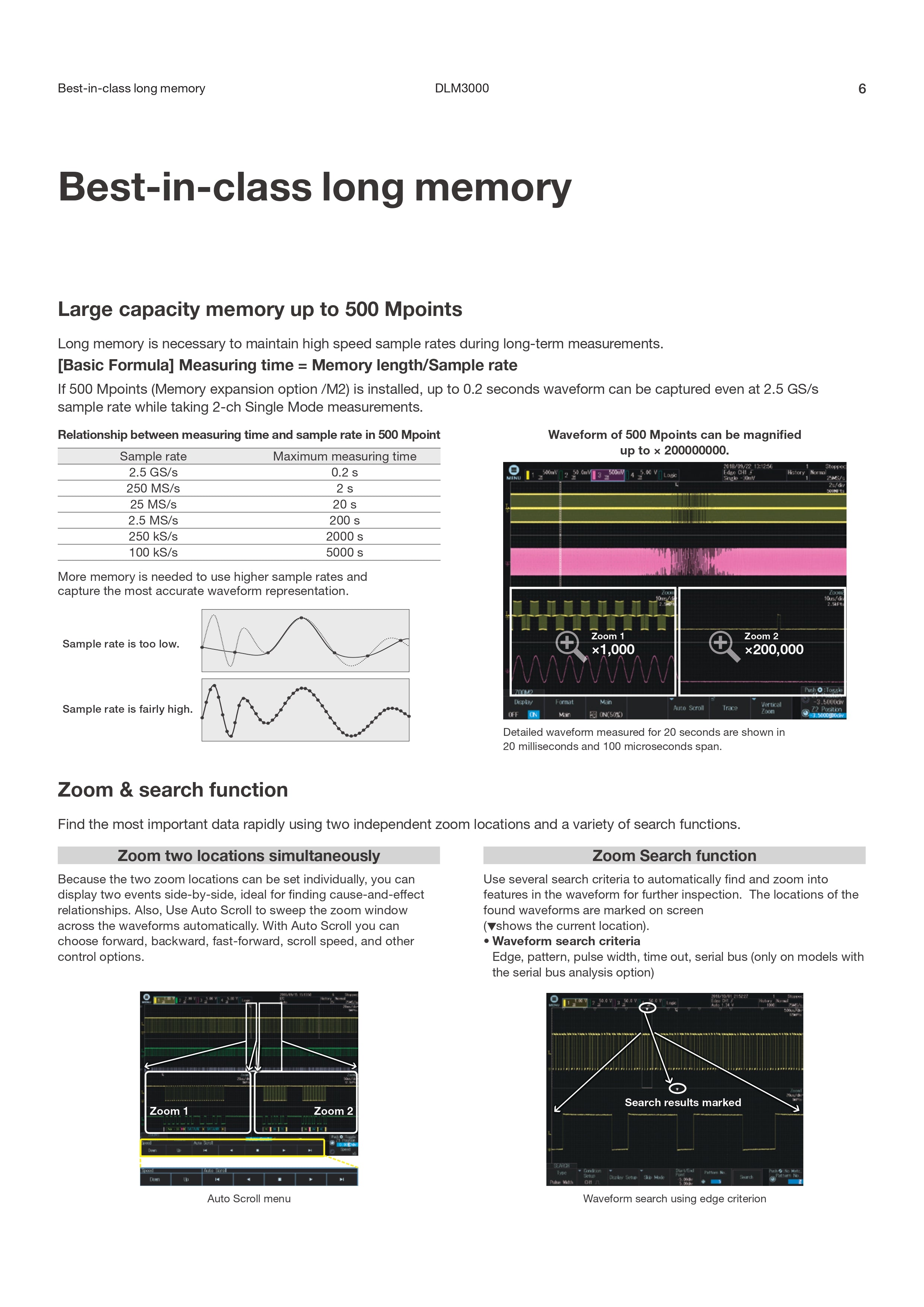

Memory Depth: Up to 500 Mpts with /M2 option
-

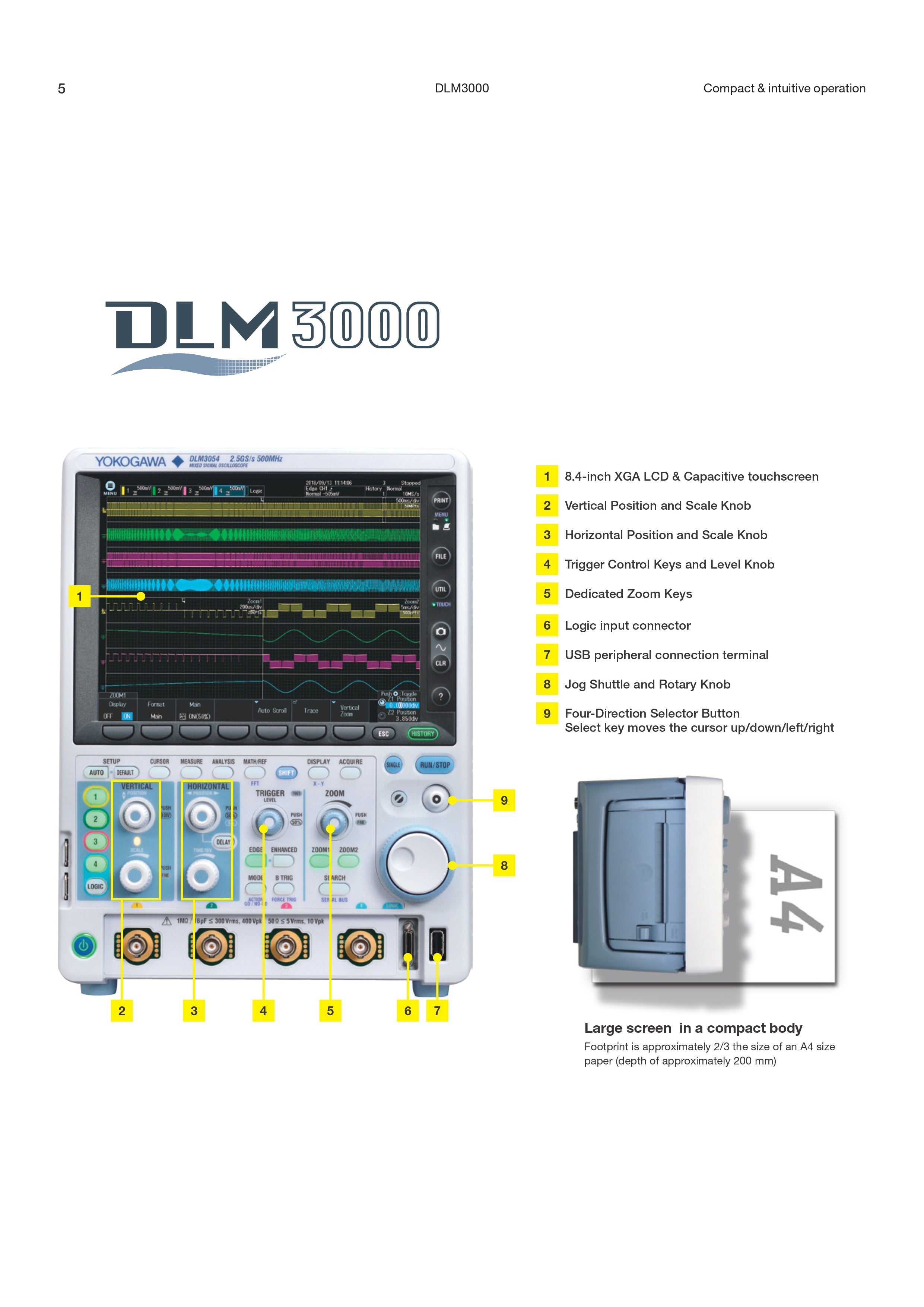

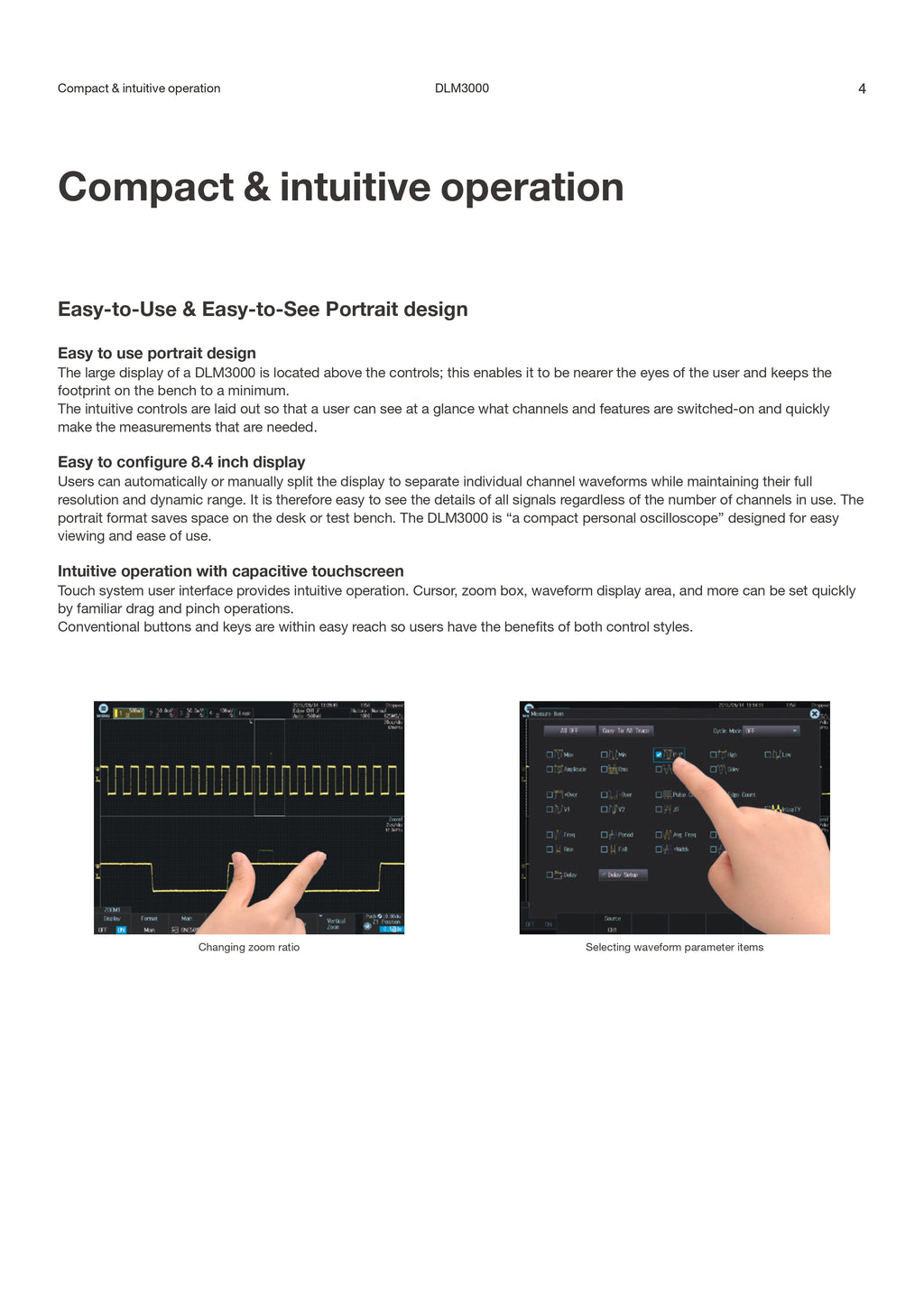

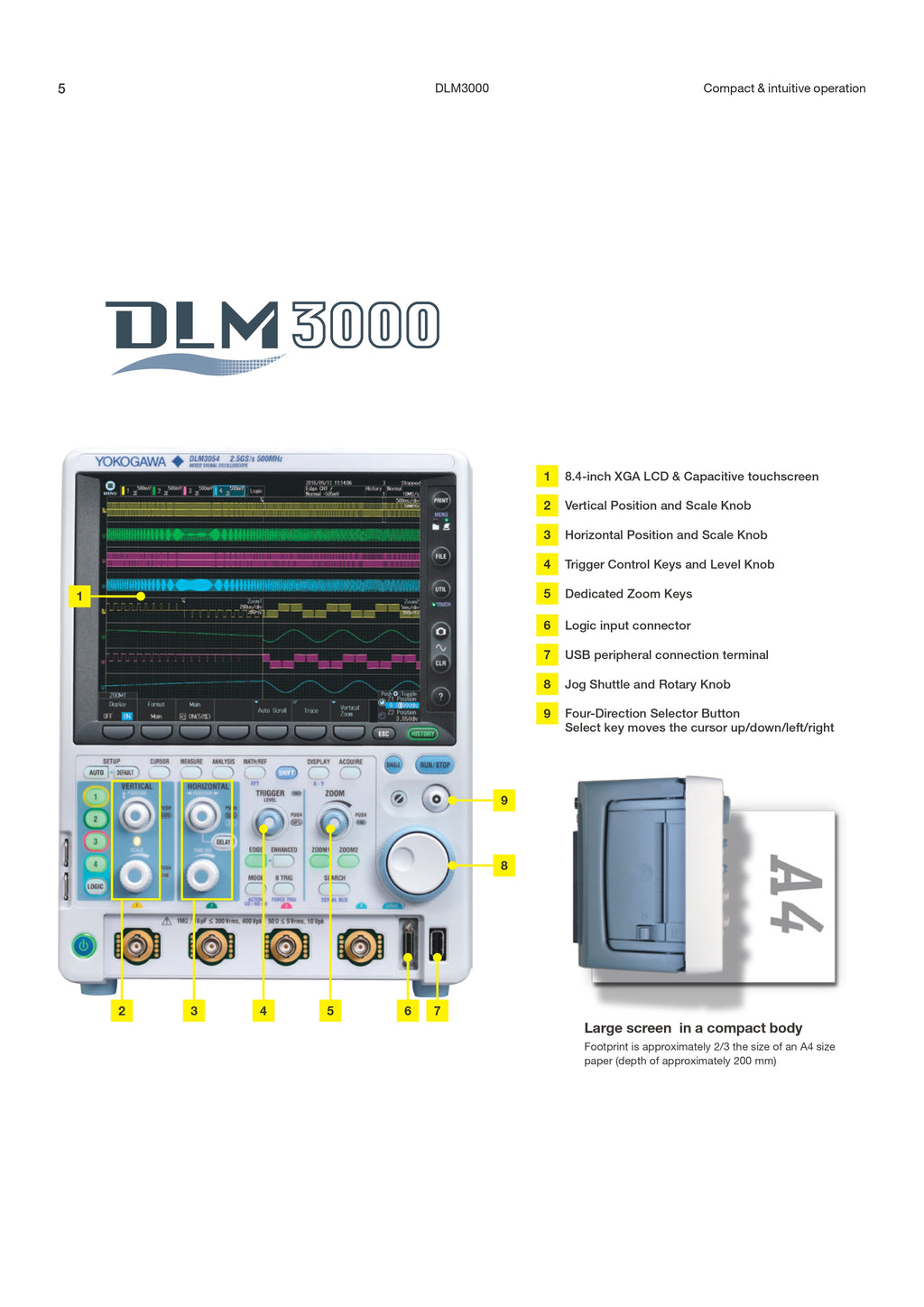

Display: 8.4" capacitive touchscreen LCD (800x600)
-

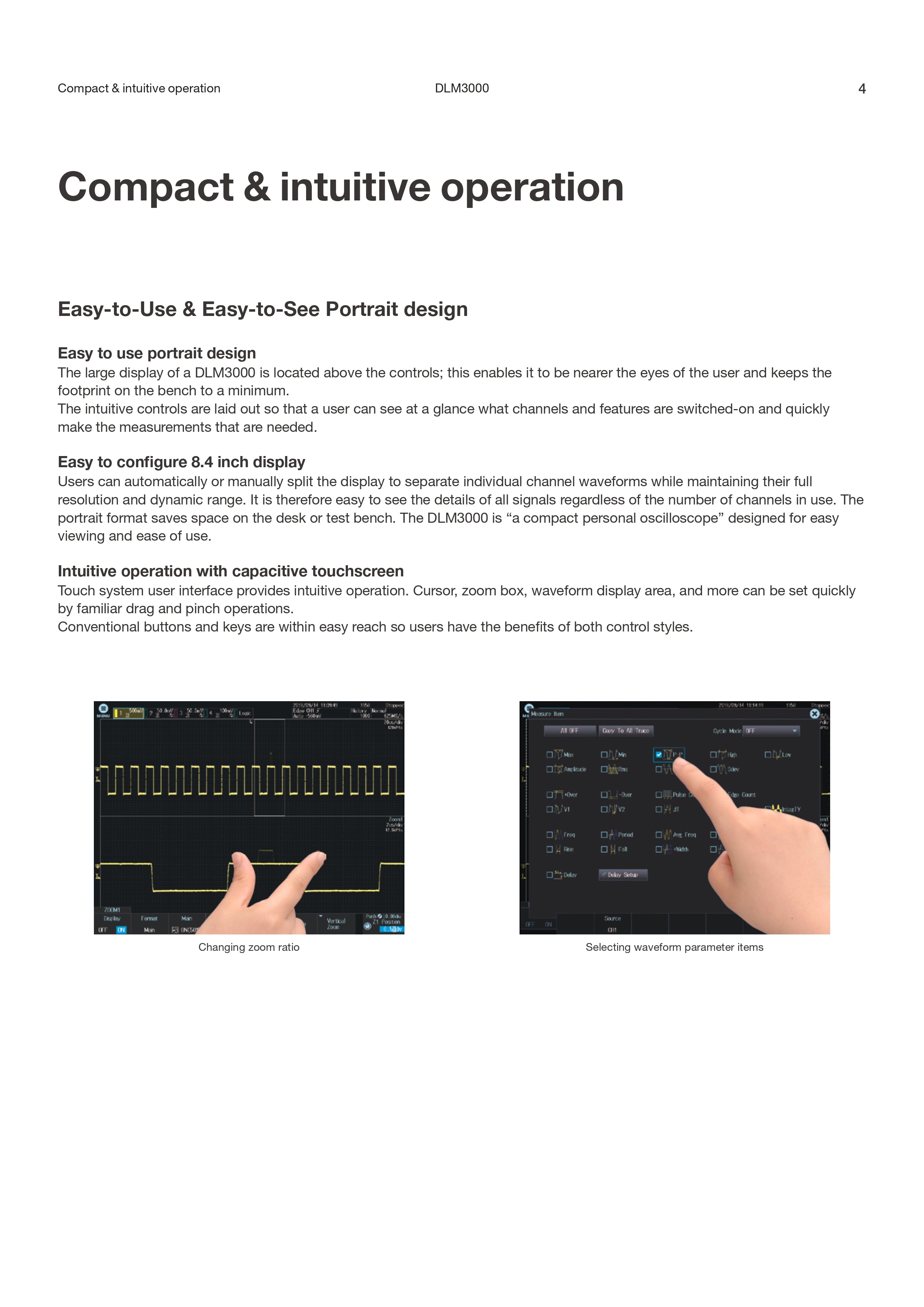

Dual-Style Control: Touchscreen + physical control panel
-

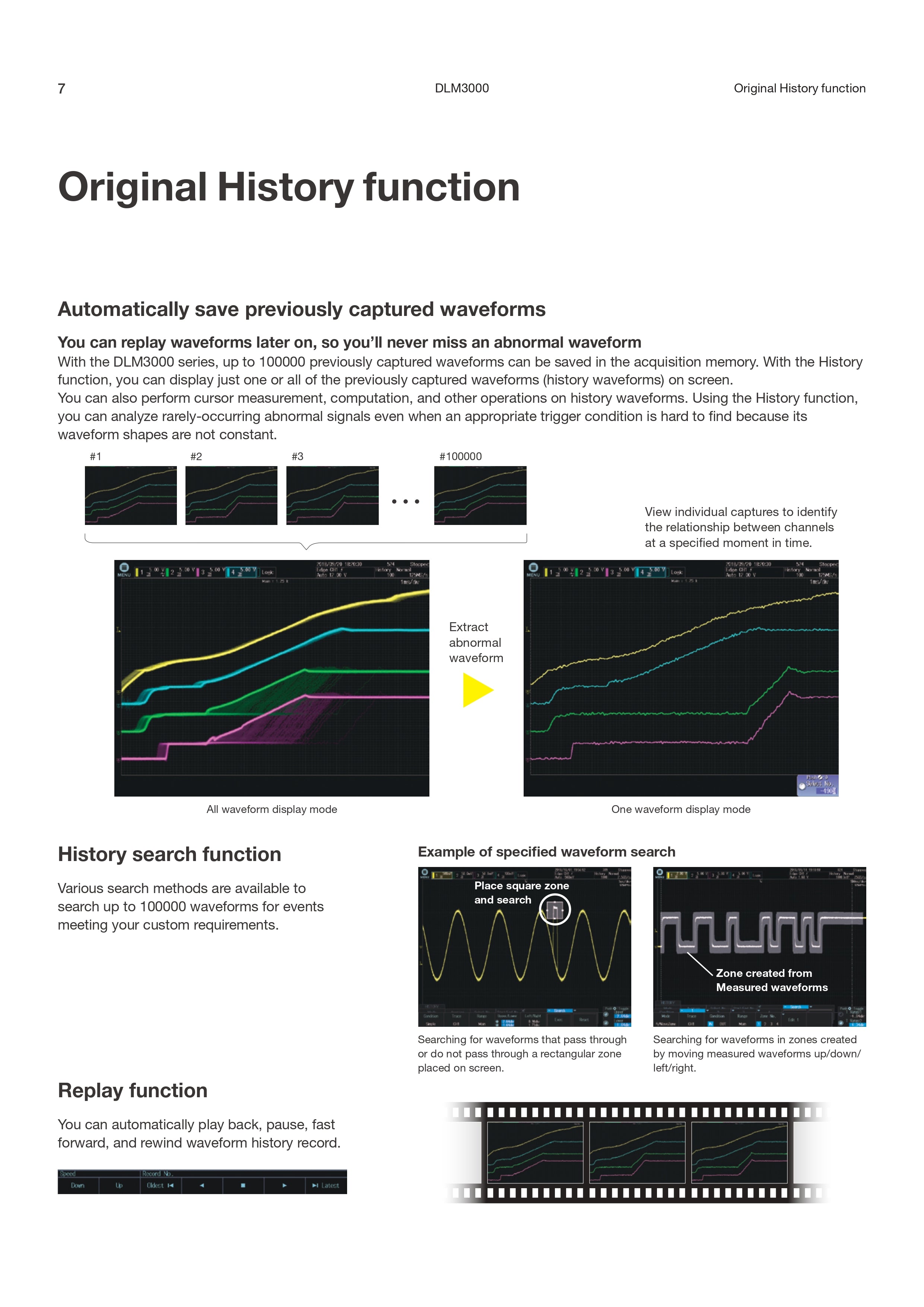

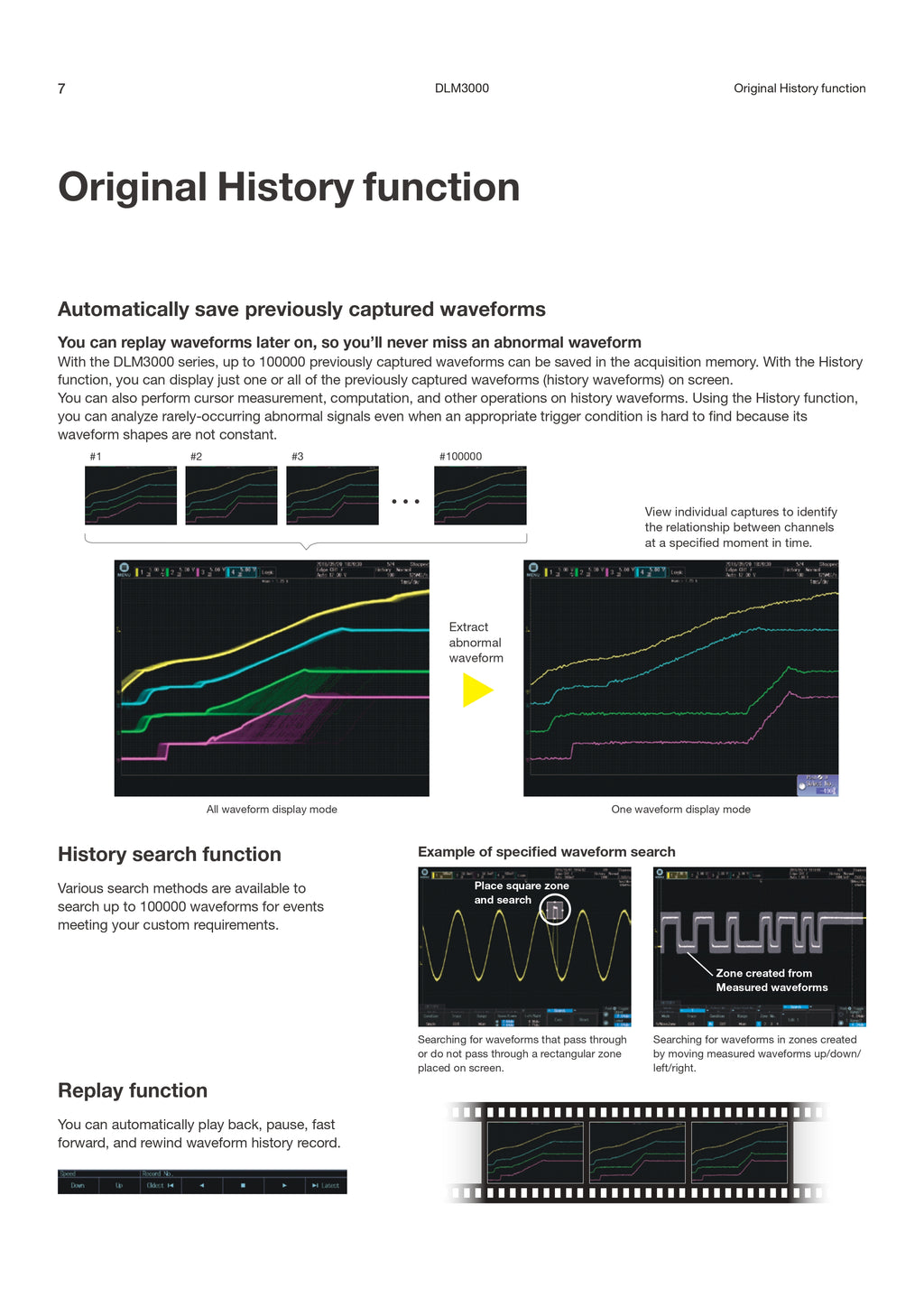

Waveform History: Stores up to 100,000 waveforms for replay and analysis
-

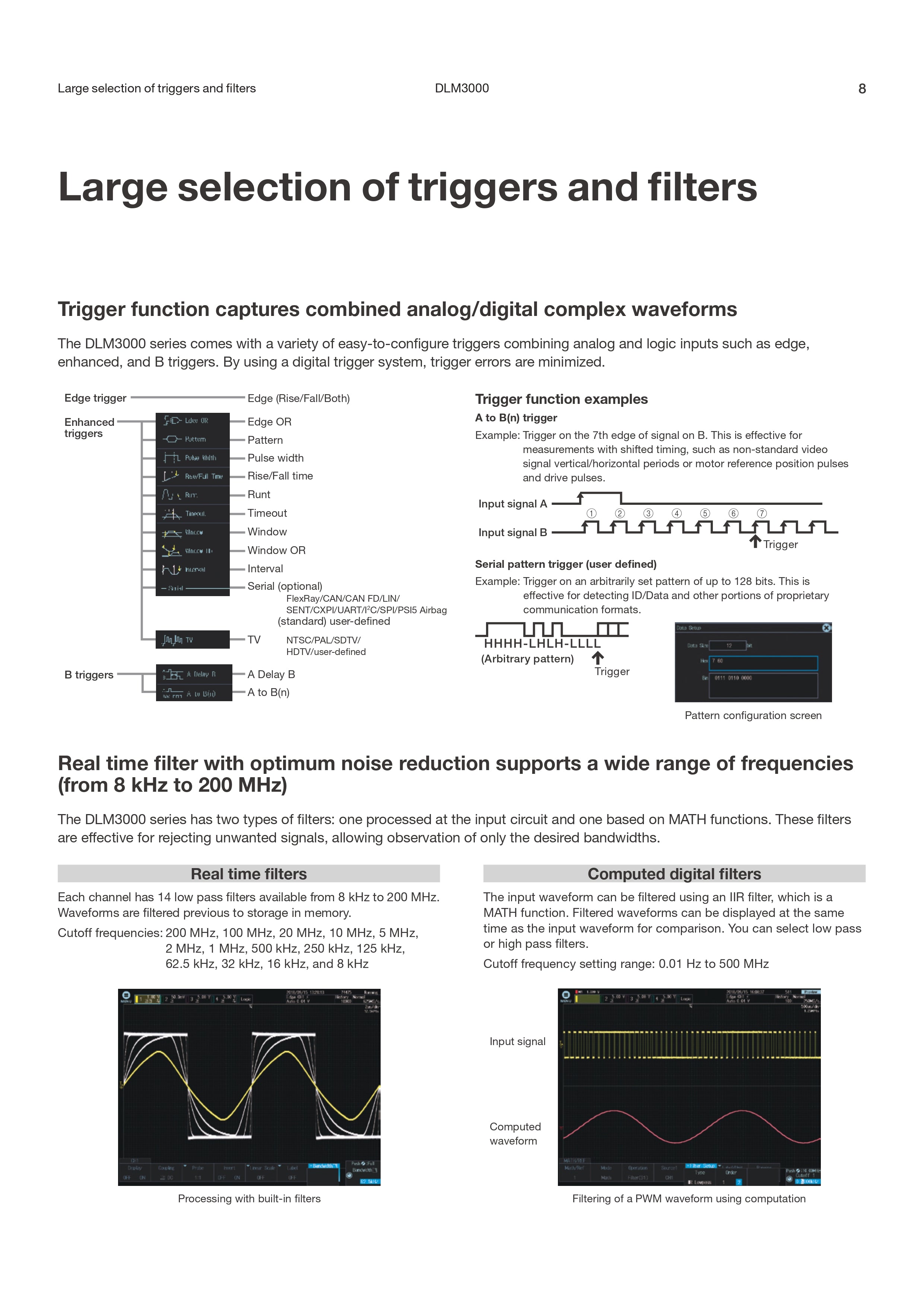

Advanced Triggers: Edge, pattern, pulse width, timeout, serial bus
-
Zoom & Search: Dual zoom windows and automatic waveform search
-
Real-Time Low-Pass Filtering: 14 levels from 8 kHz to 200 MHz
-

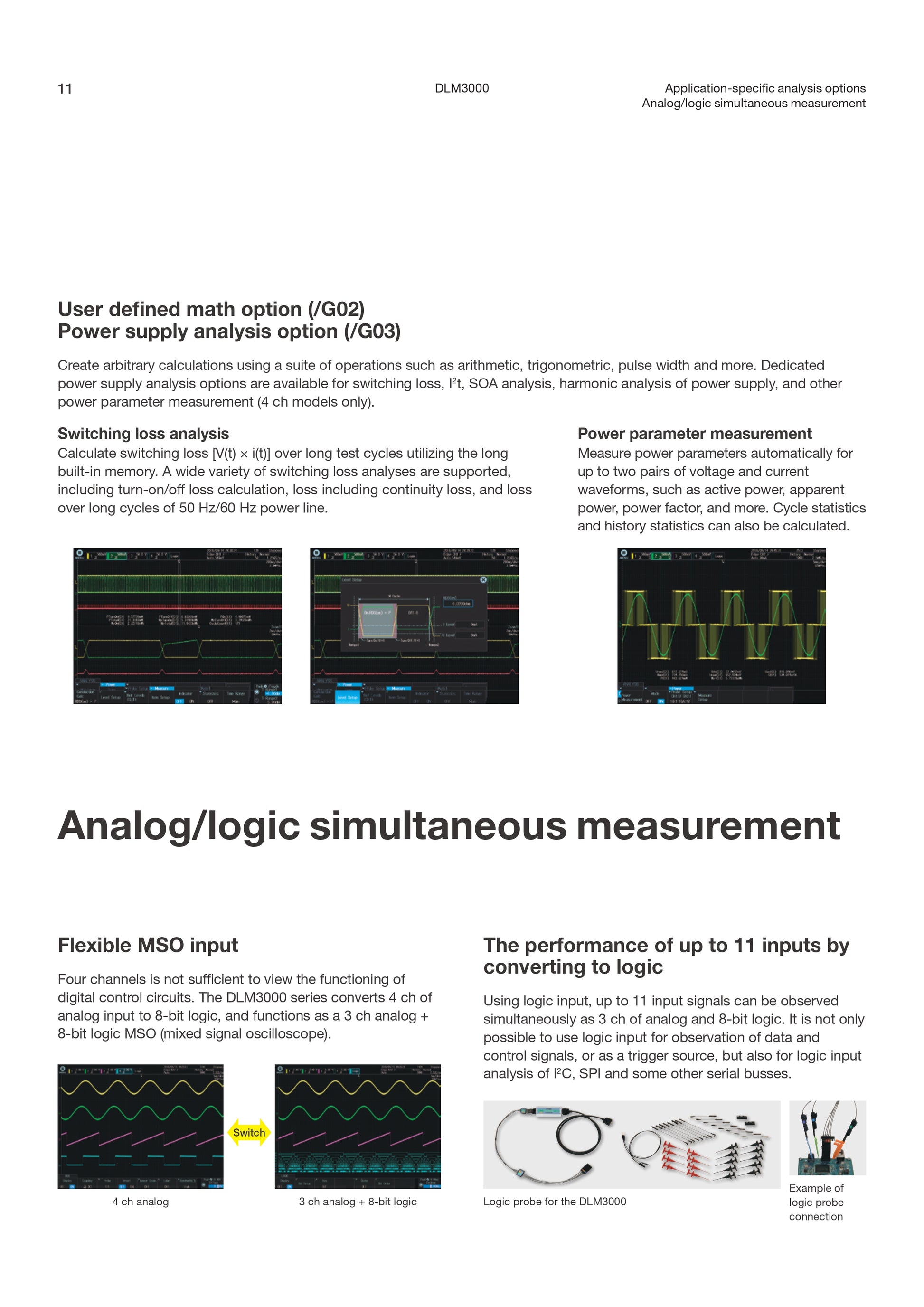

FFT & Power Analysis: Optional /G03 for switching loss, I2t, SOA, harmonic analysis
-

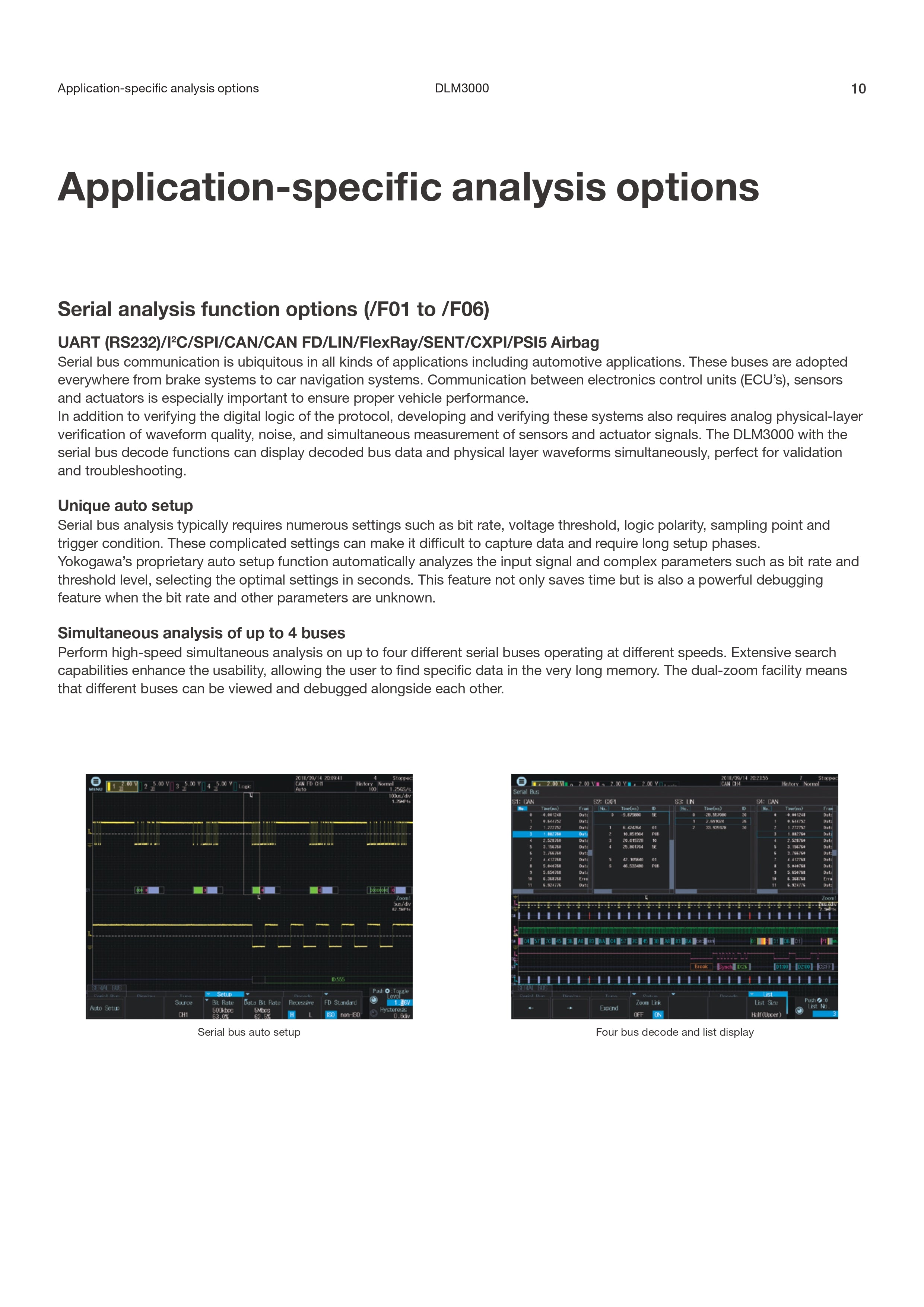

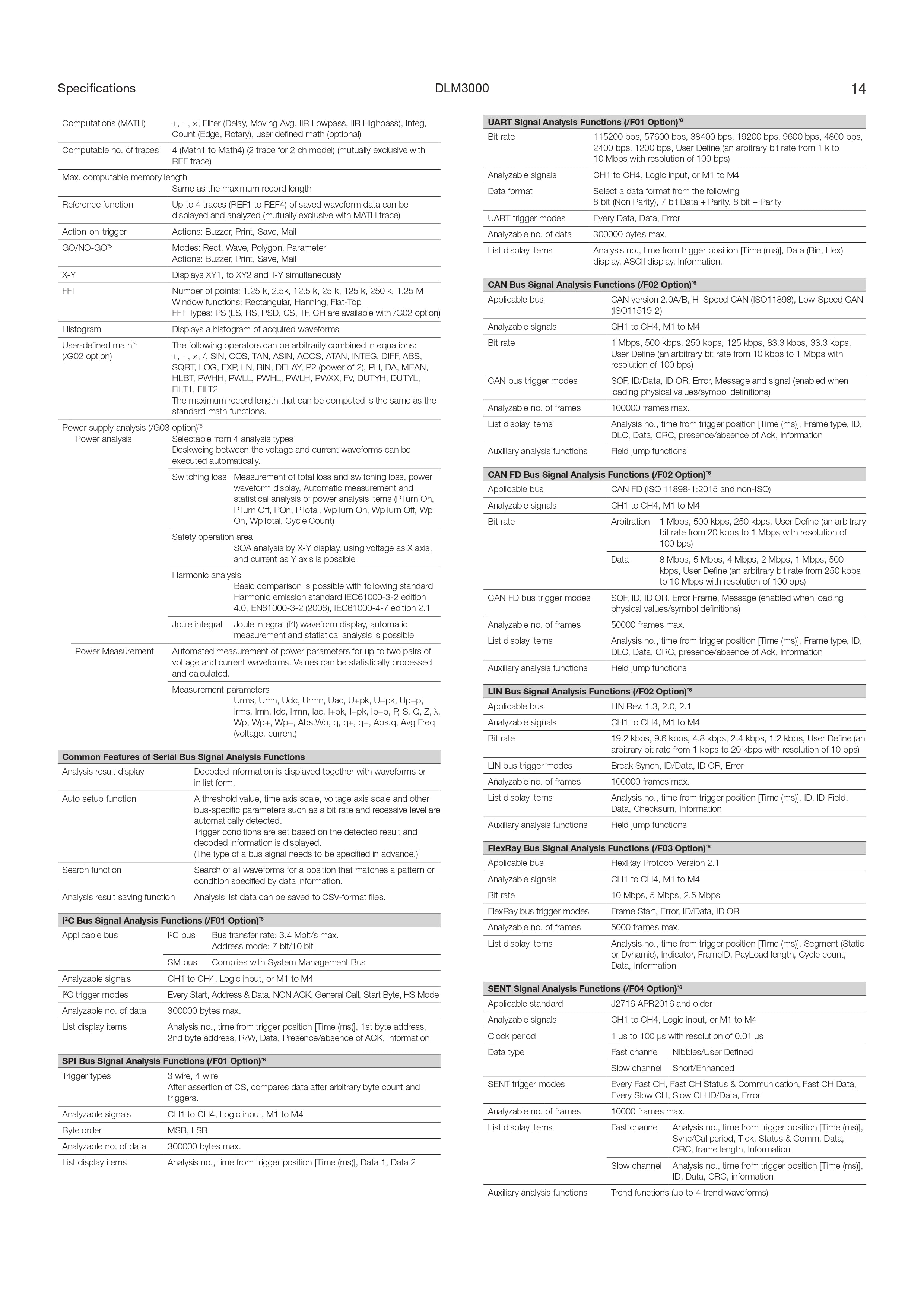

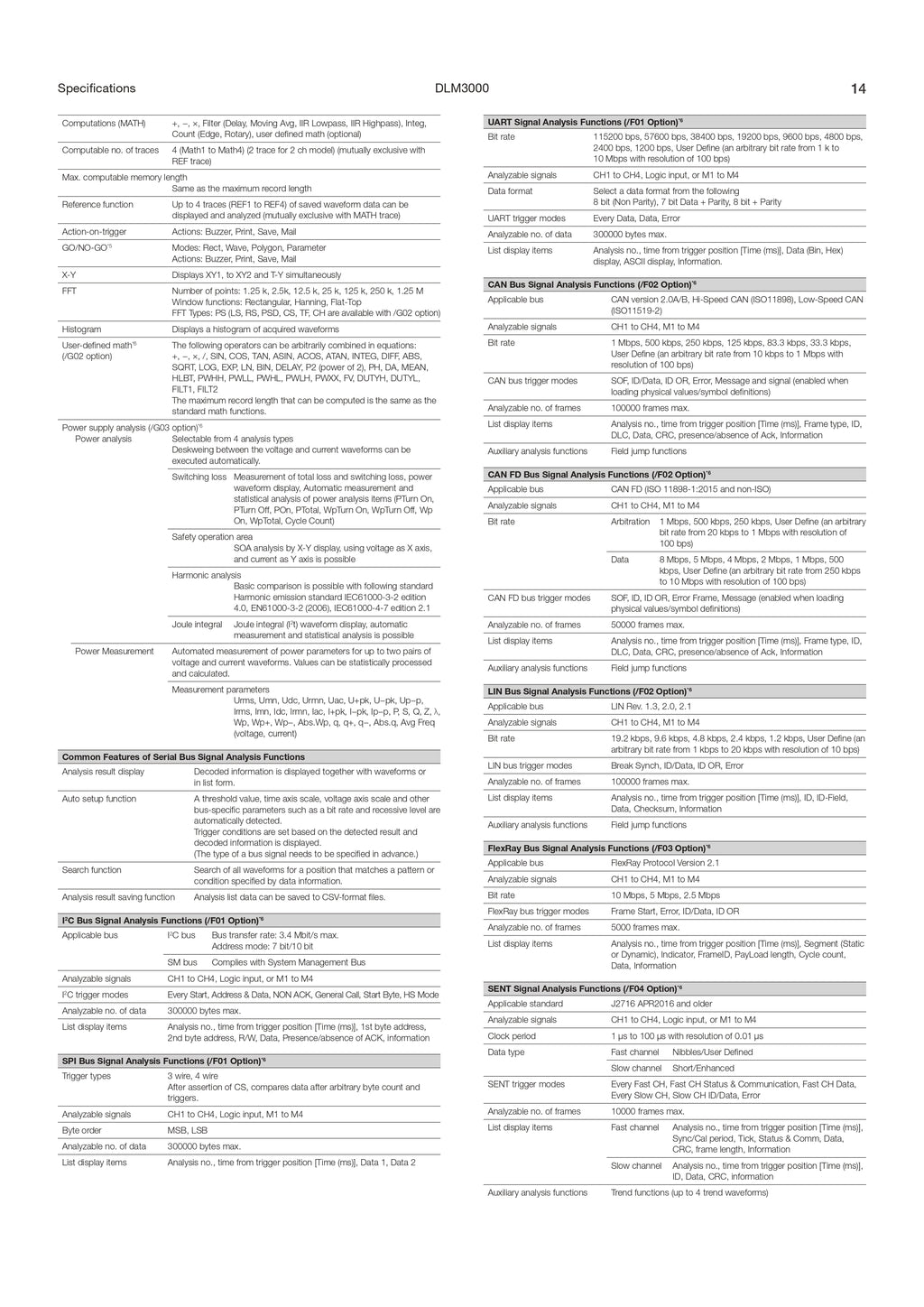

Serial Bus Decode: Optional support for UART, I2C, SPI, CAN, LIN, SENT, and more
-

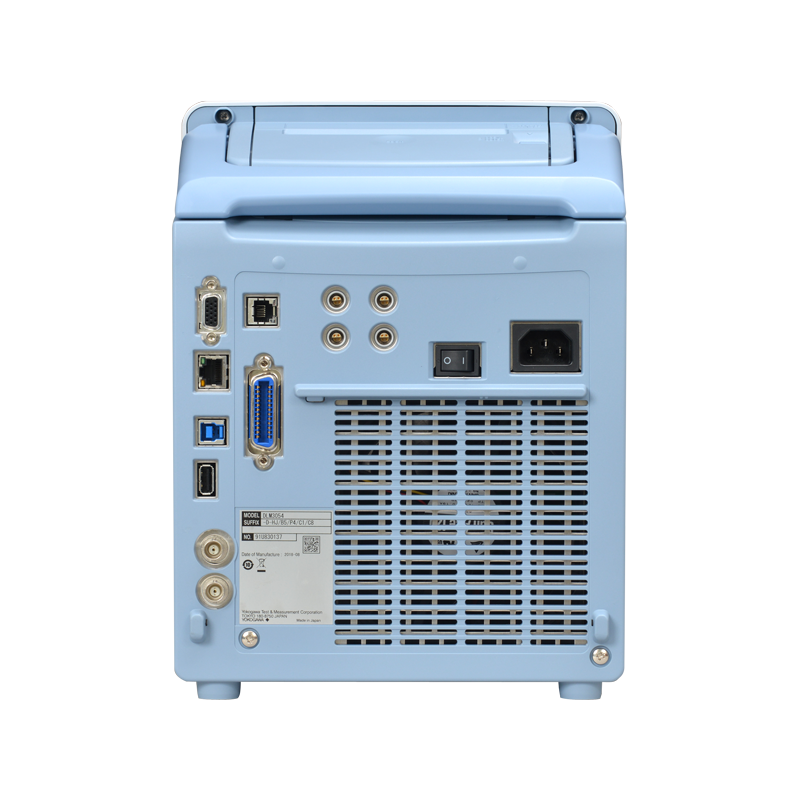

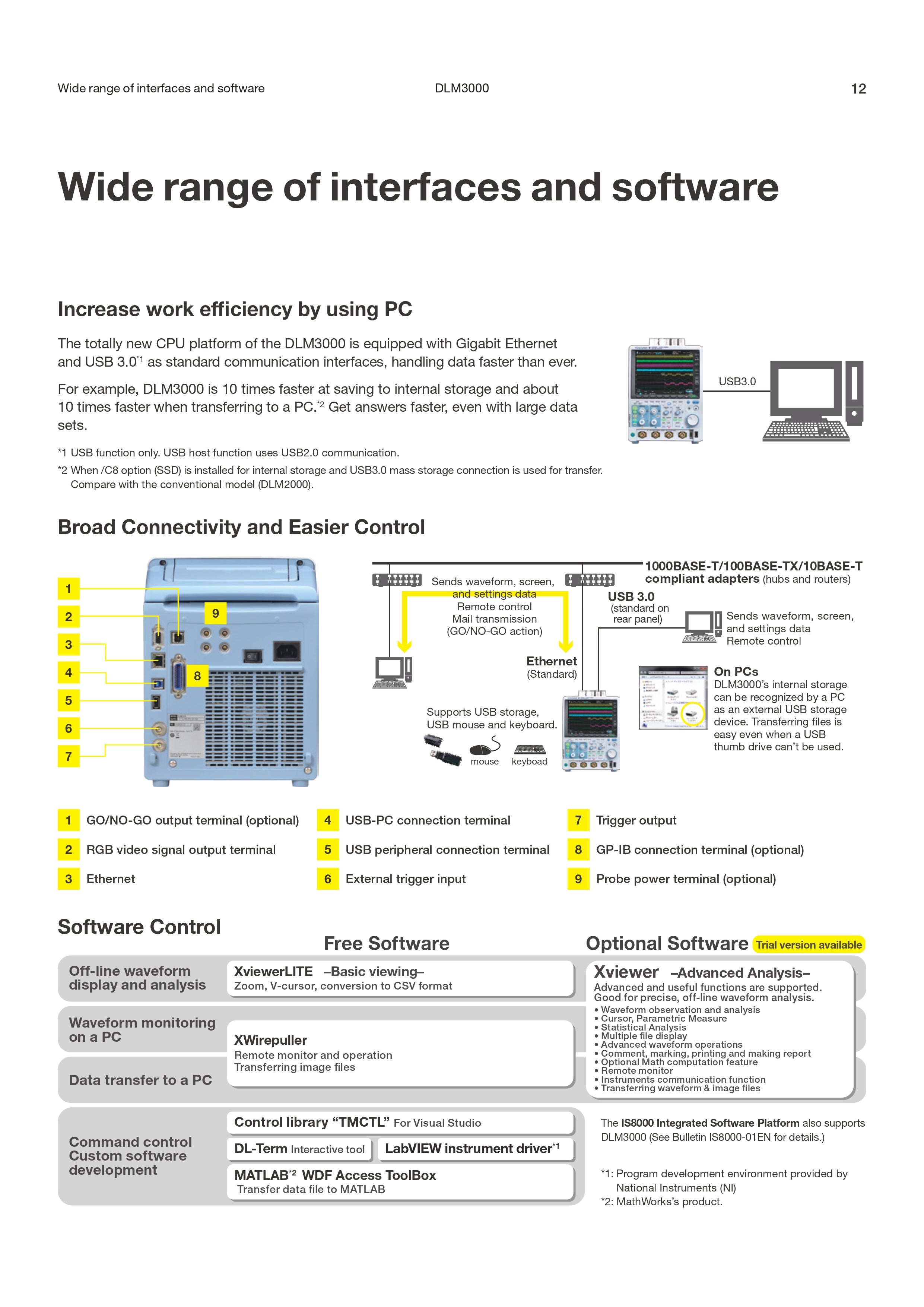

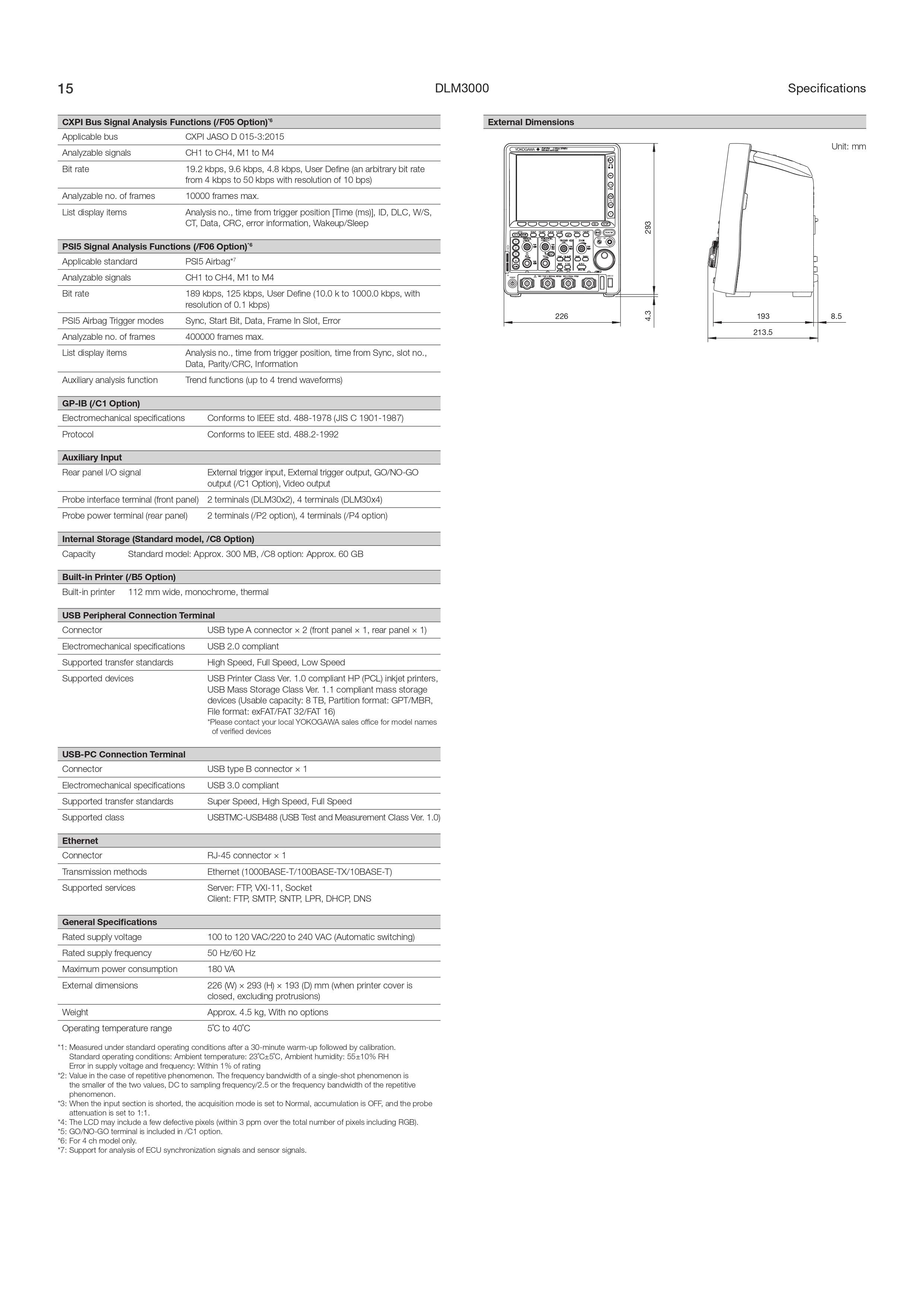

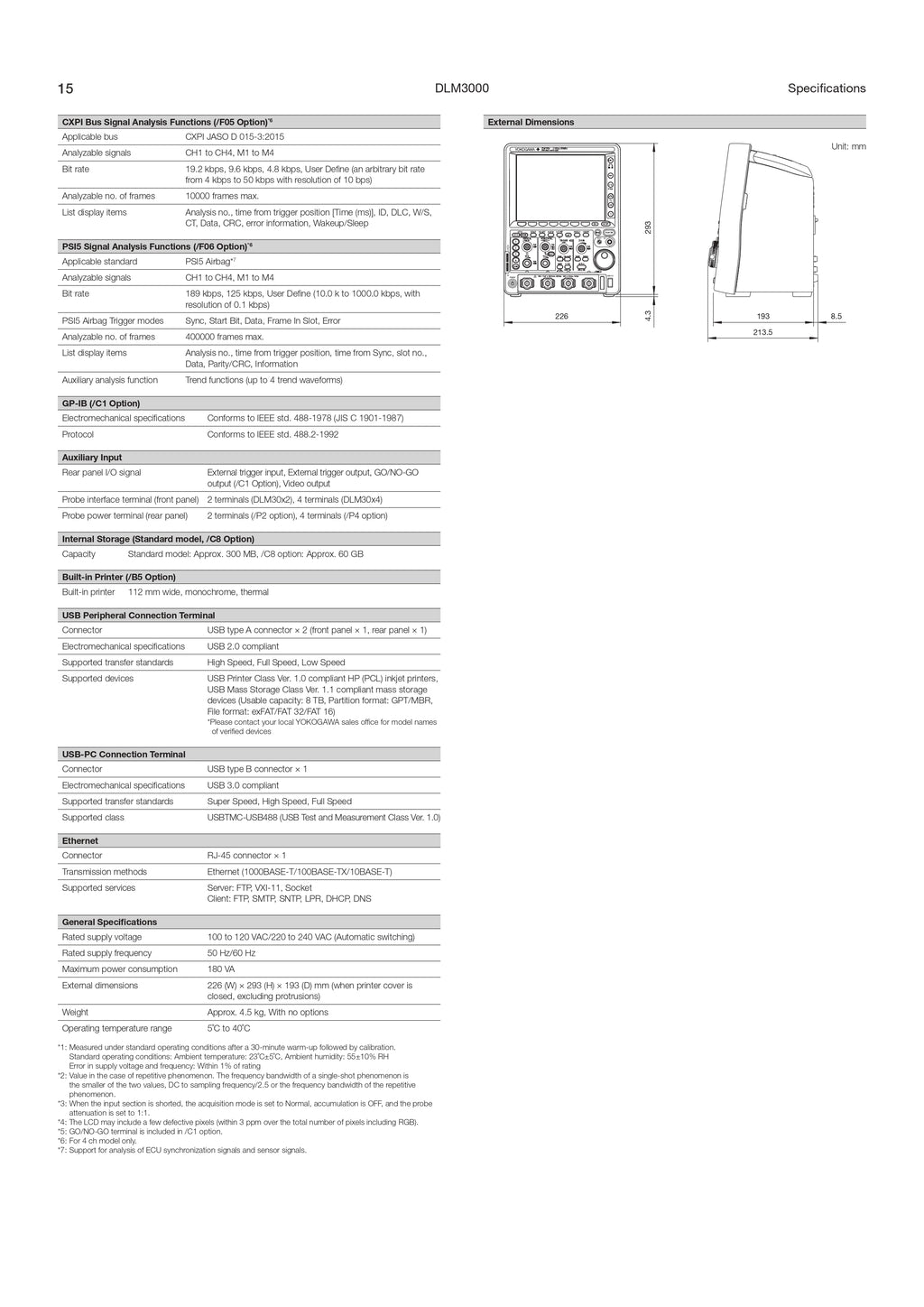

Interfaces: USB 3.0, USB 2.0 Host, Ethernet, logic probe port
Additional Capabilities:
- Logic probe support for 8-bit digital input (MSO)

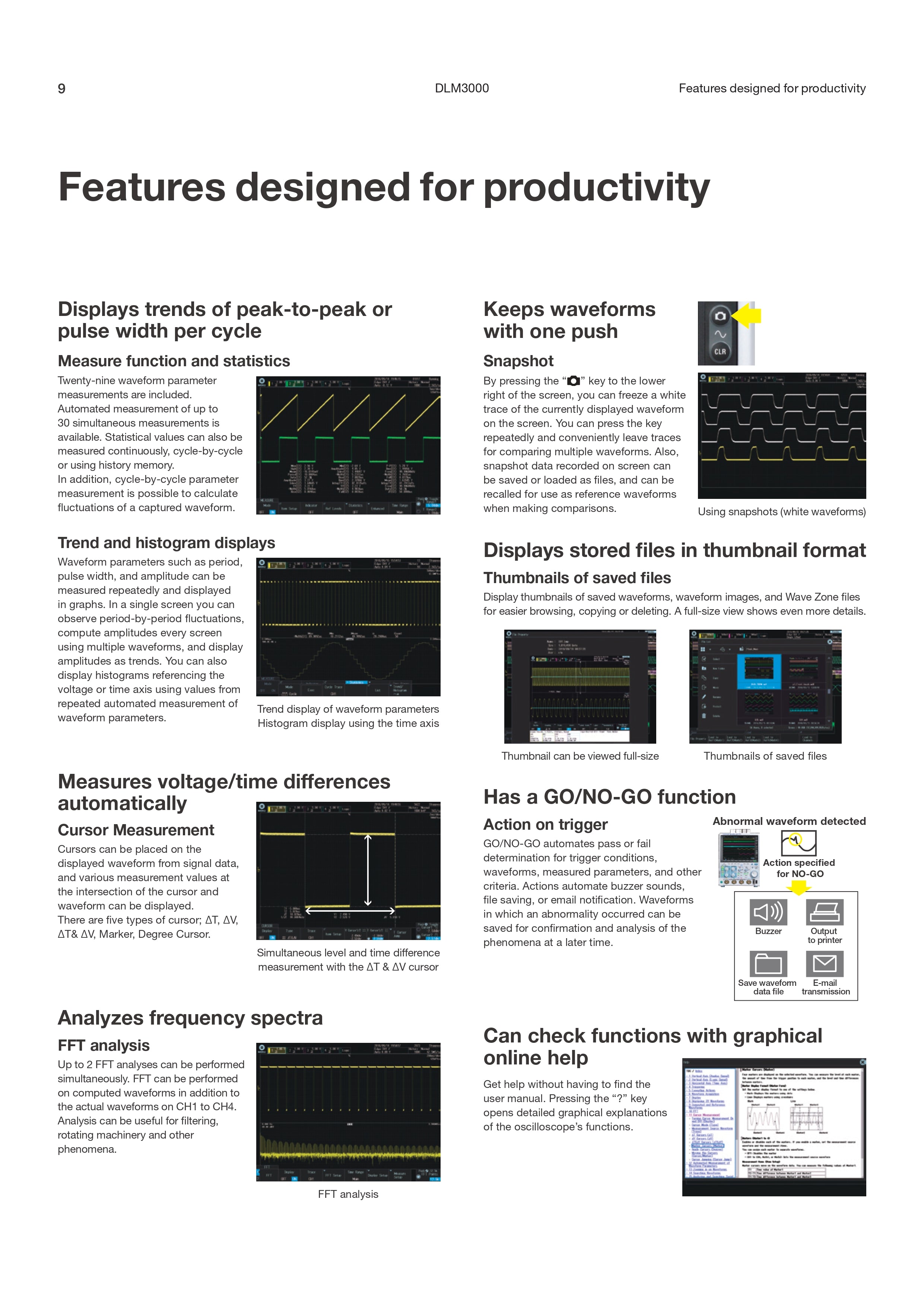

- Go/No-Go function for automated test pass/fail
- Graphical help interface for easier operation
- Snapshot and thumbnail waveform storage
- Auto setup for serial bus decoding

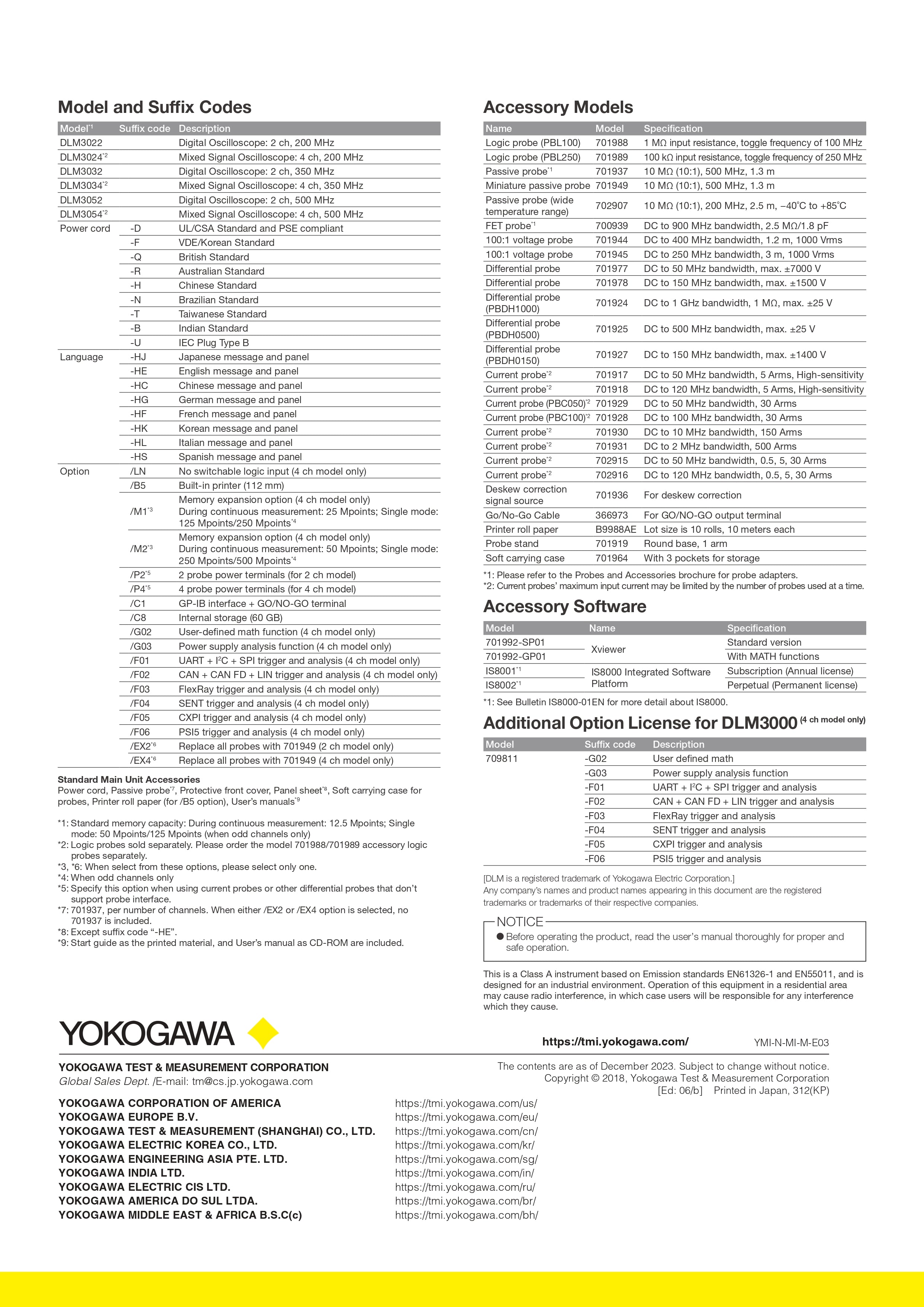

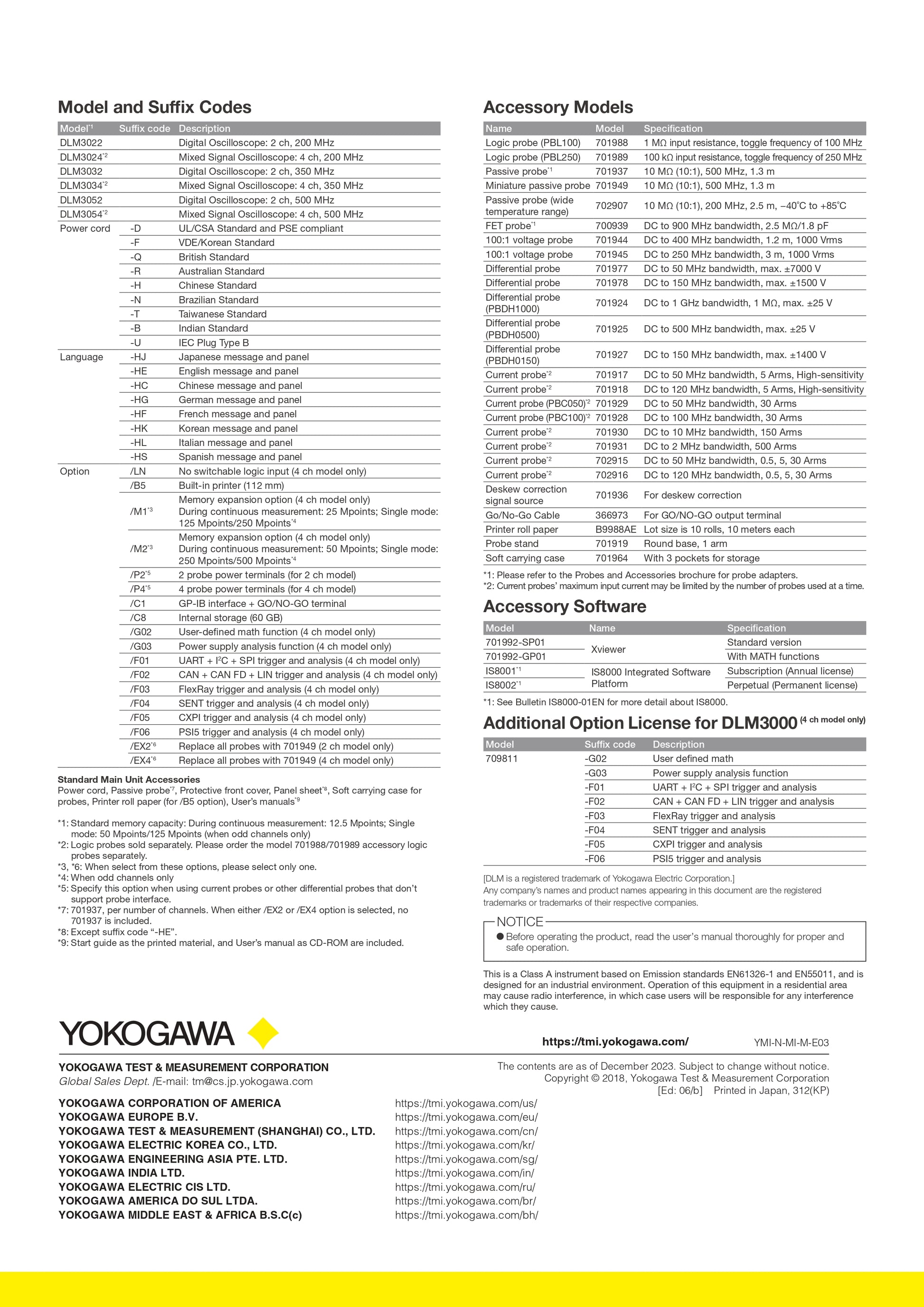

What's in the Box:
- DLM3022 Oscilloscope Main Unit
- Power cord and AC adapter
- User Manual (CD-ROM)
- Standard passive probes (2x)
Ideal For: Embedded systems, automotive electronics, power analysis, communication bus testing, education, and R&D labs.
