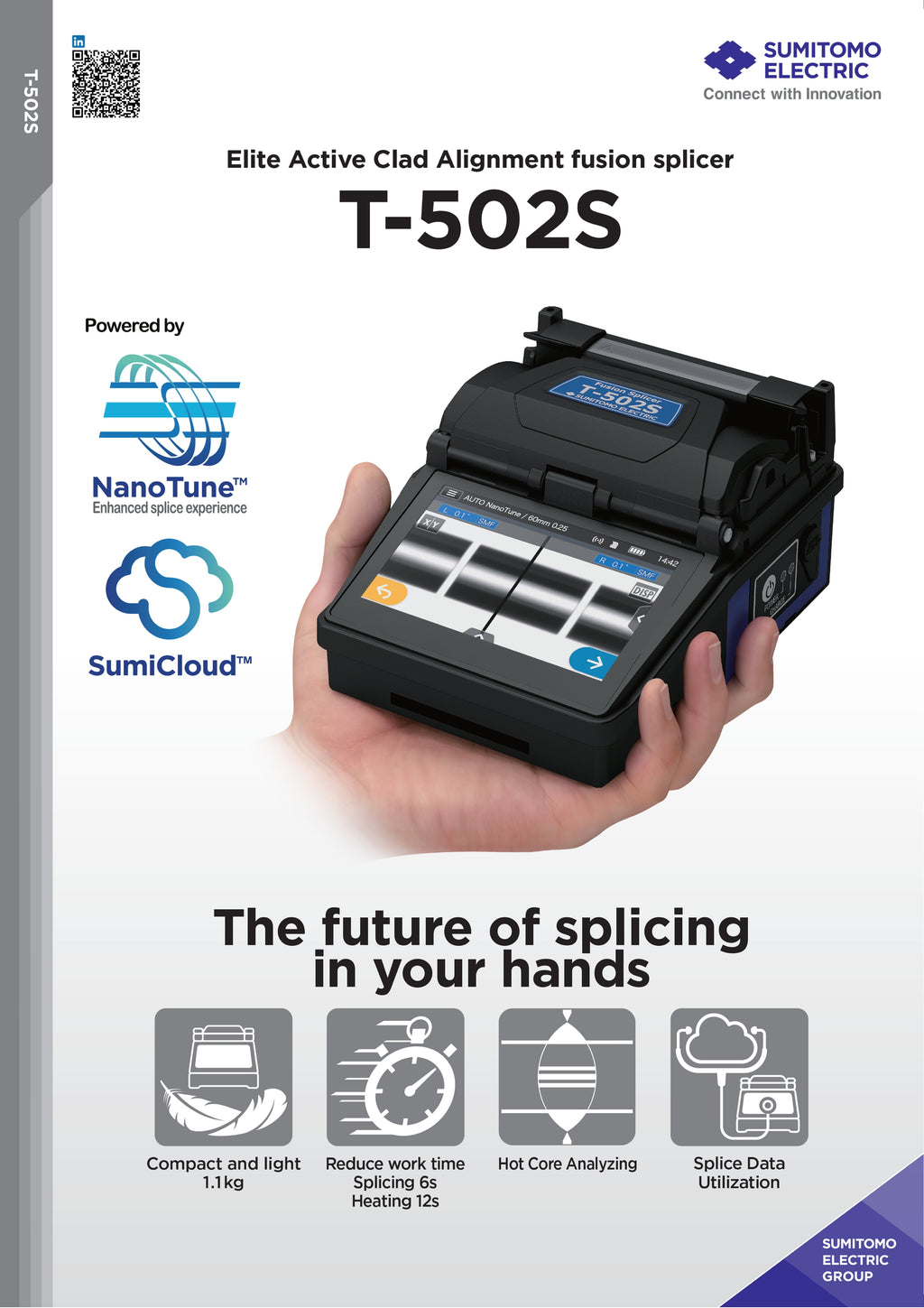

Sumitomo Electric T-502S Fusion Splicer is a high-performance, compact solution designed for fast, precise fiber optic splicing. Powered by NanoTune™ technology and SumiCloud™ connectivity, it ensures an enhanced splice experience and easy management in the field.
Key Features:
- Active Clad Alignment splicing with high environmental resistance.
- Compact and lightweight design at just 1.1kg with battery.
- 4.3" color LCD display with capacitive touch screen for easy operation.
- Fast splice time of 6 seconds and heating time of 12 seconds.
- Dual 2 CMOS camera observation with 180X magnification.
- Splice & Heat cycles per battery full charge: approximately 250.
- Compatible with Sumitomo Nano sleeves, 40mm and 60mm fiber protection options.
- Built-in heater clamp for splice on connector and auto-start functionality.
- Wireless LAN connectivity and Internet-based software updates.
- Durable construction with proven drop, water, and dust resistance (IPx2, IP5x equivalent).

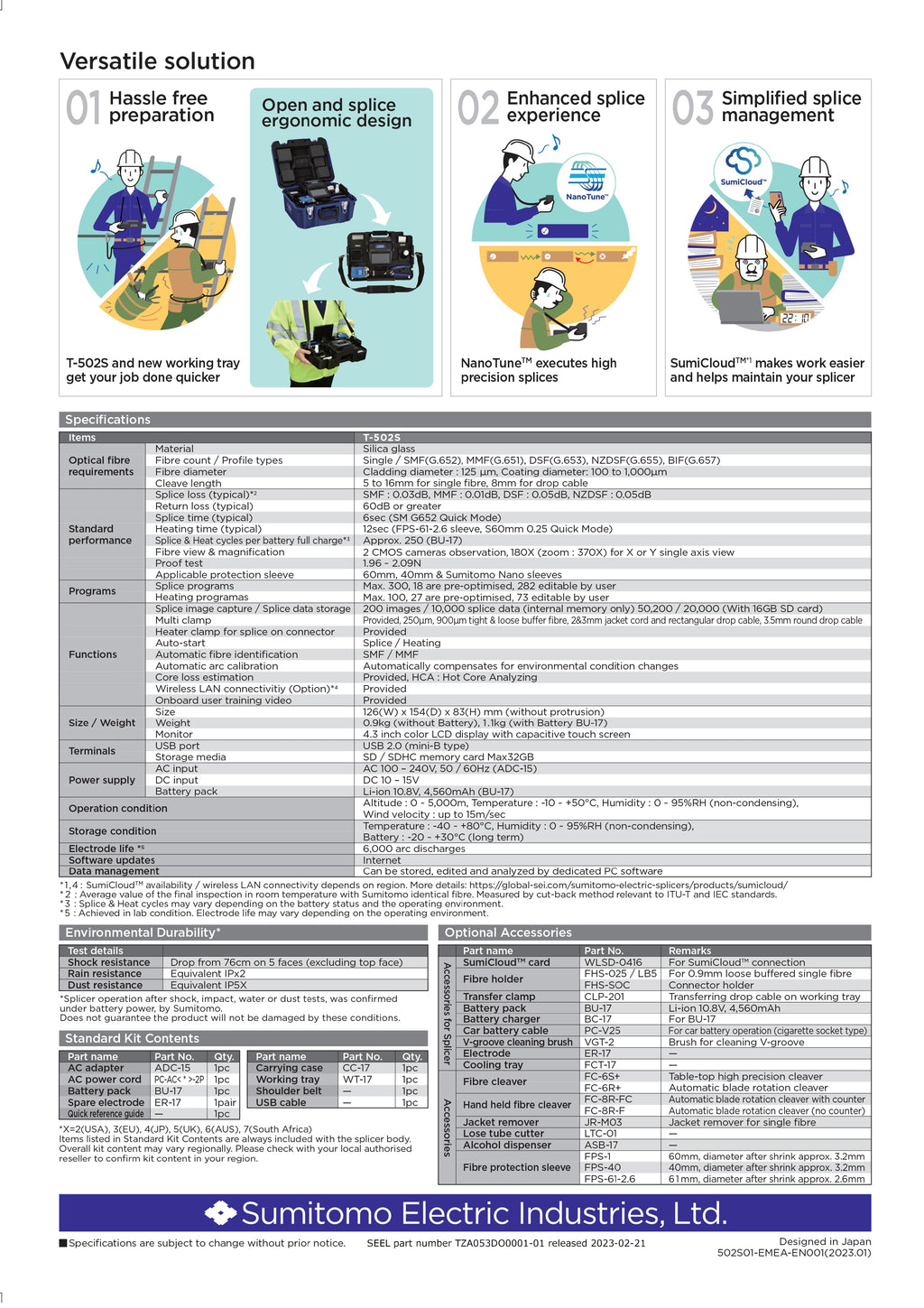

Specifications:
- Material: Silica glass
- Fiber Types: SMF (G.652), MMF (G.651), DSF (G.653), NZDSF (G.655), BIF (G.657)
- Fiber Diameter: 125μm, Coating Diameter: 100 to 1,000μm
- Splice Loss (Typical): SMF: 0.03dB, MMF: 0.01dB, DSF: 0.05dB, NZDSF: 0.05dB
- Proof Test: 1.96 N / 200g
- Storage Media: SD/SDHC memory card, up to 32GB
- Power Supply: AC 100–240V, DC 10–15V, Li-ion Battery 4,560mAh (BU-17)
- Operating Condition: Altitude 0-5,000m, Temperature -10°C to +50°C, Humidity 0-95%RH (non-condensing)
Included Accessories:
- Carrying case (CC-18)
- Working tray (WT-17)
- AC Adapter (ADC-15)
- Battery pack (BU-17)
- Quick reference guide
- Working tray strap kit
Designed for durability and performance, the Sumitomo Electric T-502S Fusion Splicer is your ideal solution for efficient fiber optic fieldwork.
