Wattage: 1000 W continuous output
-
Efficiency: 80 Plus Platinum certified—up to 92% efficient at 50% load; ~70% at low loads (<50%)
-
Compatibility: Intel ATX 3.0 standard compliant, compatible with ATX 3.1; PCIe Gen 5.0 (rev 1.0) / Gen 5.1 (rev 1.1) ready
-
Power Excursion Handling: Supports up to 3× GPU power and 2× total system power excursions; includes native 16-pin cable for up to 600 W output
-
Capacitors: Uses 100% high-quality Japanese capacitors for enhanced reliability
-

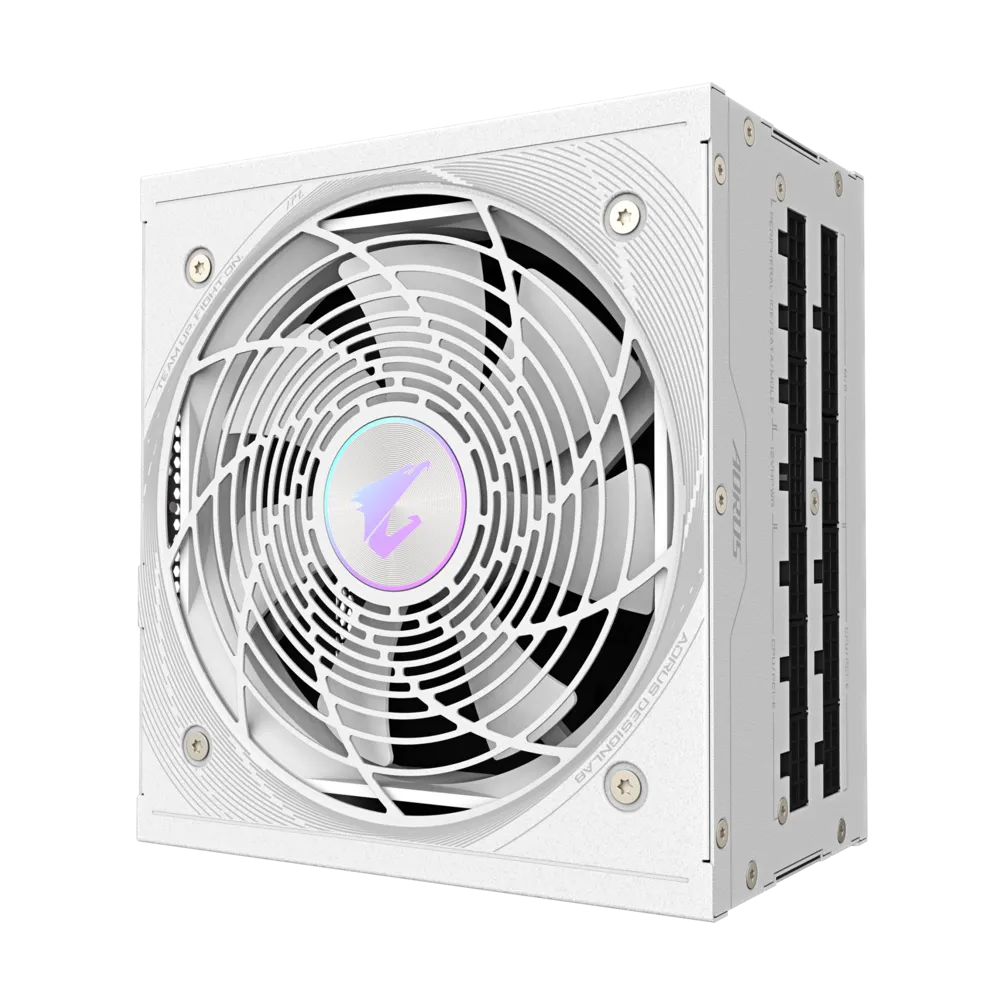

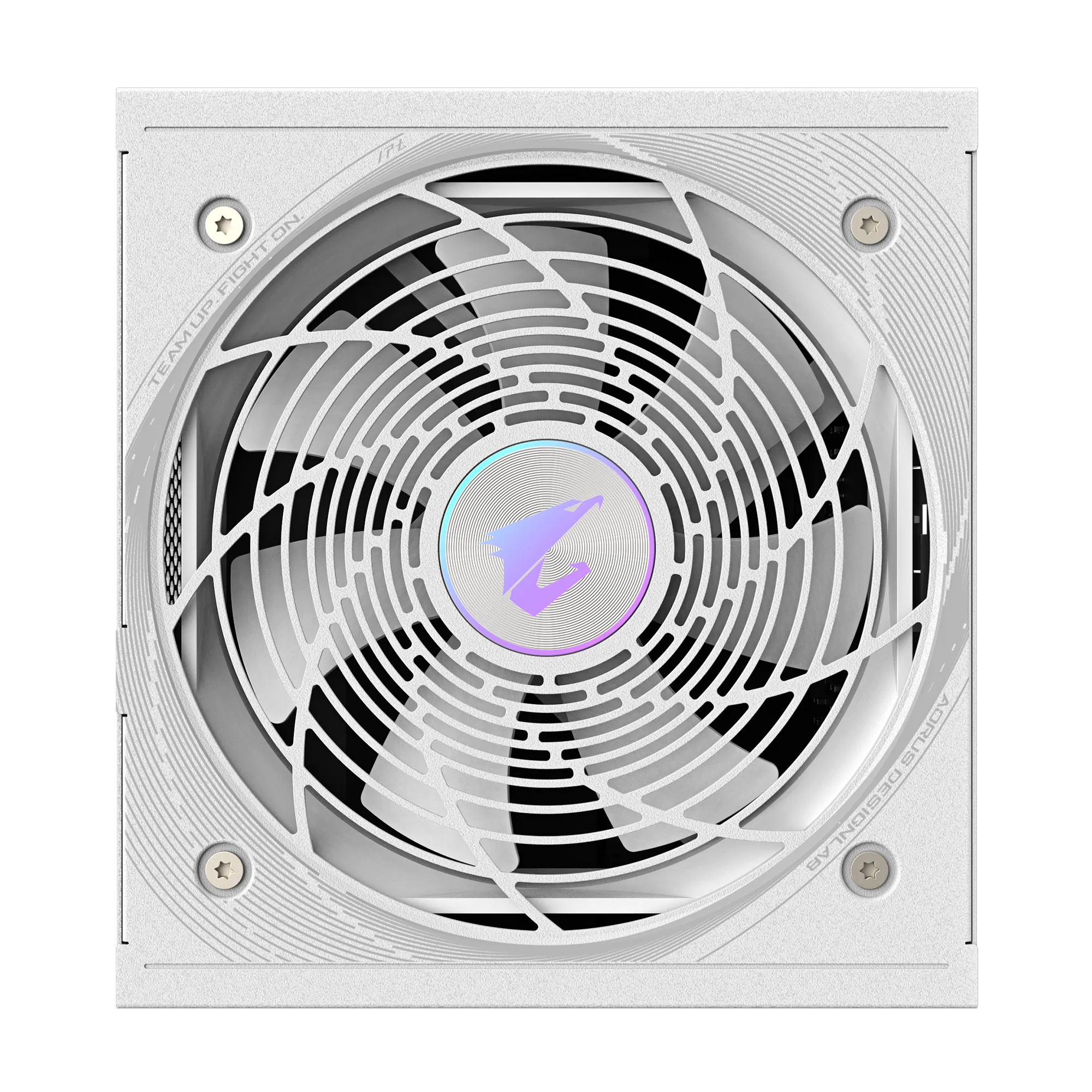

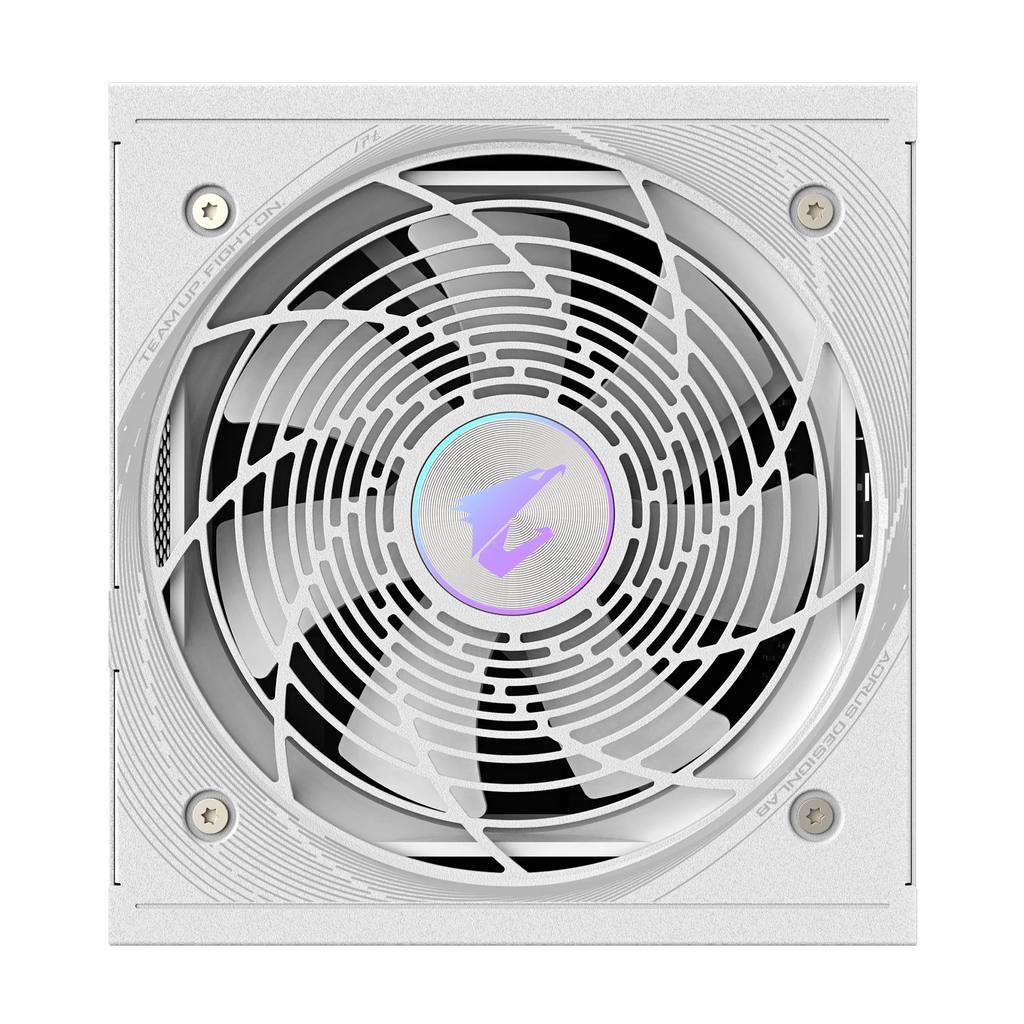

Cooling & Fan: 120 mm smart Fluid Dynamic Bearing (FDB) fan with oil-film shock absorption; stops automatically under low or idle load (<50%)
-

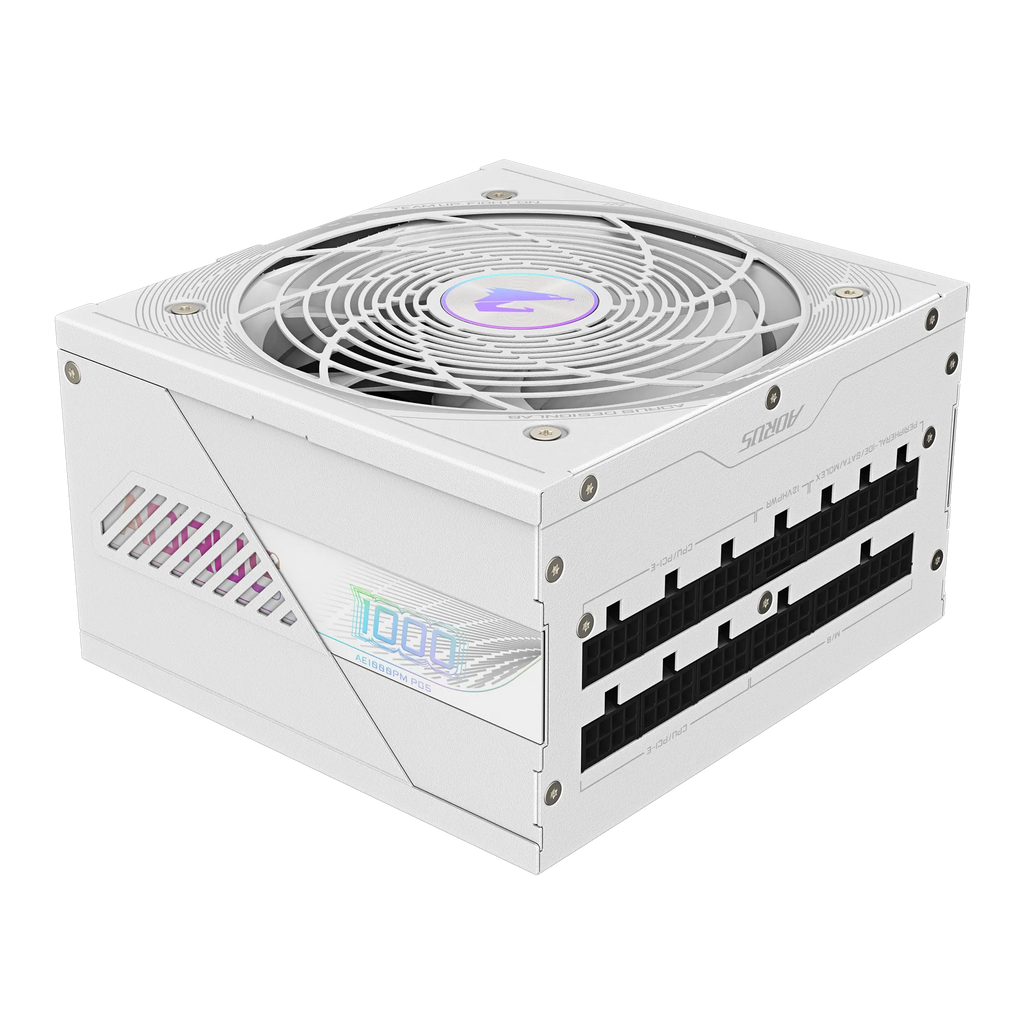

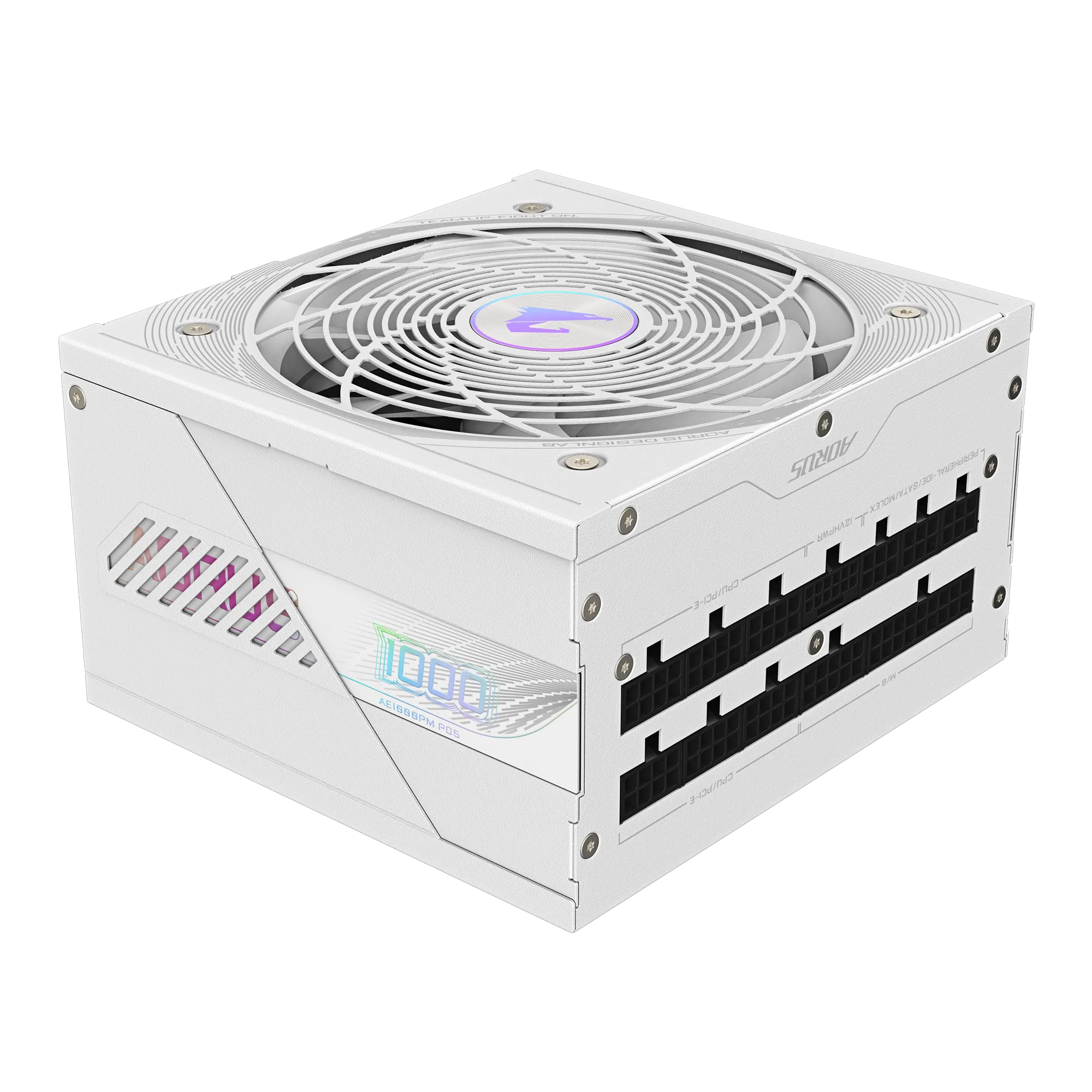

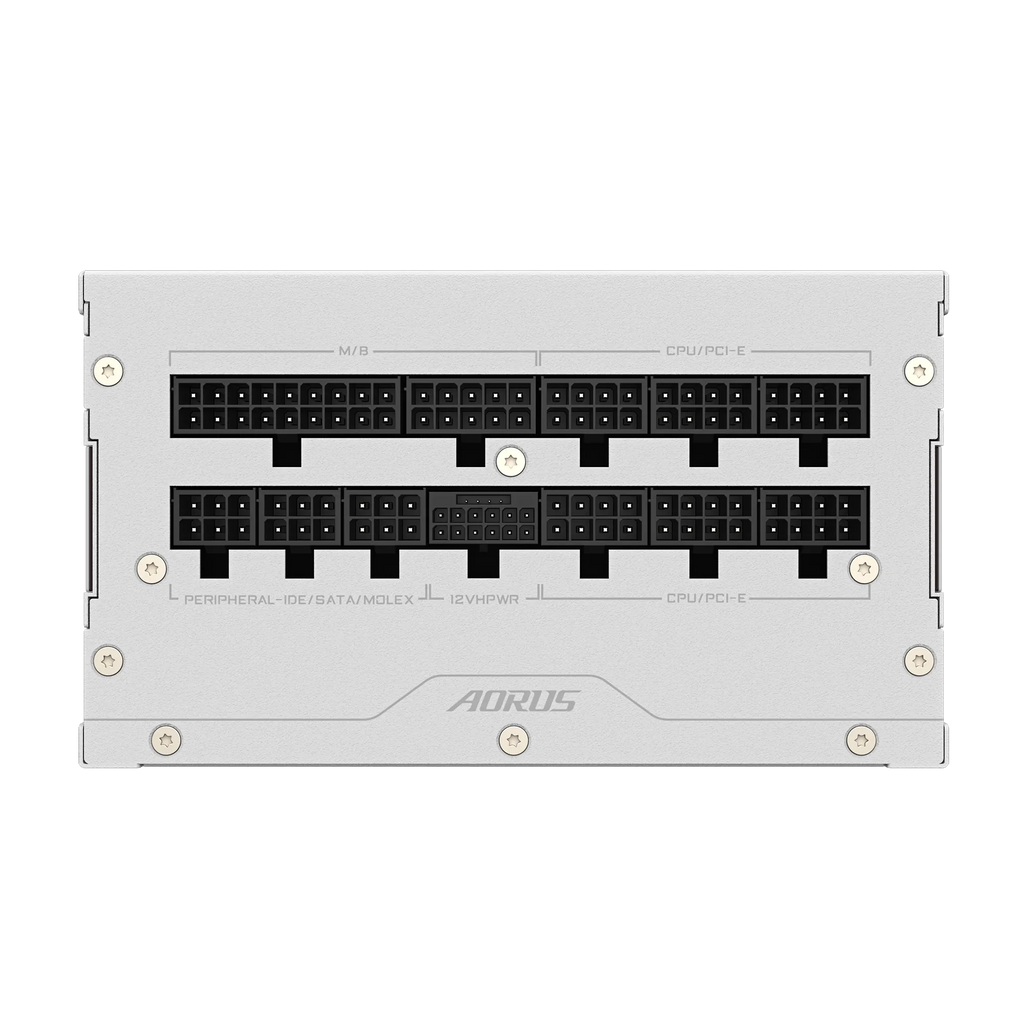

Form Factor & Design: Compact 140 mm length PSU; fully modular flat cables for cleaner builds and improved airflow
-
Rail Design: Single +12 V rail for stable and consistent power delivery—great for overclocking
-
Protection Features: Comprehensive safeguards: OVP, OPP, SCP, UVP, OCP, and OTP for system safety
-
Aesthetic Element: Swappable magnetic AORUS logo plate—neon-metallic design for customizable display
-
Warranty: 10-year manufacturer warranty (regional variations may apply)
-
Additional Specs (from B&H / Retailers):

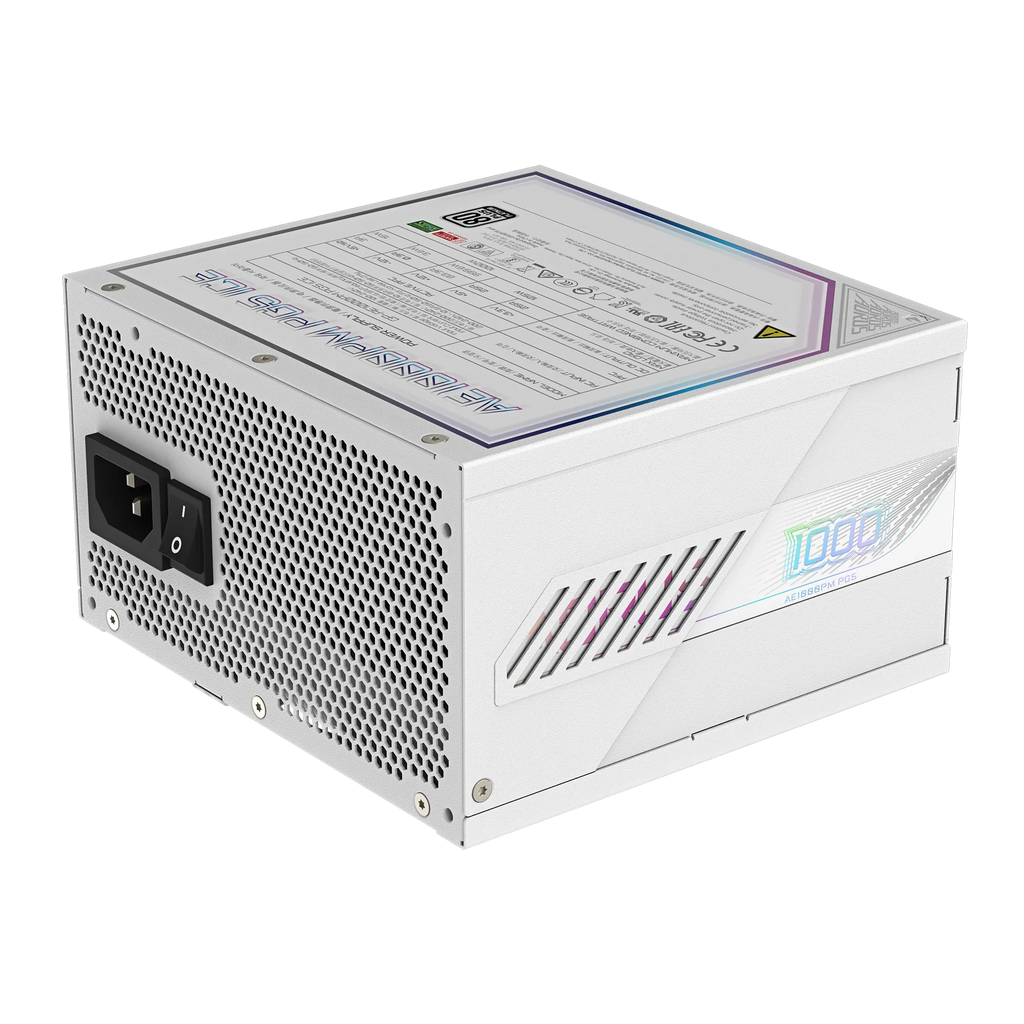

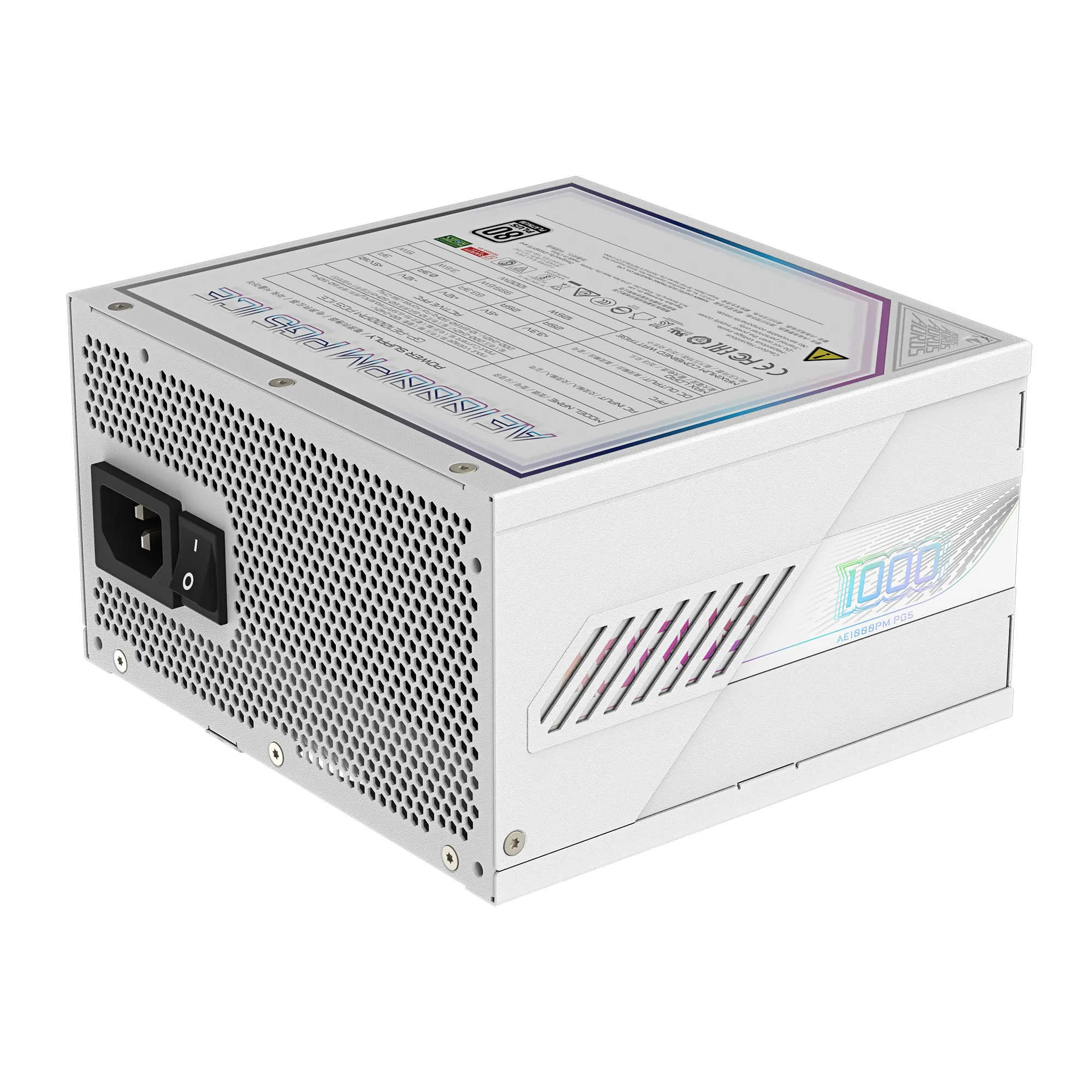

- Input: 100–240 VAC, 50–60 Hz; Input current: ~6.5–15 A
- MTBF: >100,000 hours
