FiberHome 12 Core Figur.8 Optical Cable – G.652D, Black HDPE Sheath, Steel Messenger Wire, PE/GFRP Reinforcement, 5000N Tensile Strength - 4KM

Roll over image to zoom in Click on image to zoom

FiberHome 12 Core Figur.8 Optical Cable – G.652D, Black HDPE Sheath, Steel Messenger Wire, PE/GFRP Reinforcement, 5000N Tensile Strength - 4KM

Name: FiberHome 12 Core Figur.8 Optical Cable – G.652D, Black HDPE Sheath, Steel Messenger Wire, PE/GFRP Reinforcement, 5000N Tensile Strength - 4KM
Brand: FiberHome
SKU: GYFC8Y
Price: 2125000.0 IQD
Availability: InStock

Save 21%

FiberHomeSKU: GYFC8Y

Price:

2,125,000 IQD 2,685,000 IQD

Quantity:

Share this product

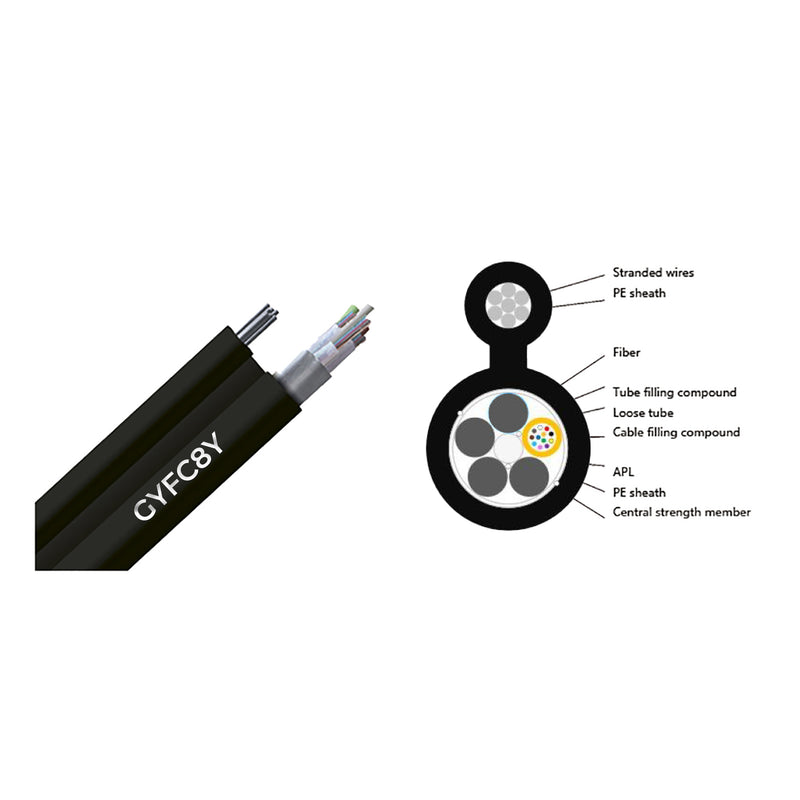

Figur.8 fiber optic cable available in 12F core options
Fiber type: G.652D single-mode optical fiber
Loose tubes made of PBT, filled with water-blocking gel
Central Strength Member: GFRP rod with optional PE sheath
Stranded Galvanized Steel Messenger Wire: 7×1 mm for suspension
Outer Sheath: Black UV-resistant HDPE
Outer dimensions: 9.2 ± 0.5 mm (width) × 16.5 ± 0.5 mm (height)
Weight: ~131 ± 15 kg/km

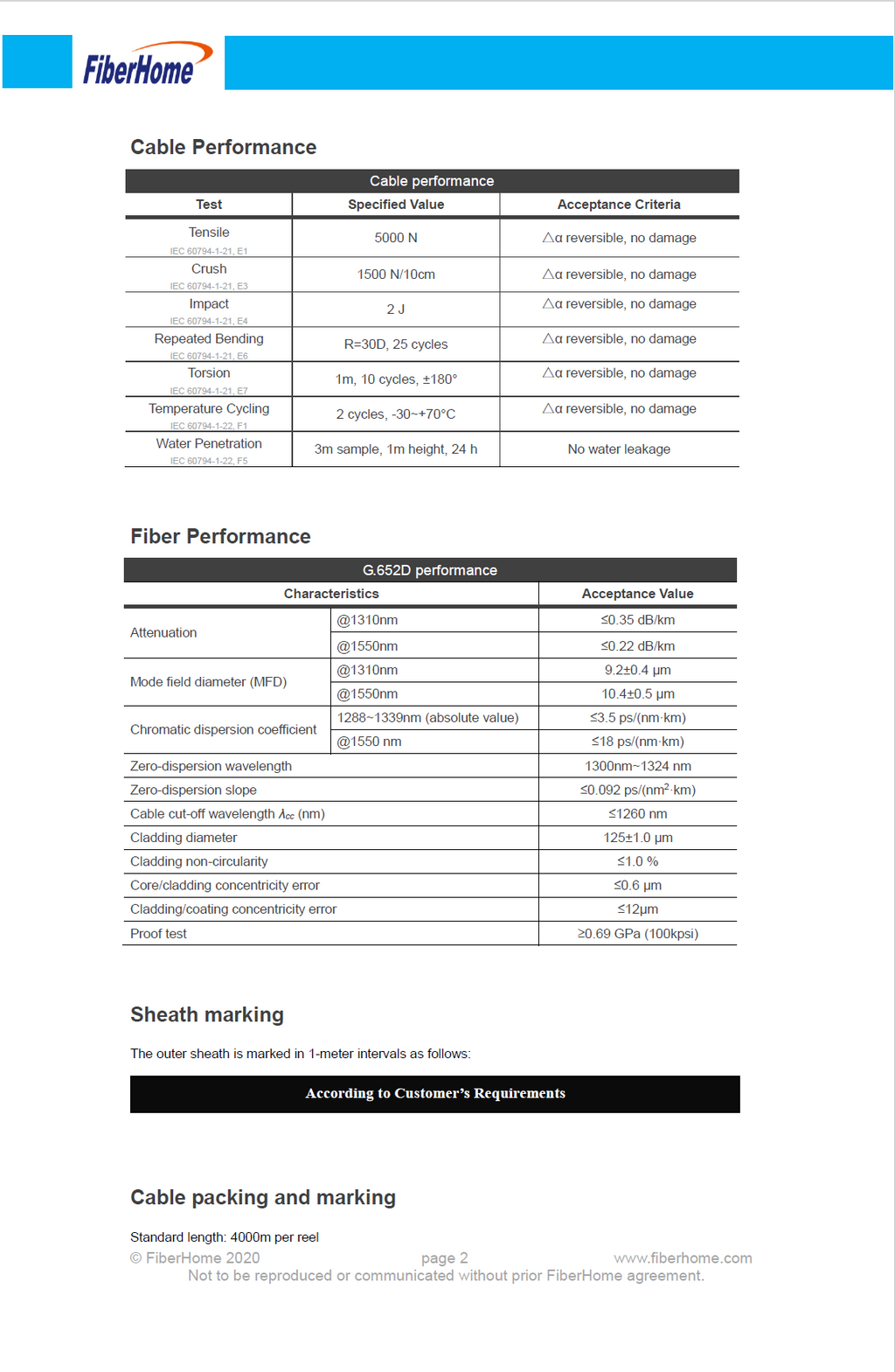

Max tensile strength: 5000N | Crush resistance: 1500 N/10cm
Impact resistance: 2J | Torsion, bending, and thermal cycle tested
Operating temperature: -30°C to +70°C
Water penetration resistant (IEC 60794-1-22, F5)
Attenuation: ≤0.35 dB/km @1310nm | ≤0.22 dB/km @1550nm
Standard delivery: 4000m per reel
