- 4‑stream dual‑band Wi‑Fi 6: 1201 Mbps @5 GHz + 300 Mbps @2.4 GHz; 2×2 MIMO per band :contentReference[oaicite:0]{index=0}
- Supports up to 60 devices; covers approx. 100 m² (1,100 ft²) :contentReference[oaicite:1]{index=1}

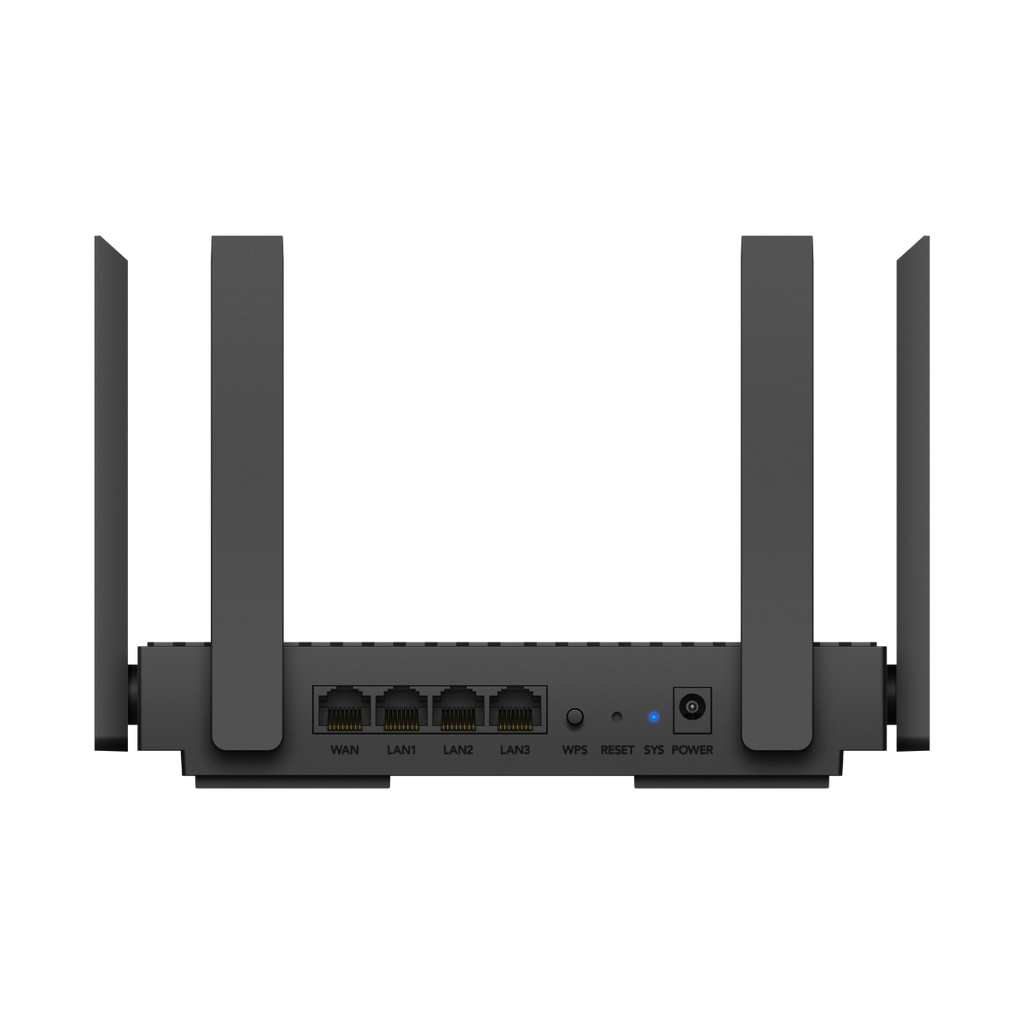

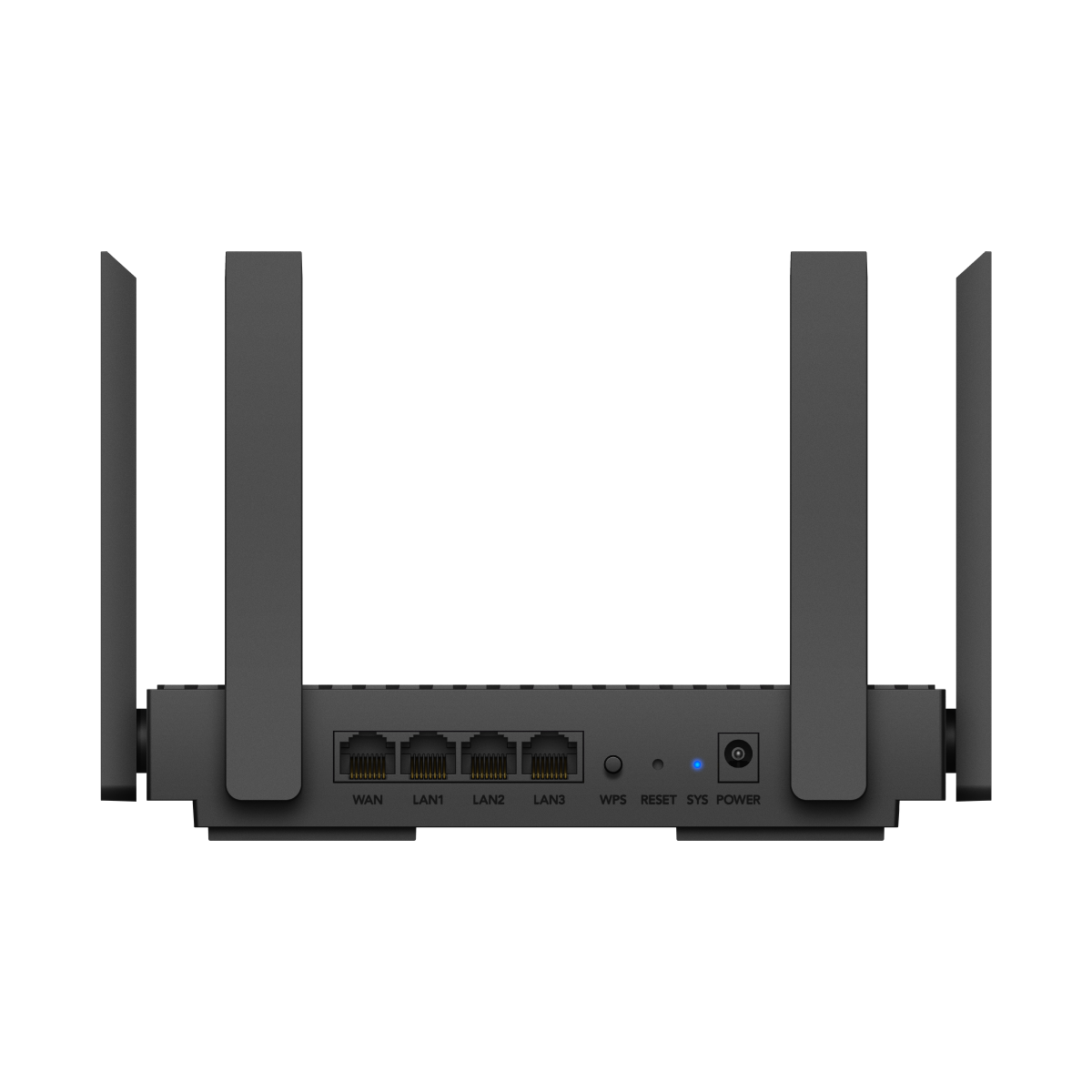

- 4× Gigabit RJ‑45 ports (1 WAN + 3 LAN); suitable for router, AP, extender, WISP, client modes :contentReference[oaicite:2]{index=2}
- Beamforming, MU‑MIMO, OFDMA, BSS Color for high capacity and low latency :contentReference[oaicite:3]{index=3}
- Security: WPA2/WPA3 encryption; WPS and reset buttons :contentReference[oaicite:4]{index=4}
- Mesh support via Cudy Mesh system; wireless or wired backhaul :contentReference[oaicite:5]{index=5}
- CPU: 1 GHz single‑core (RTL8197H); Memory: 128 MB DDR2; Storage: 16 MB NOR flash :contentReference[oaicite:6]{index=6}
- 4× fixed internal antennas; beamforming tech enhances coverage :contentReference[oaicite:7]{index=7}
- Max range: ~170 m open space; tested through 2 wooden + 1 concrete wall :contentReference[oaicite:8]{index=8}
- Power input: DC 12 V 1 A; power adapter 100–240 V AC; max power ≈ 10 W :contentReference[oaicite:9]{index=9}
- Operating temp: 0–40 °C; storage: –40–70 °C; humidity: 10–90% non‑condensing :contentReference[oaicite:10]{index=10}
- Dimensions: 183.3 × 109 × 35 mm; weight ~220 g :contentReference[oaicite:11]{index=11}
- Certifications: FCC, CE :contentReference[oaicite:12]{index=12}

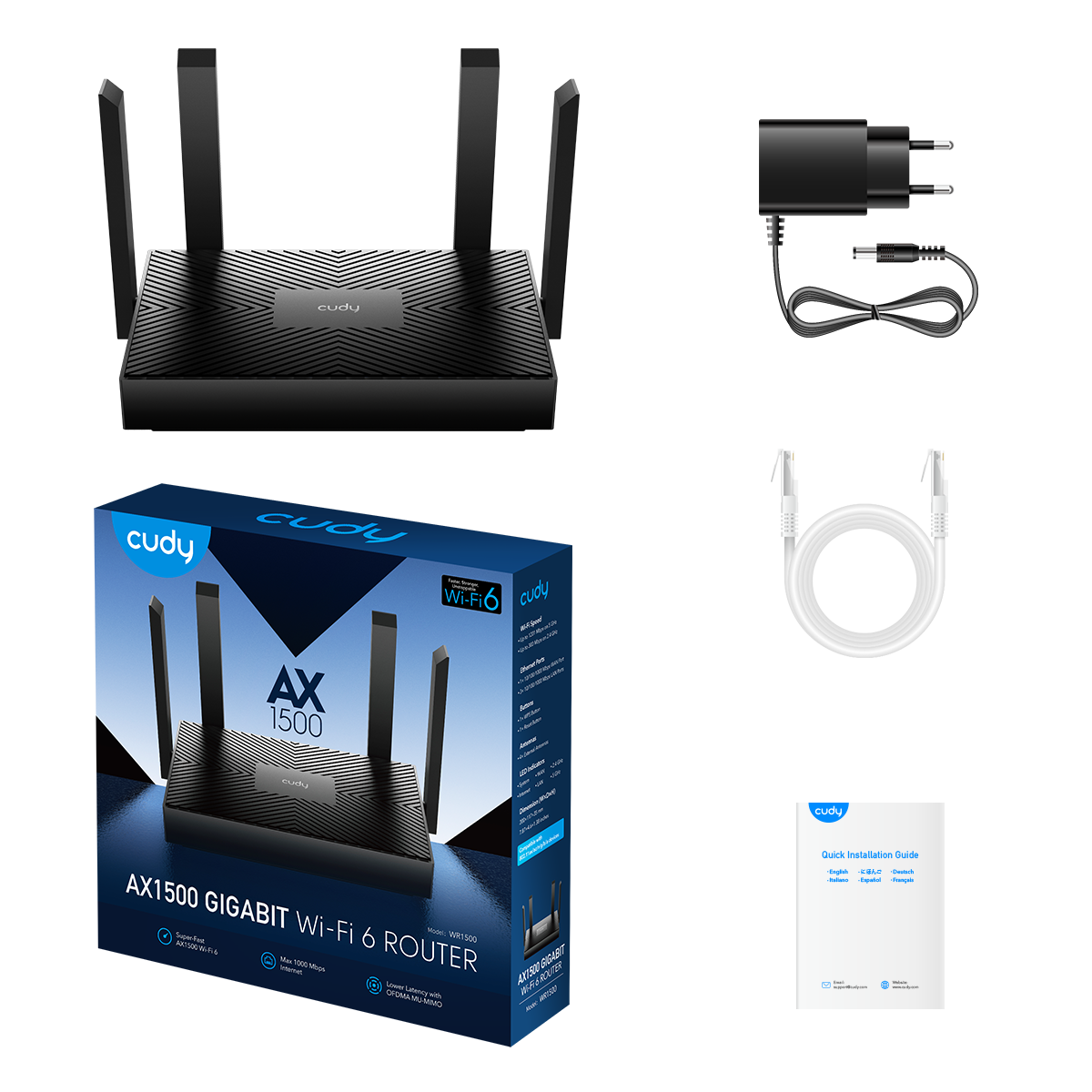

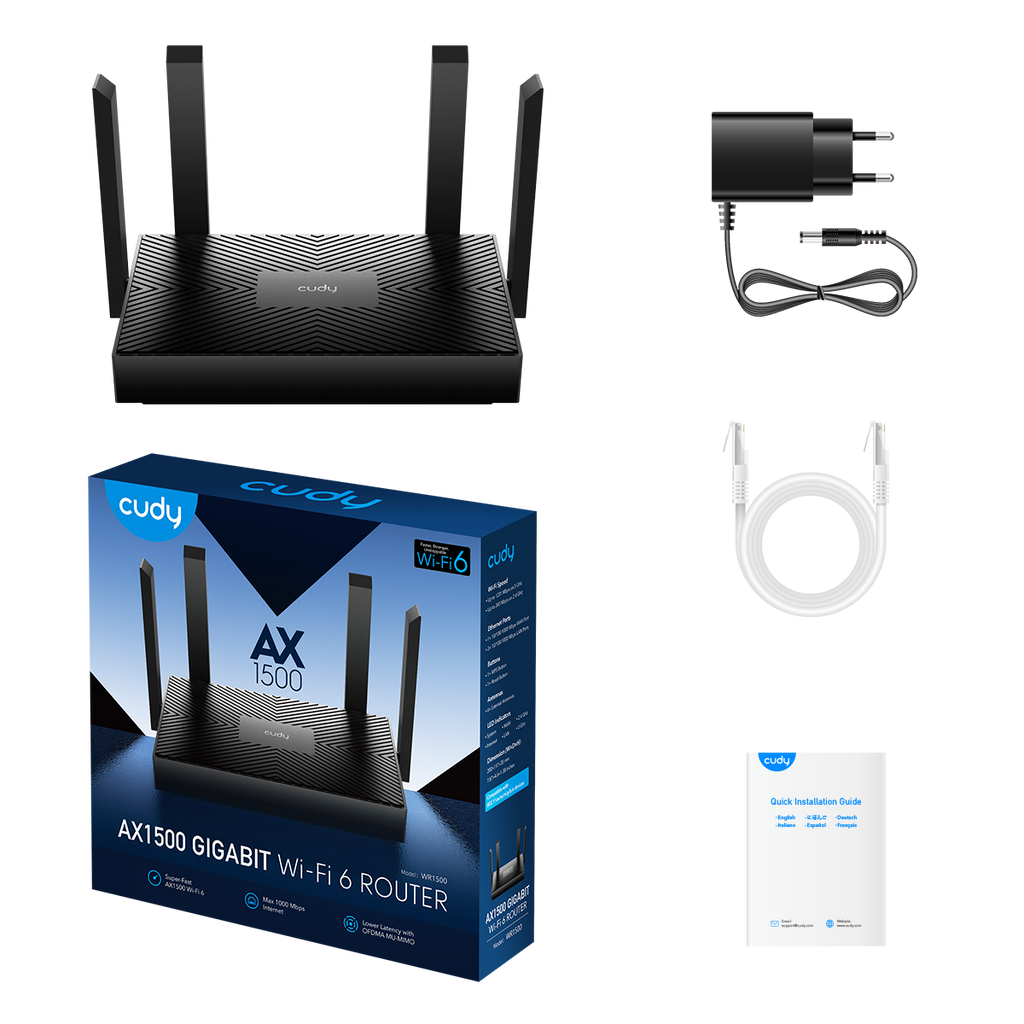

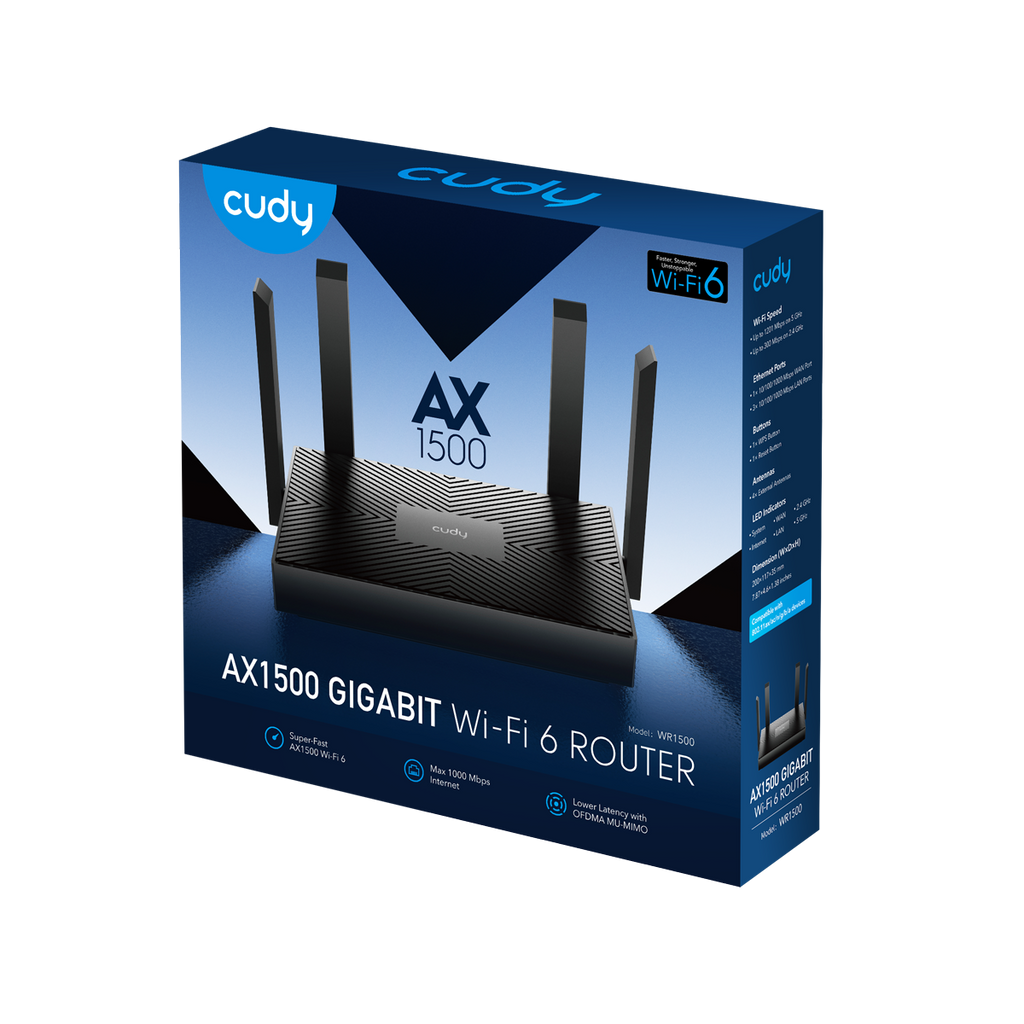

- Package includes: WR1500 router, power adapter, Ethernet cable, installation guide, 1‑year warranty :contentReference[oaicite:13]{index=13}
