Product Description

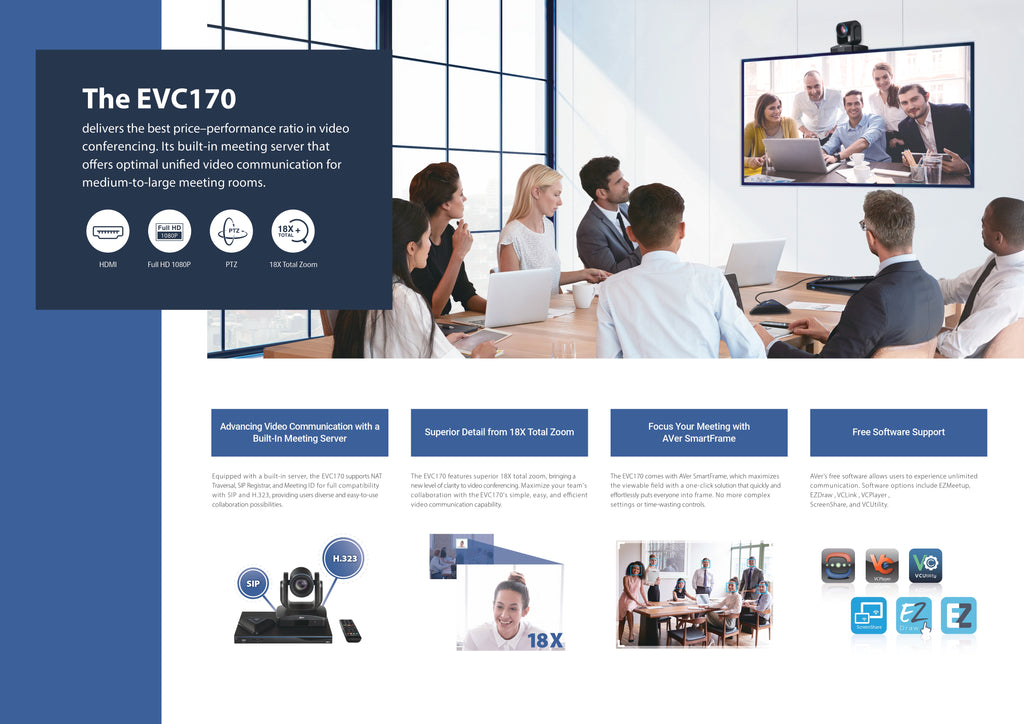

The AVer EVC170 delivers high-quality Full HD video conferencing with an integrated PTZ camera and built-in meeting server, ideal for medium to large meeting rooms. With SmartFrame technology, 18X total zoom, and dual monitor output, the EVC170 offers seamless, easy-to-use unified communication. It supports both SIP and H.323 protocols and features advanced audio/video capabilities including acoustic echo cancellation, content sharing, and offline recording.
Key Features
-
Full HD 1080p Video at up to 60fps for crystal-clear conferencing
-
eCam PTZ IV Camera with 18X total zoom (12X optical + 1.5X digital)
-
Built-in Meeting Server with SIP Registrar, NAT Traversal, and Meeting ID support
-
SmartFrame Technology for automatic participant framing
-
Dual Monitor Support for video and content sharing
-
Multi-party Recording to USB flash drive with re-layout and playback tools
-
Free Software Suite: EZMeetup, EZDraw, ScreenShare, VCLink, VCPlayer
-
Support for H.323 and SIP video conferencing standards

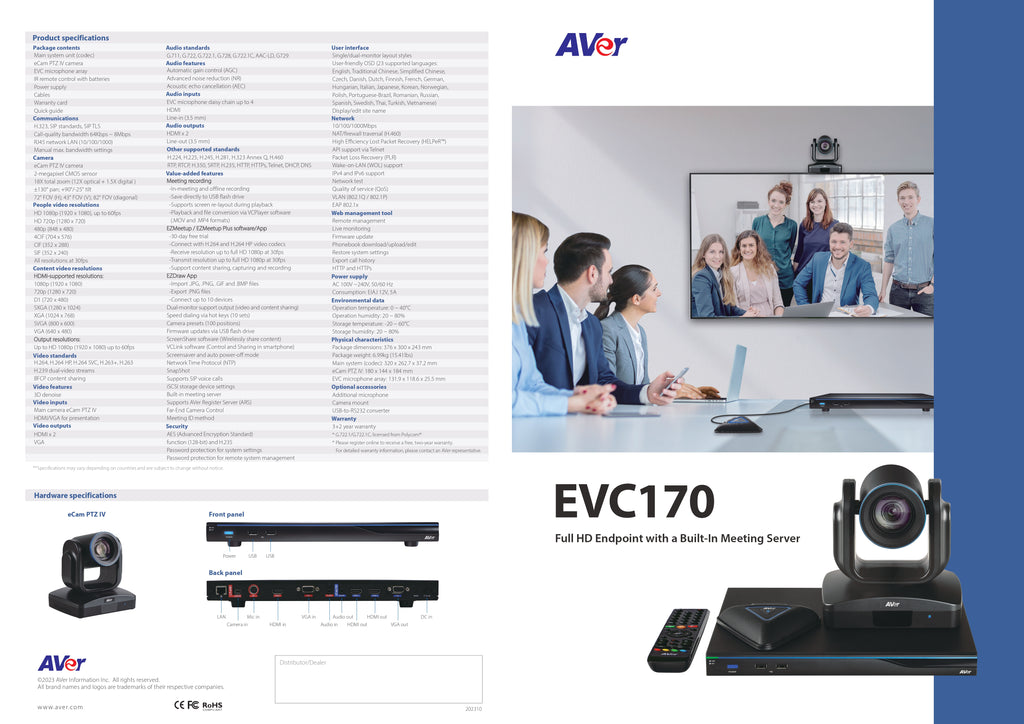

Video & Audio Specifications
-
Camera: 2MP CMOS, ±130° pan, +90°/-25° tilt, 72° (H) FOV
-
People Video Resolutions: Up to 1080p60, 720p, CIF, SIF, 4CIF
-
Content Sharing Resolutions: Up to 1080p
-
Video Inputs: HDMI/VGA, Main Camera
-
Video Outputs: HDMI x2, VGA
-
Audio Inputs: Microphone array (up to 4 daisy-chained), HDMI, 3.5mm line-in
-
Audio Outputs: HDMI x2, 3.5mm line-out
-
Audio Features: AGC, Noise Reduction, Echo Cancellation
Networking & Compatibility
-
Protocols: H.323, SIP, SIP TLS, BFCP, H.239, SRTP, HTTP/S, DHCP
-
Interfaces: RJ45 LAN (10/100/1000 Mbps)
-
Advanced Features: Far-end camera control, Speed dial, SmartFrame, VCLink
Physical & Environmental
-
Dimensions: Codec: 320 x 262.7 x 37.2 mm; Camera: 180 x 144 x 184 mm
-
Weight: 6.99 kg (15.41 lbs)
-
Operating Temp: 0–40°C; Humidity: 20–80%
In the Box
- Main System Unit (Codec)
- eCam PTZ IV Camera
- EVC Microphone Array
- IR Remote Control with Batteries
- Power Supply and Cables
- Quick Guide and Warranty Card
