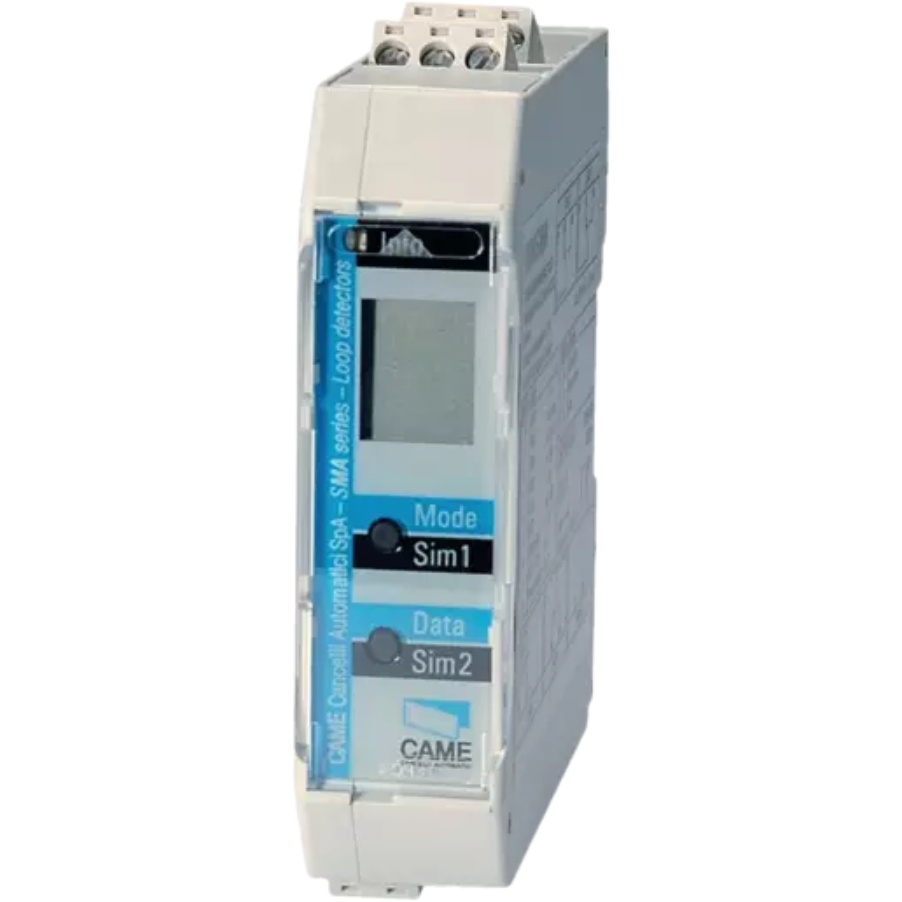

The CAME 009SMA is a professional-grade single-channel magnetic loop detector designed for reliable vehicle detection in access automation systems. With support for 24V AC/DC power, DIN-rail mounting, and high detection accuracy, it’s ideal for gates, barriers, and industrial entrances requiring secure and efficient traffic control.
Key Features
• Single-channel magnetic loop detector for vehicle presence sensing
• Operates with 24V AC or DC power input
• Compact ABS housing with DIN-rail mounting
• Fast detection response with adjustable sensitivity
• Designed for integration with gates, barriers, and access control systems
• Wide operating temperature range for indoor/outdoor use
Specifications
| Specifications |
| Model |
009SMA |
| Power Supply |
24V AC (–20% / +10%, ≤2 VA) or 24V DC (–10% / +20%, ≤1.5 W) |
| Loop Inductance |
20 – 1000 μH (optimal: 80 – 300 μH) |
| Loop Resistance |
Max 8 Ohm (including wiring) |
| Relay Output (Loop) |
≤ 240V AC / 2A or 30V DC / 1A (AC-1) |
| Relay Output (Auxiliary) |
≤ 40V AC/DC / 0.3A |
| Mounting |
DIN-rail |
| Enclosure Material |
ABS plastic |
| Protection Rating |
IP20 |
| Operating Temperature |
–20°C to +60°C |
| Dimensions (W x H x D) |
22.5 × 94 × 88 mm |
In the Box
• CAME 009SMA Magnetic Loop Detector
• Installation Instructions
